$7.95*
% $15.45* (48.55% saved)Available, delivery time: 5-10 business days **

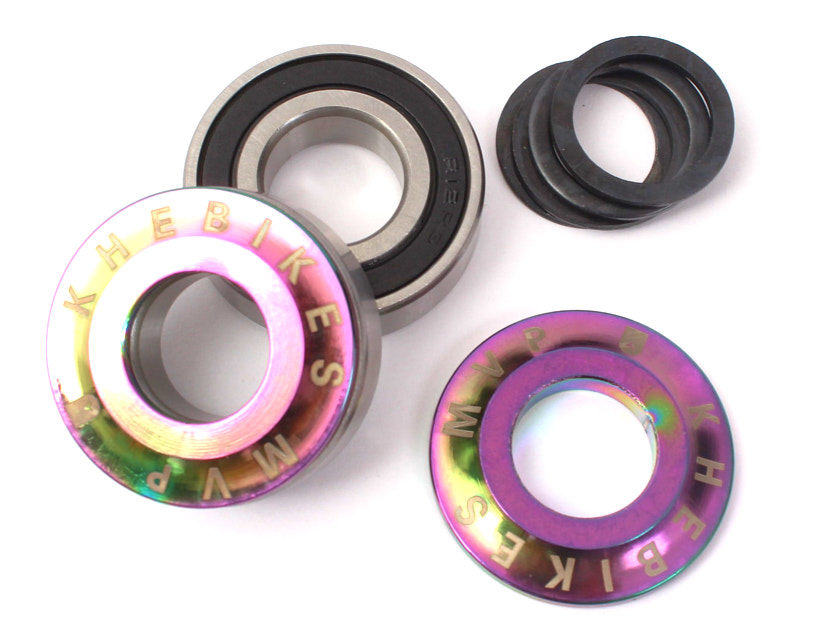

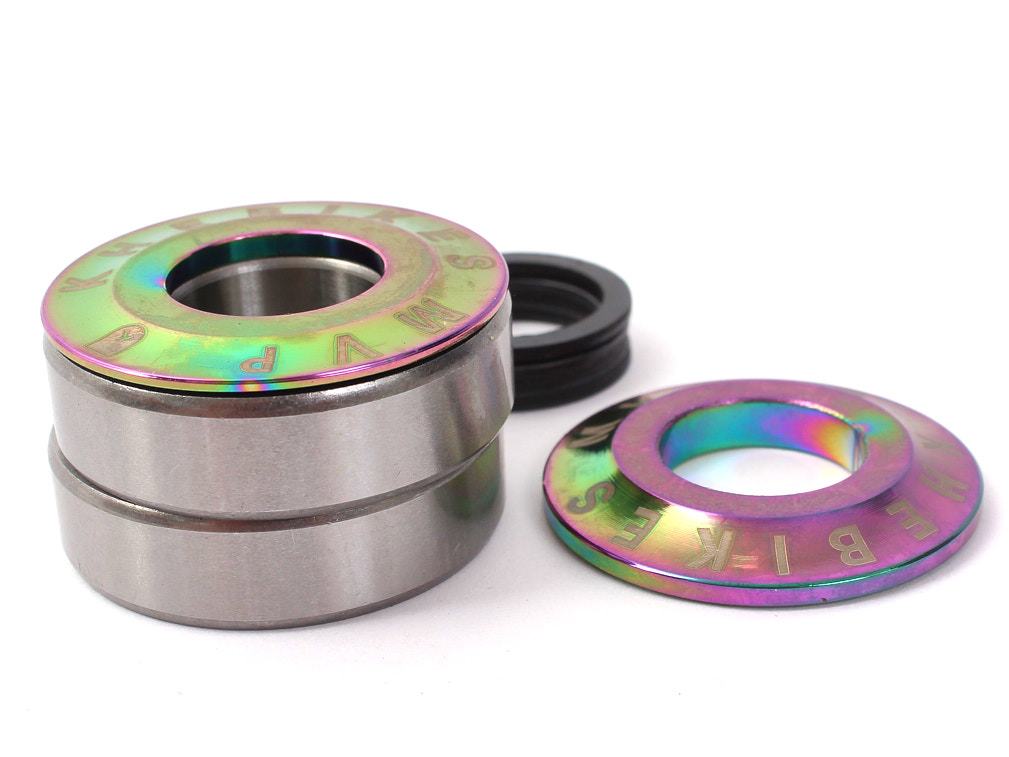

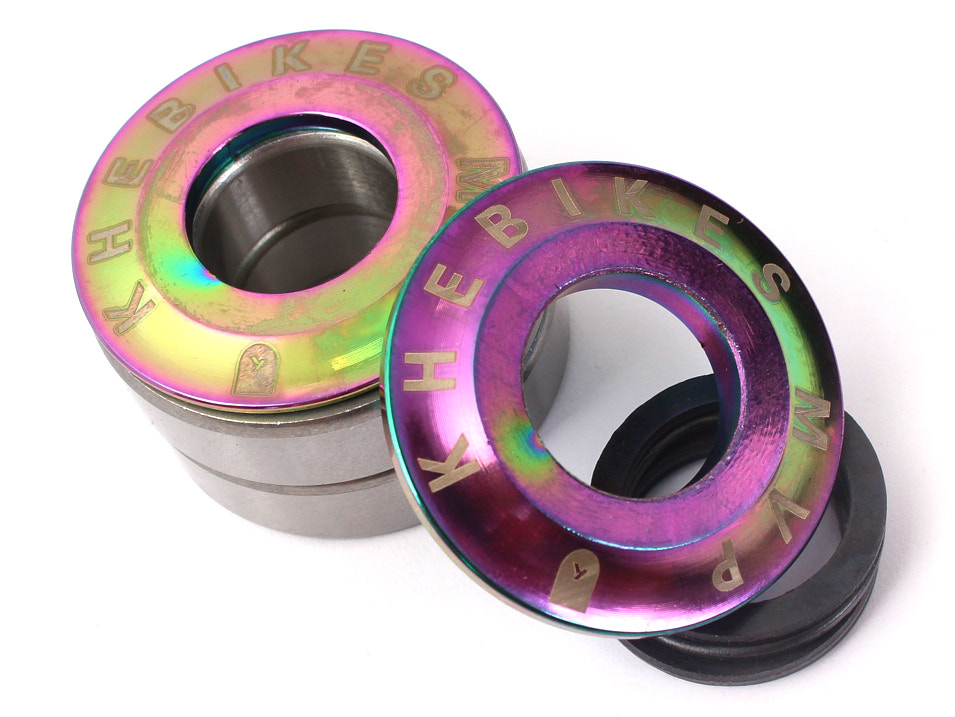

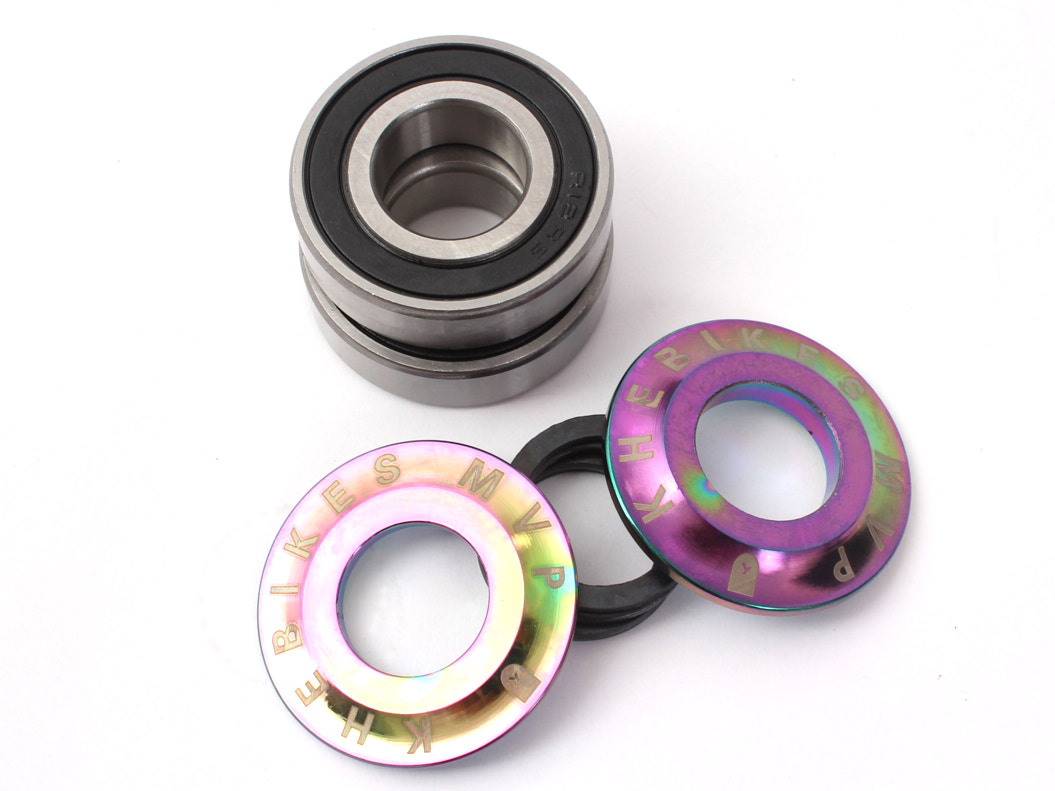

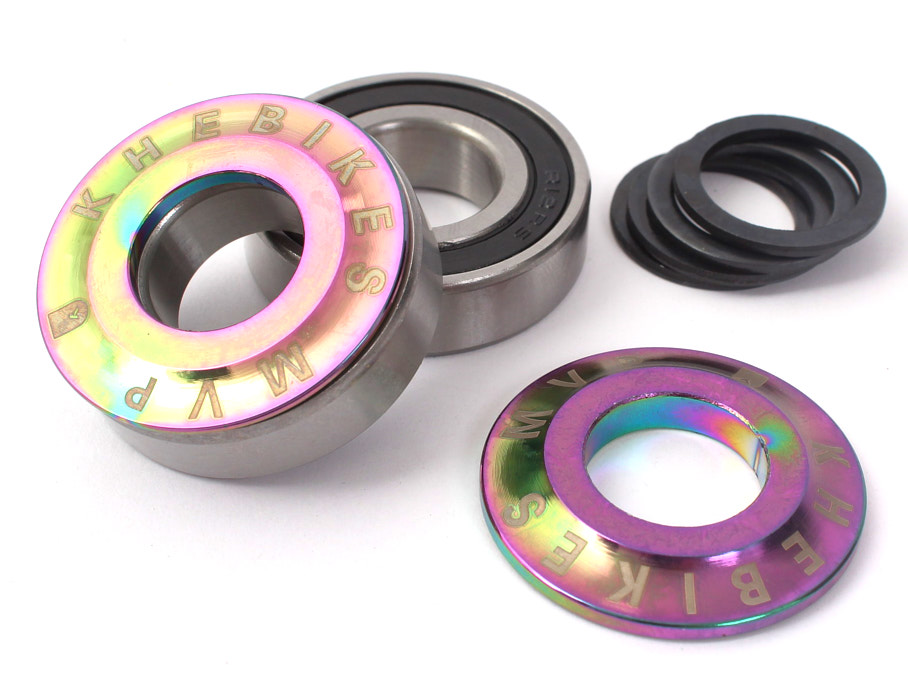

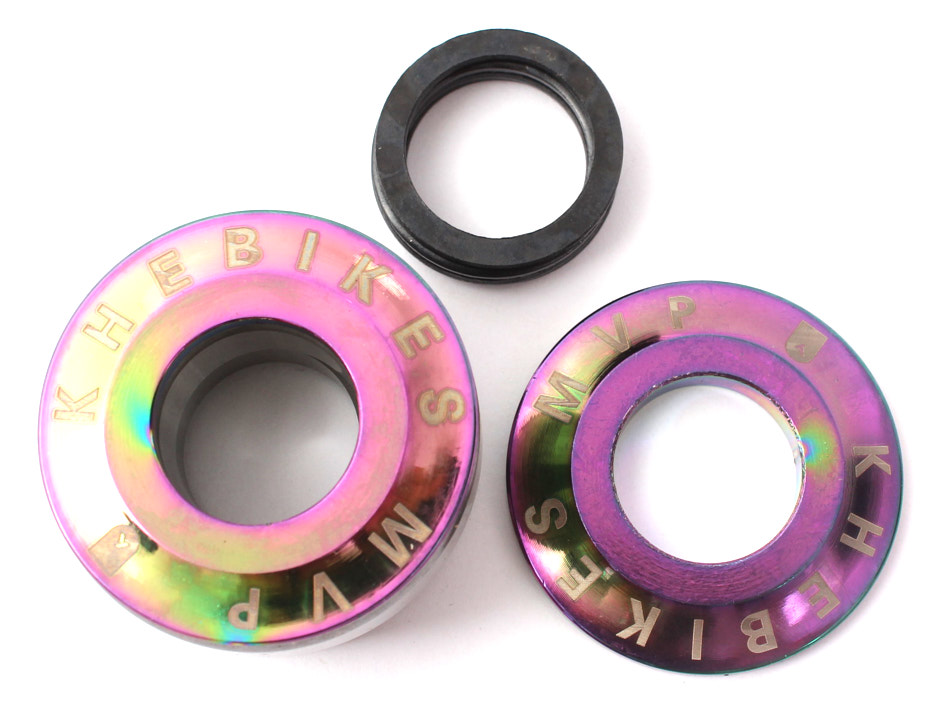

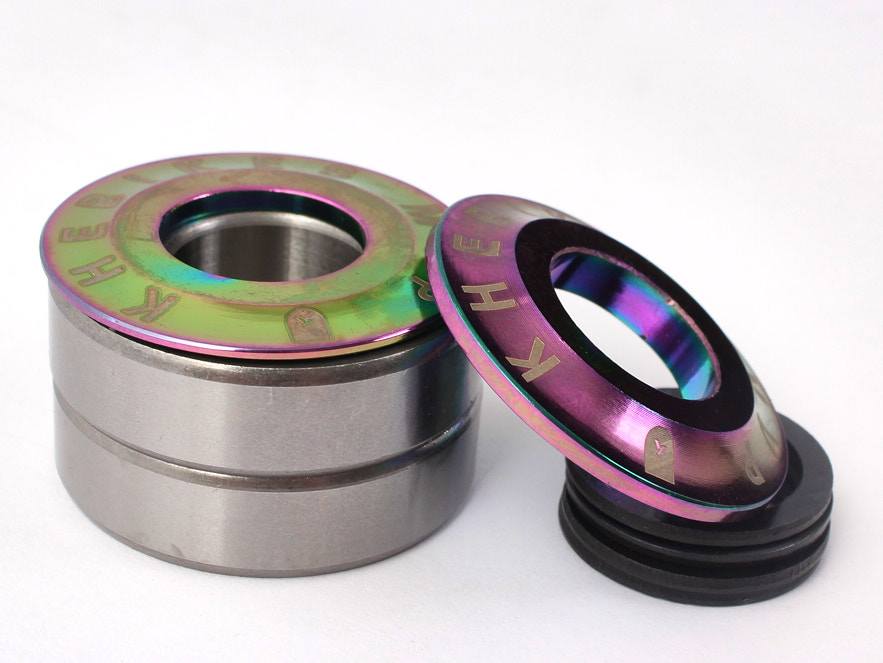

KHE MID Bottom Bracket S/B Oil Slick
This high-quality bottom bracket features precision industrial bearings and protective dust caps. Suitable for all 19mm crank spindles.
Overview of specifications:
- Brand: KHE
- Bearings: Deep groove / industrial bearings
- Spacer included!
- Bearings are sealed and additionally protected by dust caps!
- Maintenance-free and sealed bearings
- Outer bearing diameter: 1.61" (41mm)
- For 0.75" (19mm) crank spindles (both 8T and 48T)
- Total weight: only 0.34 lbs (154g)
- Colour: Oil Slick
| Bottom bracket: | MID BB |
|---|---|
| Material: | Steel |
| Colour: | Oil slick |
| Weight: | 5.43 oz / 154g |
| Width: | 2.56" / 65 mm |
| Height: | 1.77" / 45mm |
| Length: | 2.56" / 65mm |
| Teeth: | 8T, 48T |
Ensure Compatibility:
This bottom bracket is exclusively intended for use on BMX bicycles.
Only use it on bicycles compatible with a three-piece BMX crank.
Installation: Clean the bottom bracket shell and lightly grease the bearings. Carefully insert the bottom bracket into the shell, ensuring it is correctly seated. Tighten the bottom bracket evenly and check its function with a short test ride.
Care and Maintenance:
Regularly grease the bearings to ensure smooth operation.
Inspect periodically for rust and damage.
Replacement in Case of Wear: Replace the bearings immediately if wear, uneven abrasion, cracks, or damage are detected.
