$16.95*
% $18.19* (6.81% saved)Available, delivery time: 5-10 business days **

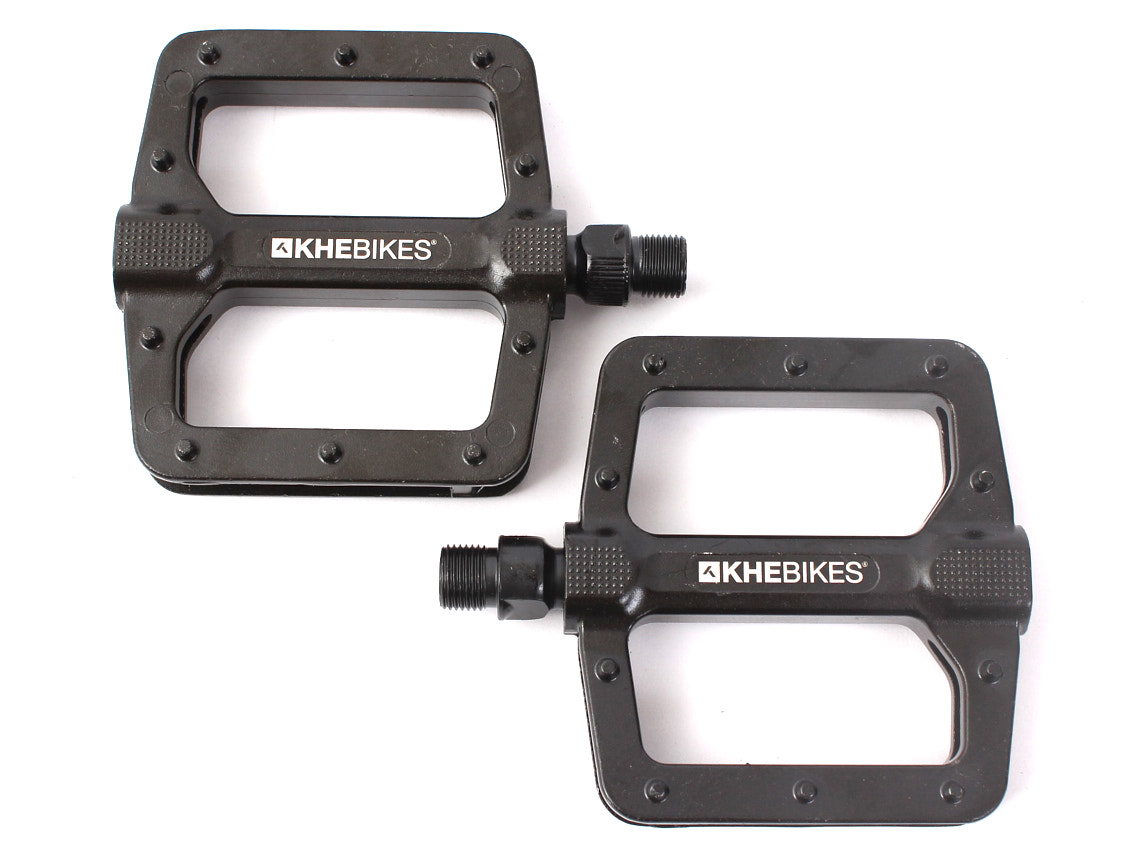

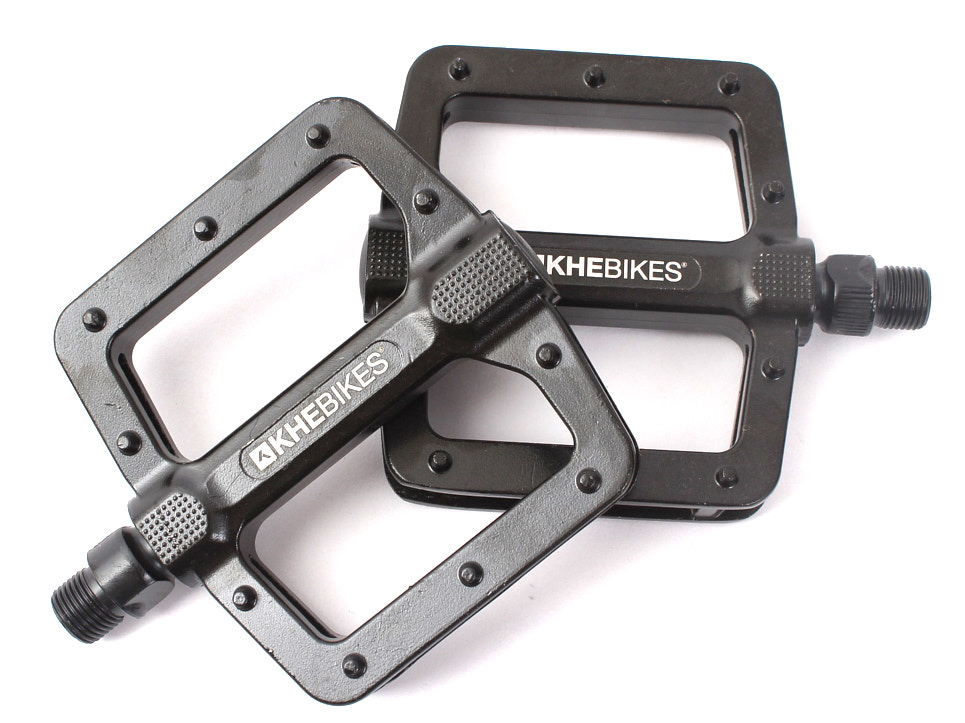

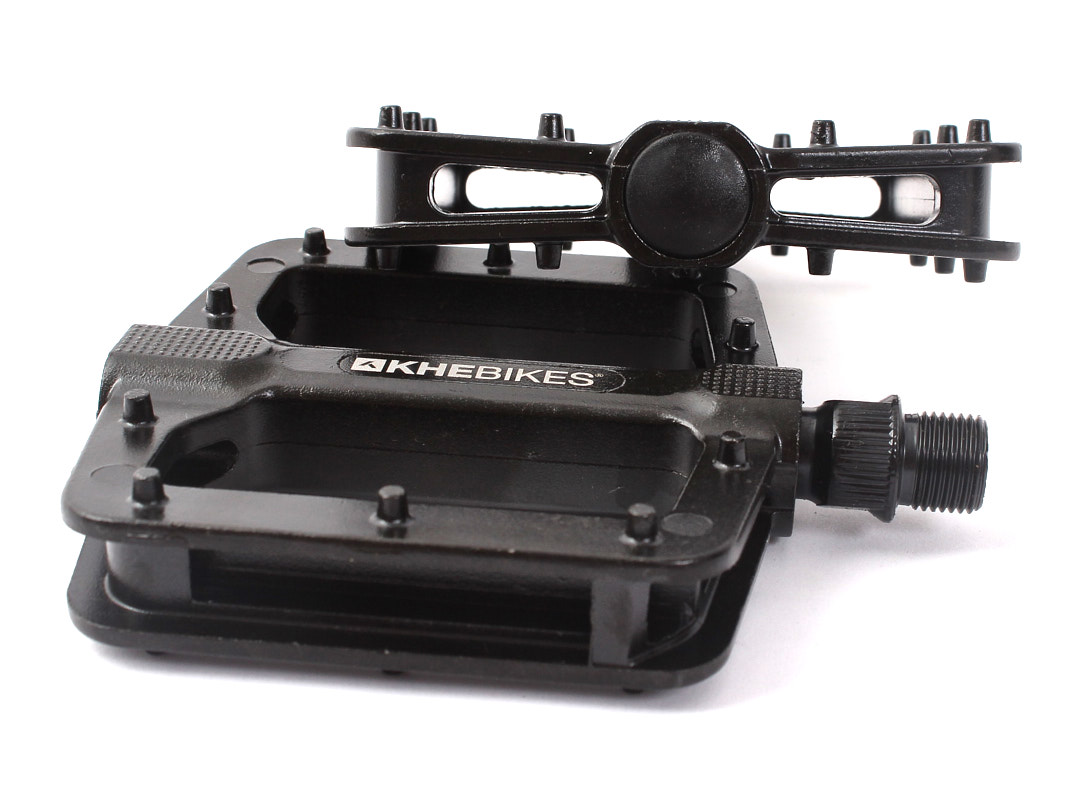

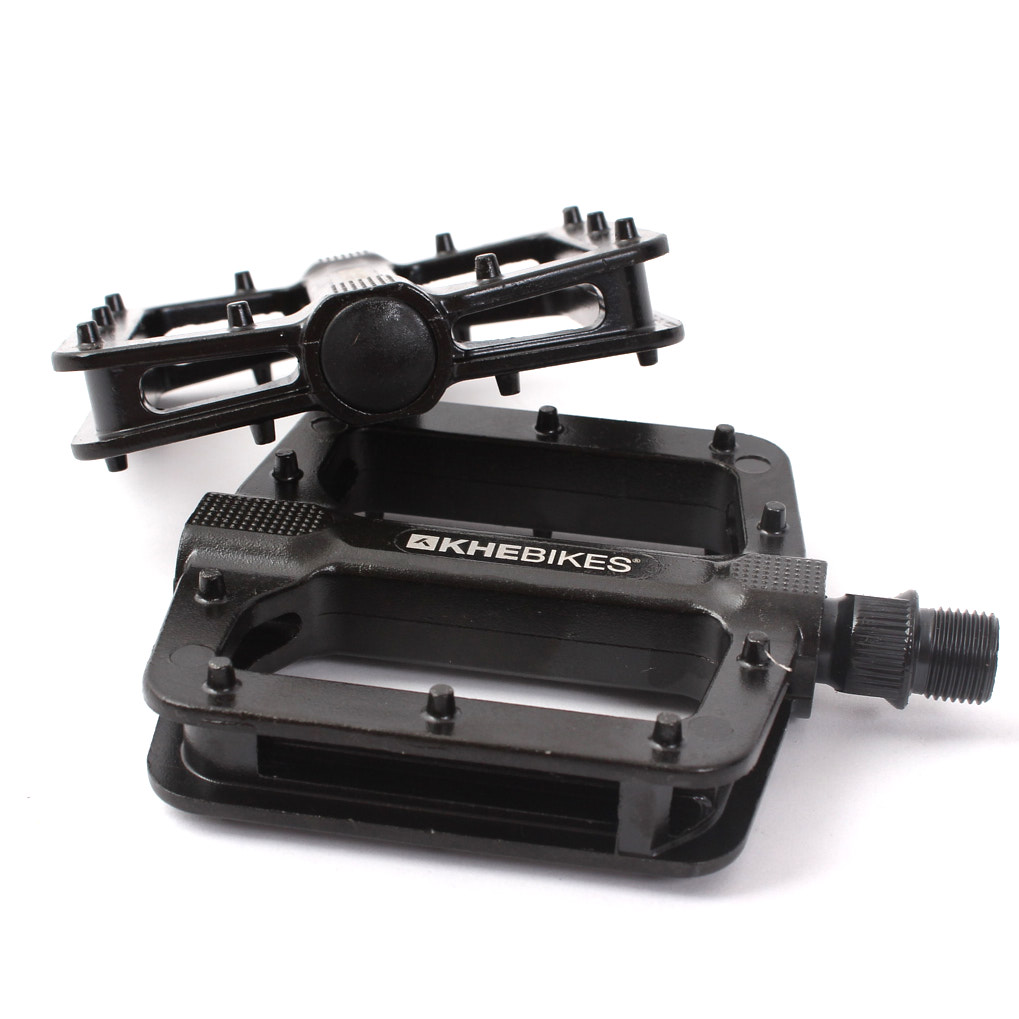

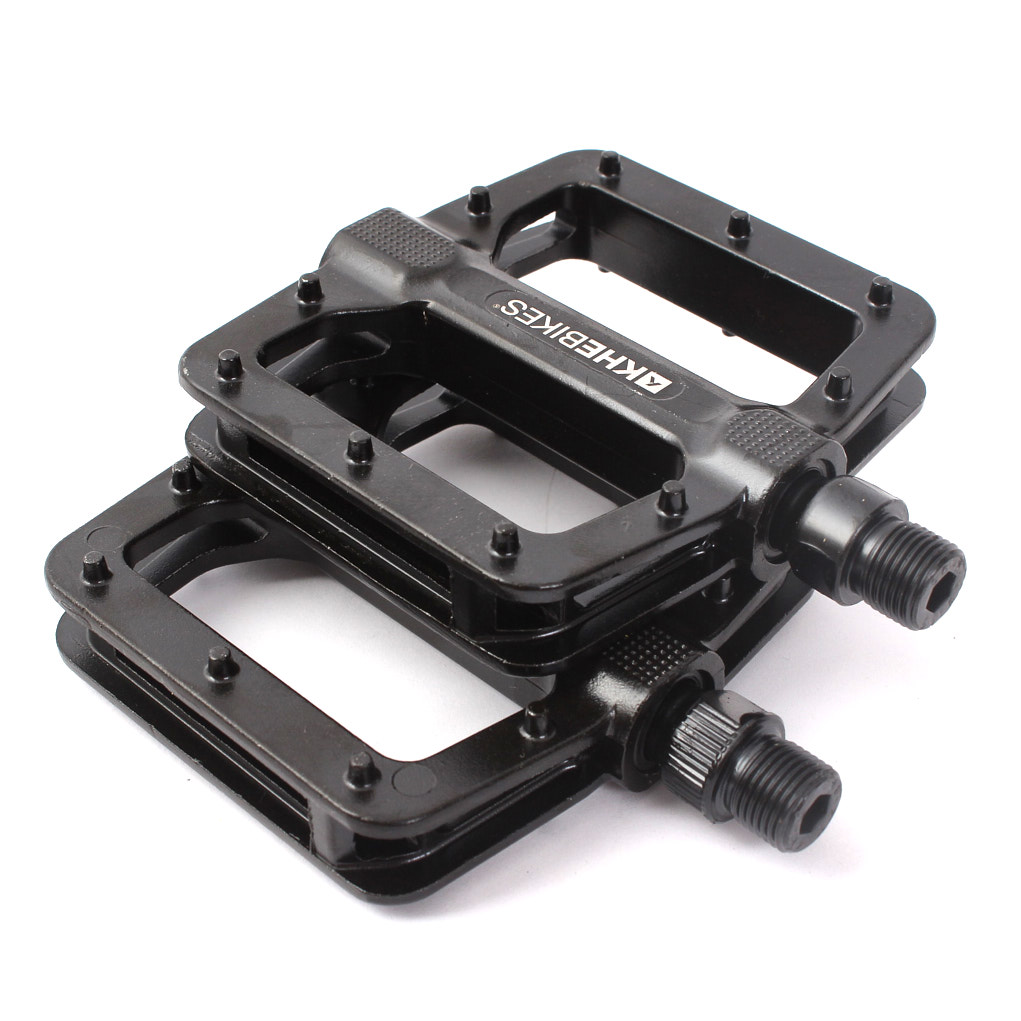

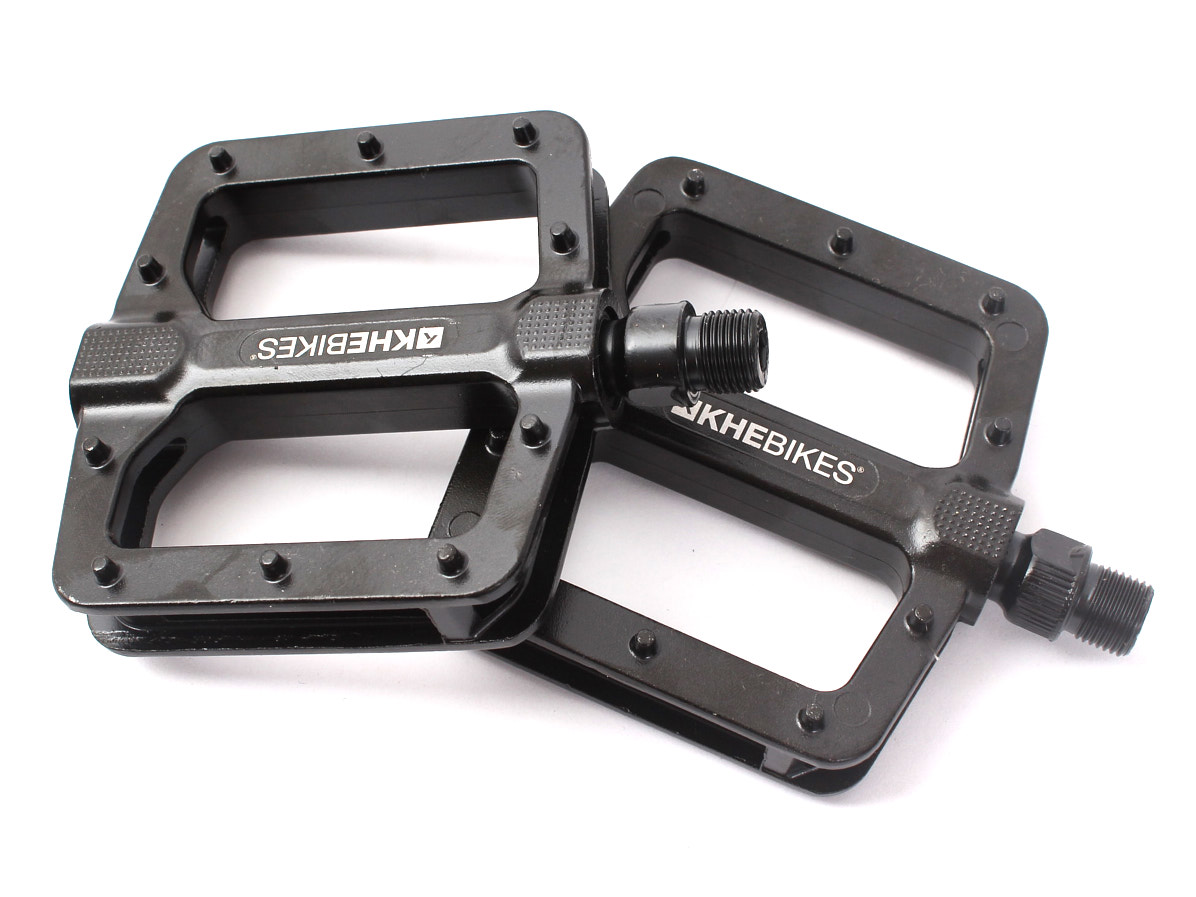

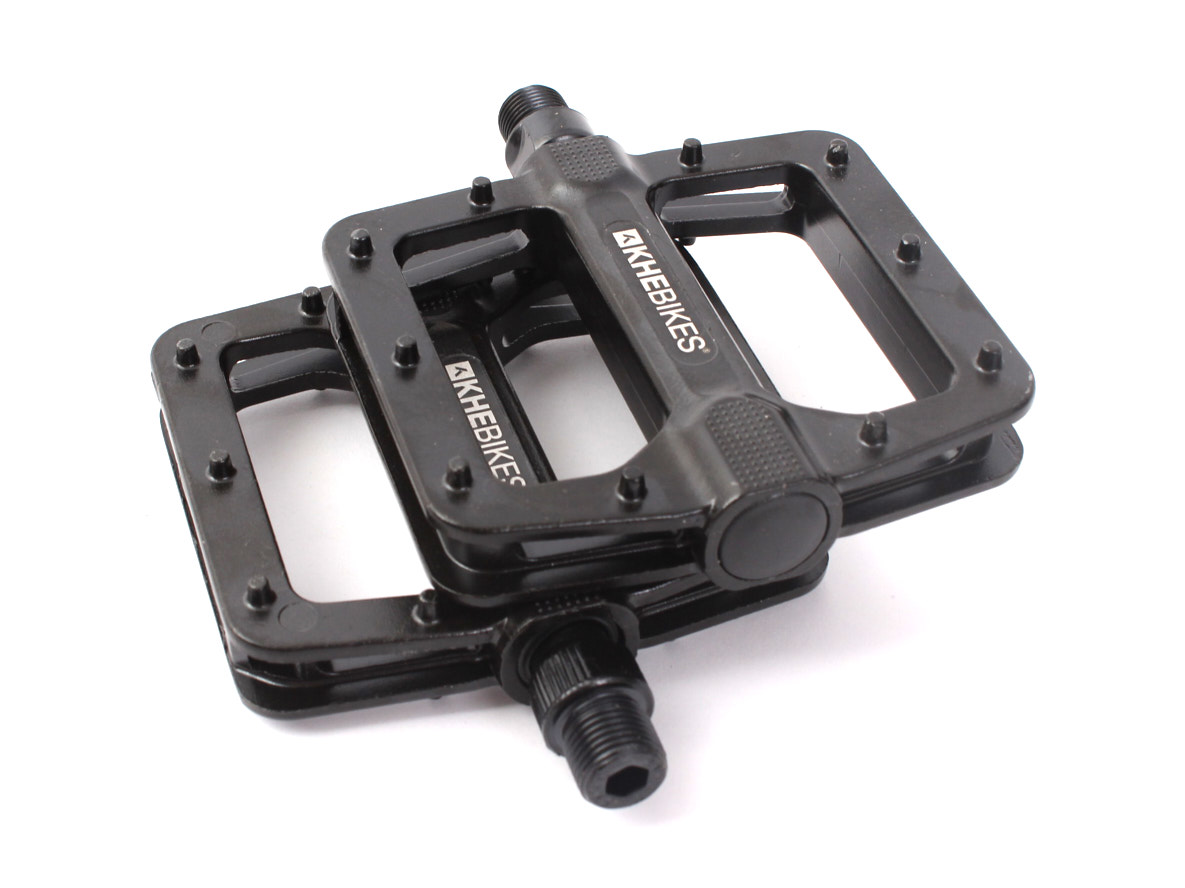

KHE MVP 9/16" Sealed Aluminium Pedals
The KHE MVP aluminium pedals are extremely lightweight thanks to their flat 18mm design. They are equipped with 4130 CrMo axles. The aluminium body makes these pedals very strong, which is especially important for grinds. The pedals can be tightened with a 15mm spanner or a 6mm Allen key.
Specs at a glance:
- Brand: KHE
- Dimensions: 101 x 92mm (3.98" x 3.62")
- Height: 18mm (0.71") – very flat
- Material: 7005 aluminium
- Axle material: 4130 CrMo
- Thread size: 9/16" inch
- Sealed bearings
- Weight: only 440g (0.97 lbs) per pair
- Compatible with 3-piece cranks
- Top product by KHE!
| Material: | 7005 Aluminum |
|---|---|
| Colour: | Black |
| Weight: | 15.52 oz / 440g |
| Axle diameter: | 9/16 Zoll |
| Width: | 3.98" / 101mm |
| Height: | 0.71" / 18mm |
| Length: | 3.62" / 92mm |
Ensure Compatibility:
These aluminum pedals are designed exclusively for use on BMX bicycles. They are not suitable for other bicycle types or mechanical applications.
Installation: The pedals are marked with a left-hand thread (L) and a right-hand thread (R). Install each pedal on the corresponding side of the bicycle. Tighten the pedals using a torque wrench: 35–40 Nm. Apply a small amount of lubricant to the threads and check after installation that the pedals rotate freely without resistance.
Care and Maintenance:
Clean the pedals regularly with a damp cloth to remove dirt, mud, or dust that may affect their performance.
Inspect the pedal bearings and axle regularly for play or wear. If necessary, lubricate the bearings with suitable grease.
Replace When Worn: Replace the pedals immediately if you notice wear, uneven degradation, cracks, or damage.
