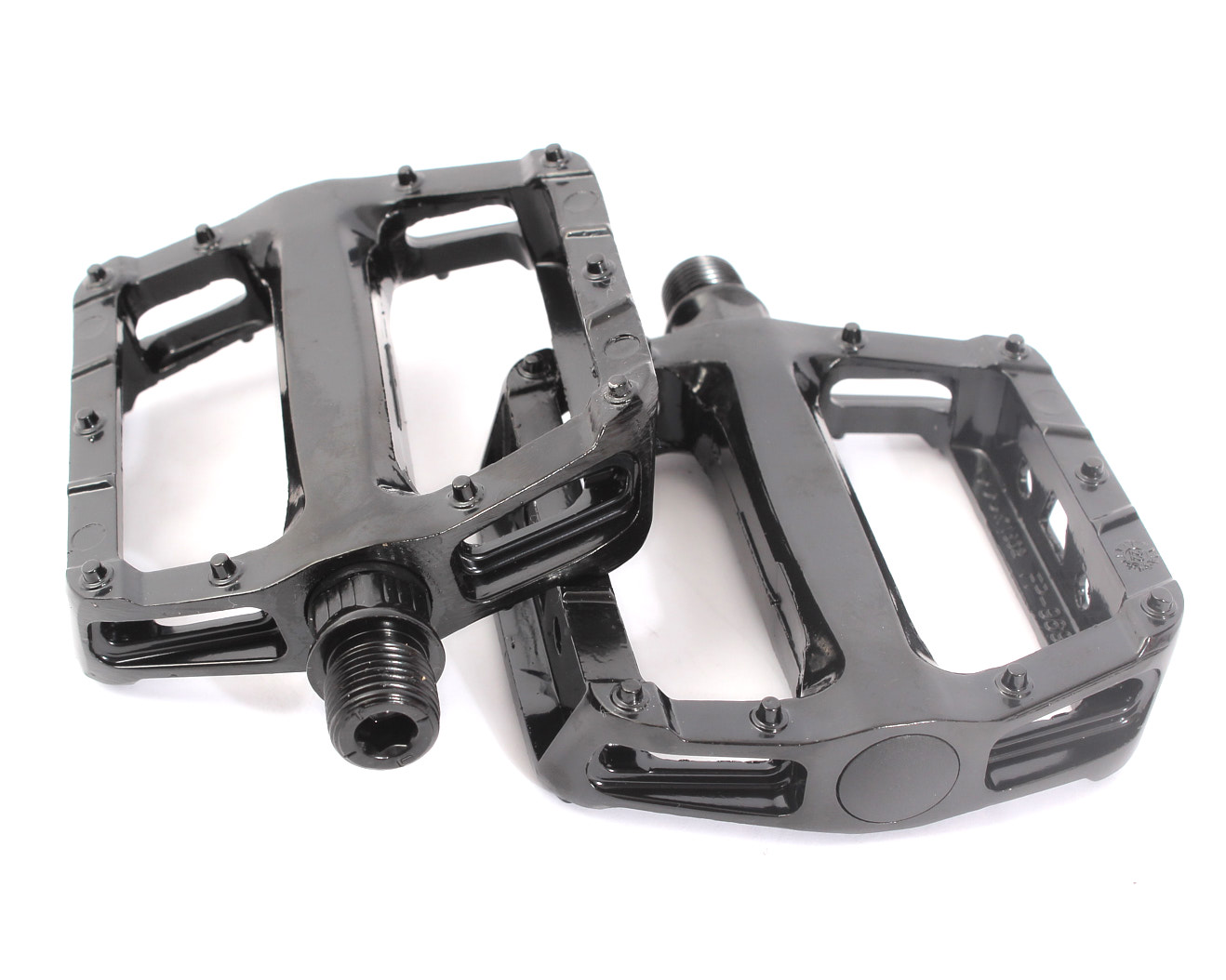

KHE MVP 9/16" Sealed Aluminium Pedals
The KHE MVP aluminium pedals are very lightweight thanks to their flat 0.71 inch (18mm) design. They are built with 4130 CrMo axles. The aluminium body makes them extremely strong, which is essential for grinds. The pedals can be installed with a 15mm spanner or a 6mm Allen key.
Overview of features:
- Brand: KHE
- Size: 3.98 x 3.62 inch (101 x 92mm)
- Height: 0.71 inch (18mm – very flat)
- Material: 7005 aluminium
- Axle material: 4130 CrMo
- Thread size: 9/16"
- Sealed bearings
- Weight: only 0.97 lbs (pair)
- Compatible with 3-piece cranks
- Top product by KHE!
| Material: | 7005 Aluminum |
|---|---|
| Colour: | Black |
| Axle diameter: | 9/16 Zoll |
| Width: | 3.54" / 90mm |
| Length: | 3.31" / 84mm |
| Pedal bearing: | Polymer plain bearing |
Ensure Compatibility:
These aluminum pedals are designed exclusively for use on BMX bicycles. They are not suitable for other bicycle types or mechanical applications.
Installation: The pedals are marked with a left-hand thread (L) and a right-hand thread (R). Install each pedal on the corresponding side of the bicycle. Tighten the pedals using a torque wrench: 35–40 Nm. Apply a small amount of lubricant to the threads and check after installation that the pedals rotate freely without resistance.
Care and Maintenance:
Clean the pedals regularly with a damp cloth to remove dirt, mud, or dust that may affect their performance.
Inspect the pedal bearings and axle regularly for play or wear. If necessary, lubricate the bearings with suitable grease.
Replace When Worn: Replace the pedals immediately if you notice wear, uneven degradation, cracks, or damage.
