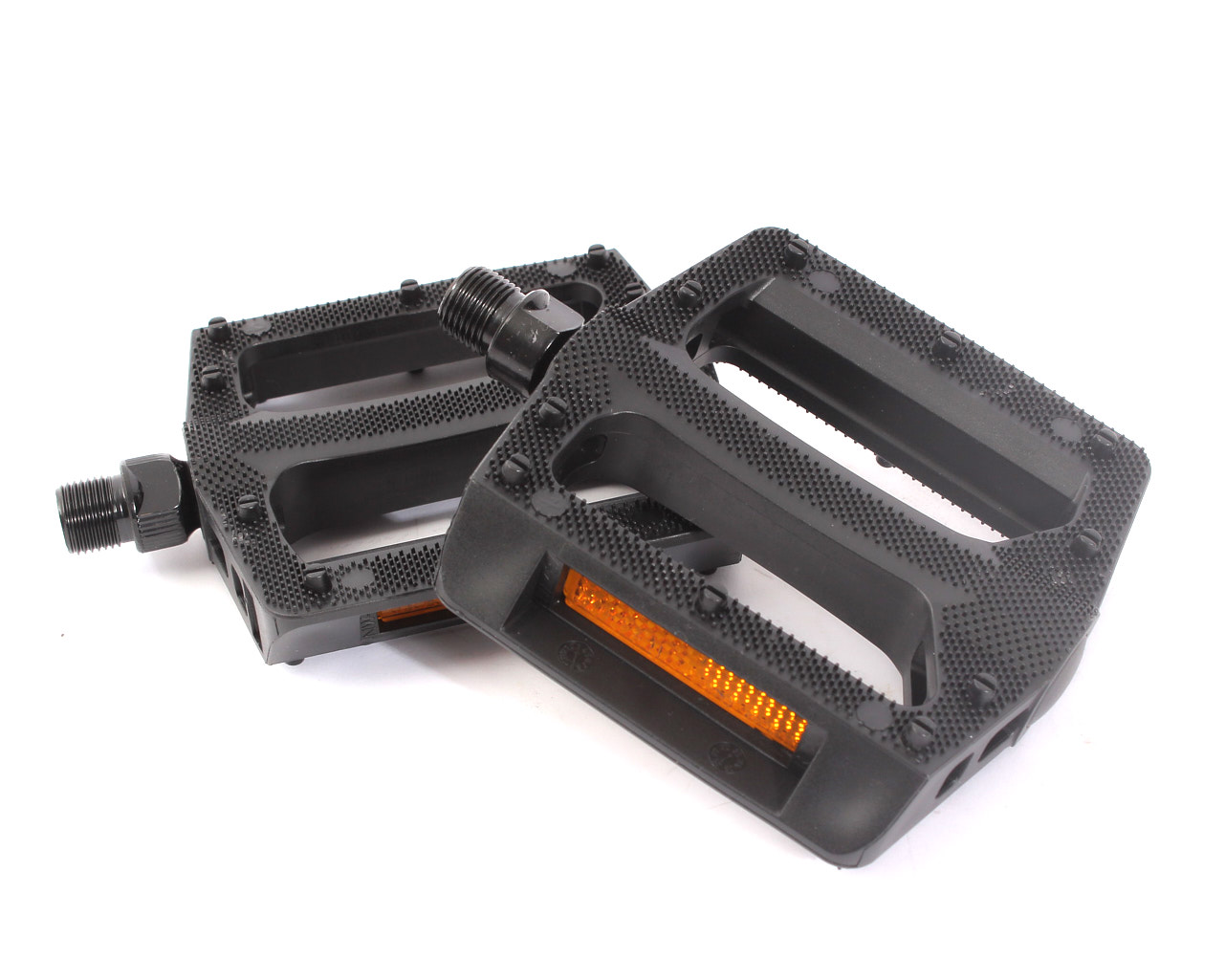

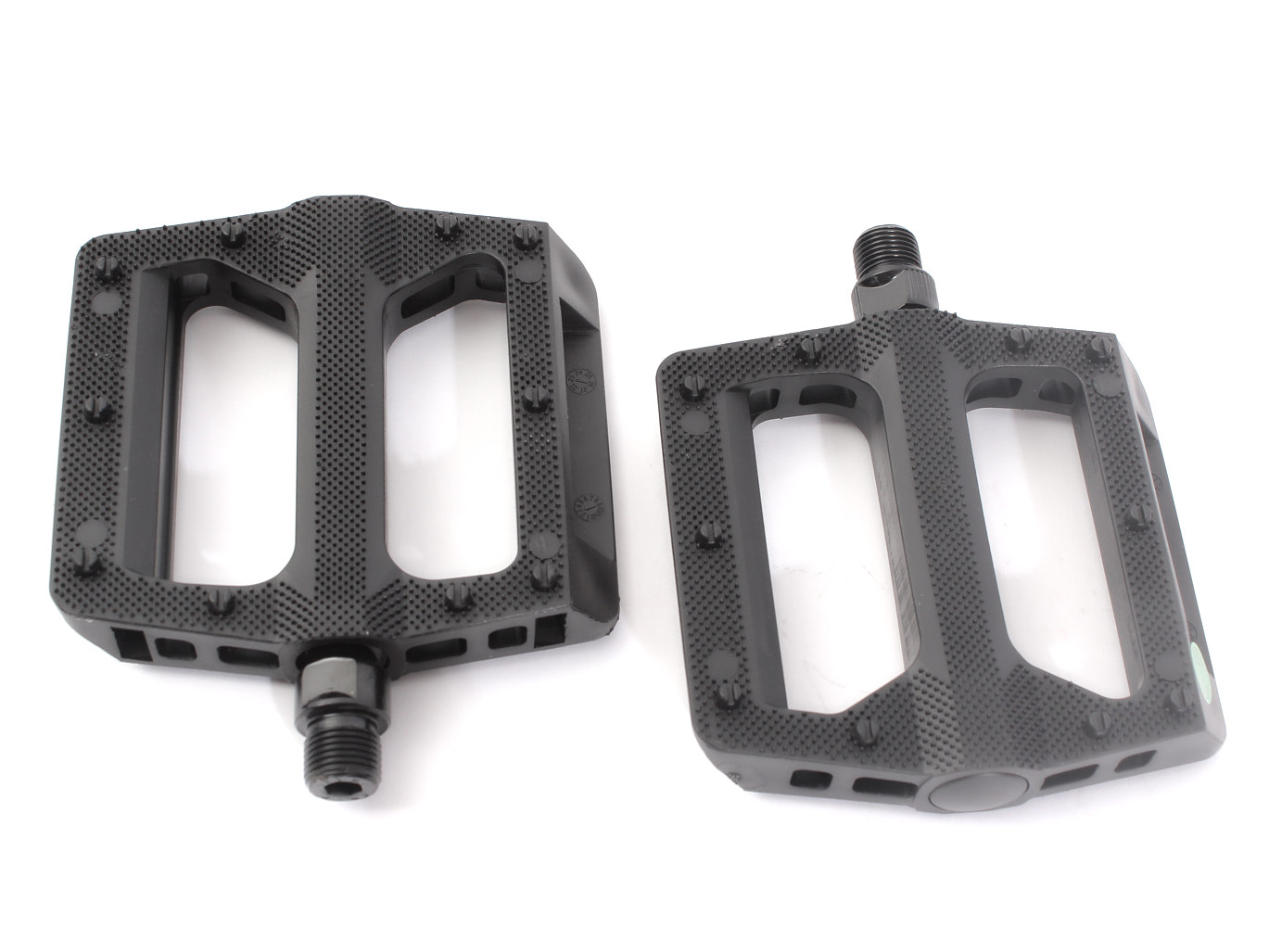

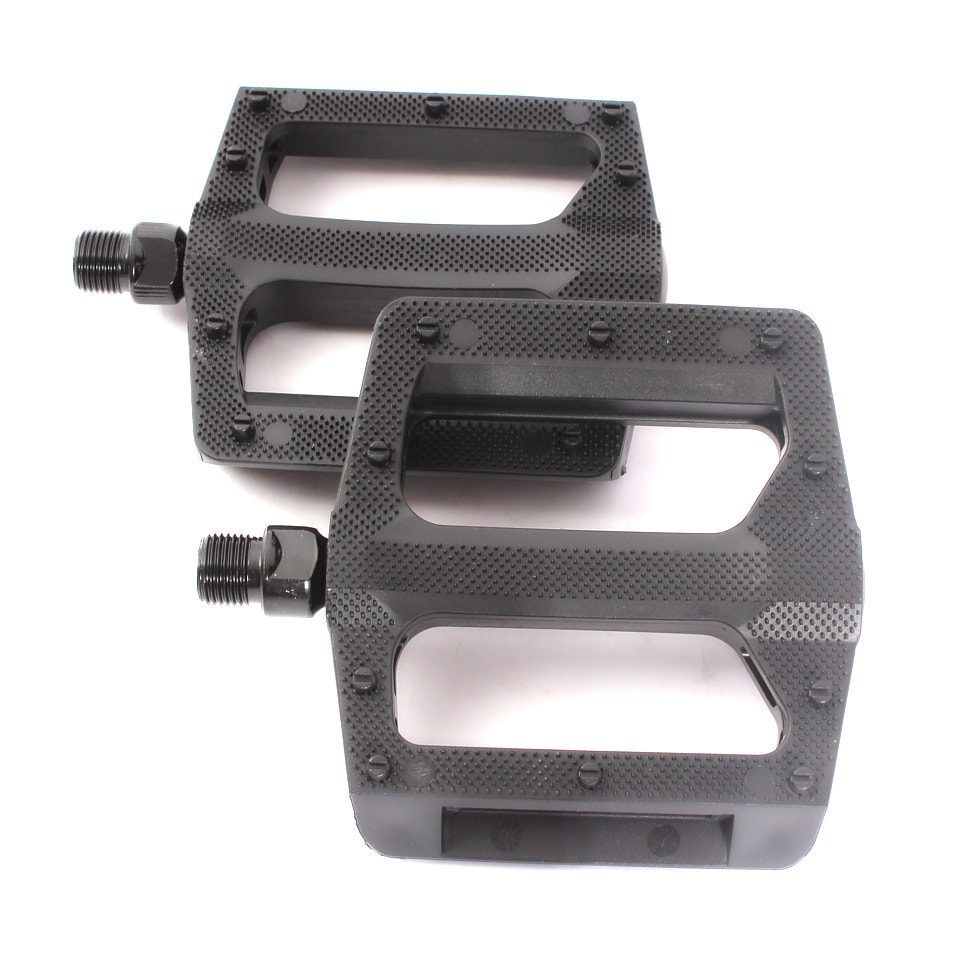

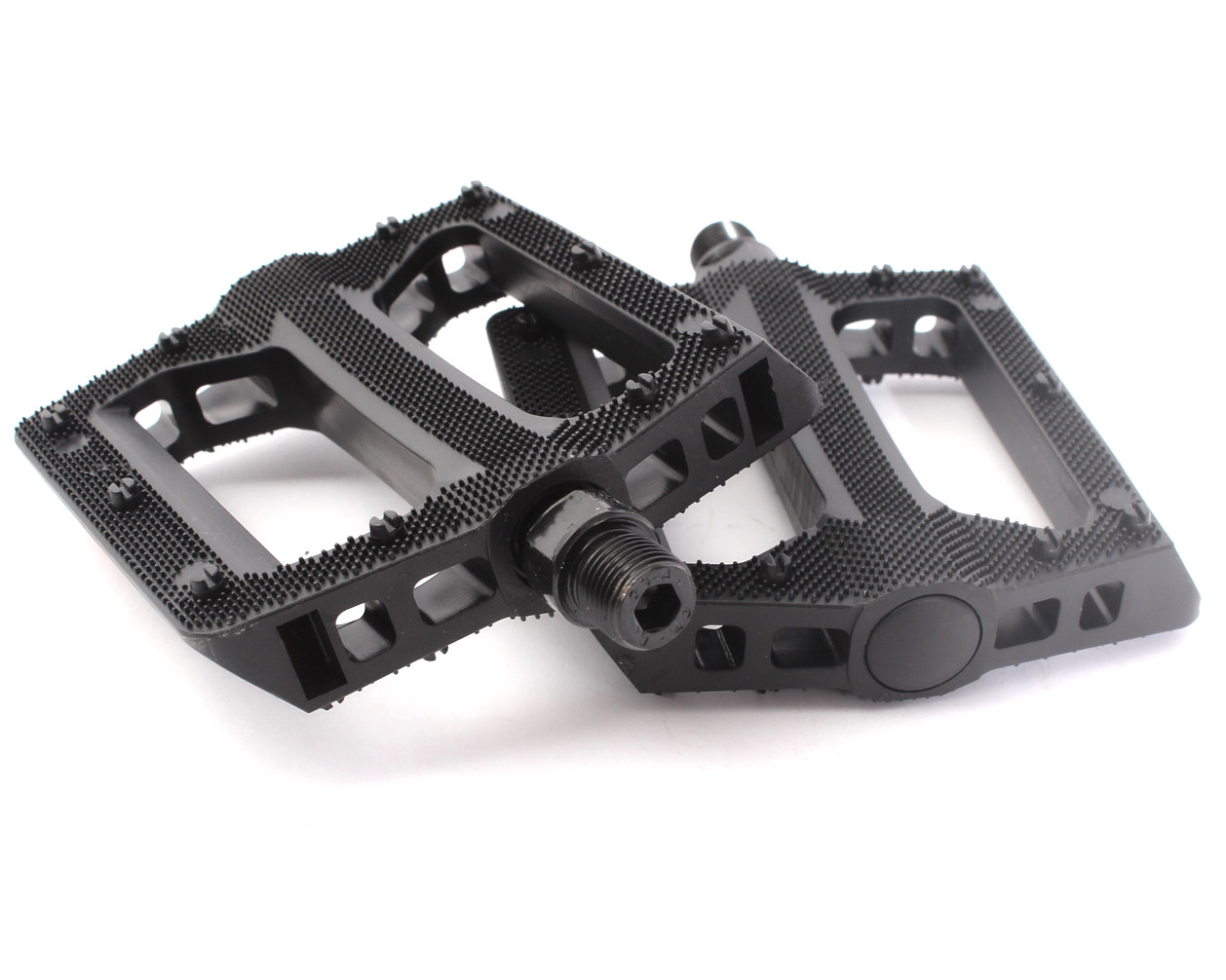

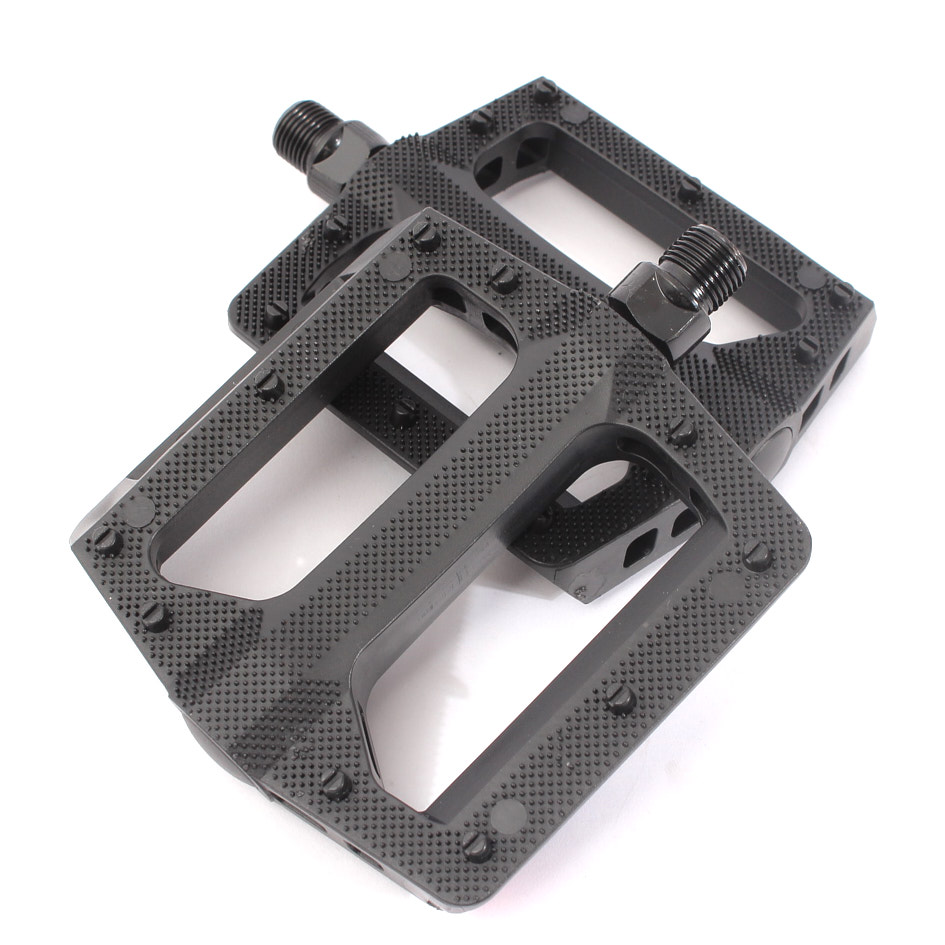

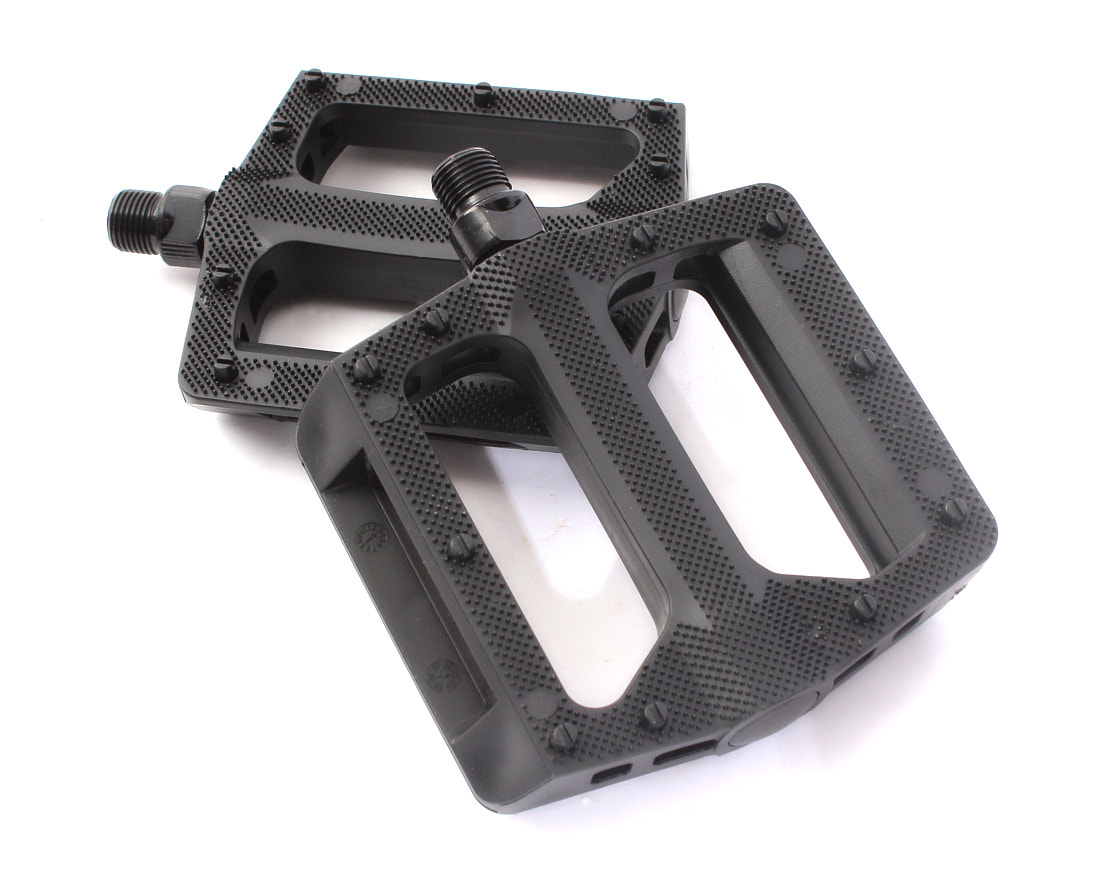

High-quality KHE PRISM PVC pedals with 9/16" inch thread
Pedals with 9/16" thread are generally for 3-piece cranks. The axle has a diameter of 14.3mm.
- axle: 9/16" inch CrMo steel
- Suitable for 3-piece cranks
- Large platform
- Very good grip due to many pins
- Bearing: loose ball
- With reflectors
| Axle diameter: | 9/16 Zoll |
|---|---|
| Colour: | Black |
| Length: | 4.13" / 105mm |
| Material: | PVC, plastic |
| Weight: | 10.93 oz / 310g |
| Width: | 3.98" / 101mm |
Ensure Compatibility:
These PVC pedals are designed exclusively for use on BMX bicycles. They are not suitable for other bicycle types or mechanical applications.
Installation: The pedals are marked with a left-hand thread (L) and a right-hand thread (R). Install each pedal on the corresponding side of the bicycle. Tighten the pedals using a torque wrench: 35–40 Nm. Apply a small amount of lubricant to the threads and check after installation that the pedals rotate freely without resistance.
Care and Maintenance:
Clean the pedals regularly with a damp cloth to remove dirt, mud, or dust that may affect their performance.
Inspect the pedal bearings and axle regularly for play or wear. If necessary, lubricate the bearings with suitable grease.
Replace When Worn: Replace the pedals immediately if you notice wear, uneven degradation, cracks, or damage.
