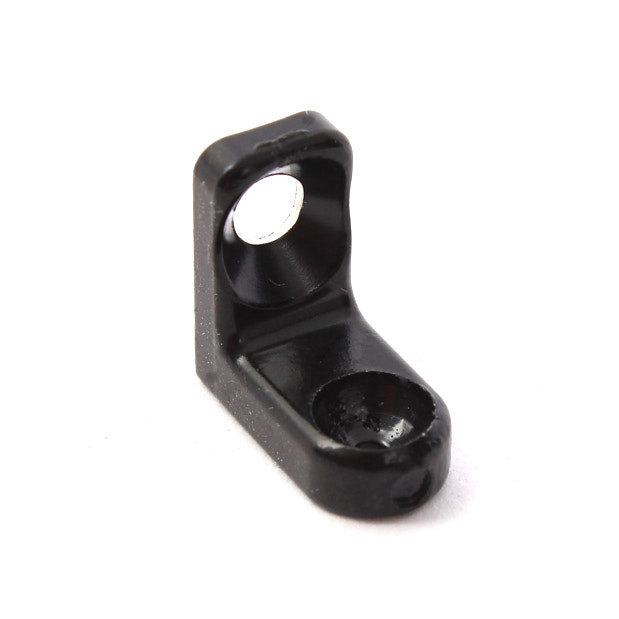

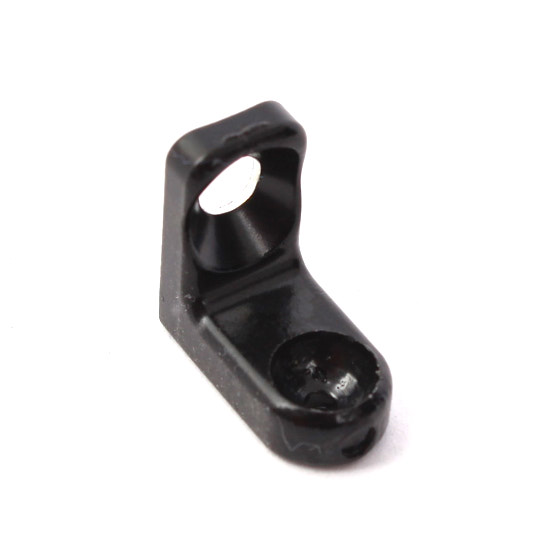

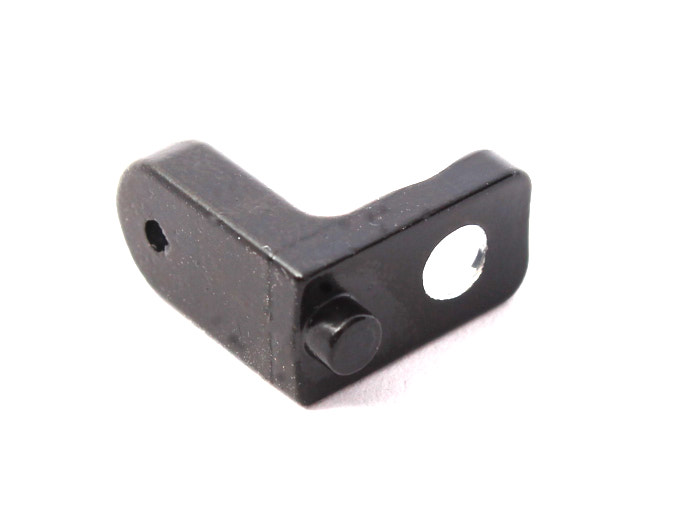

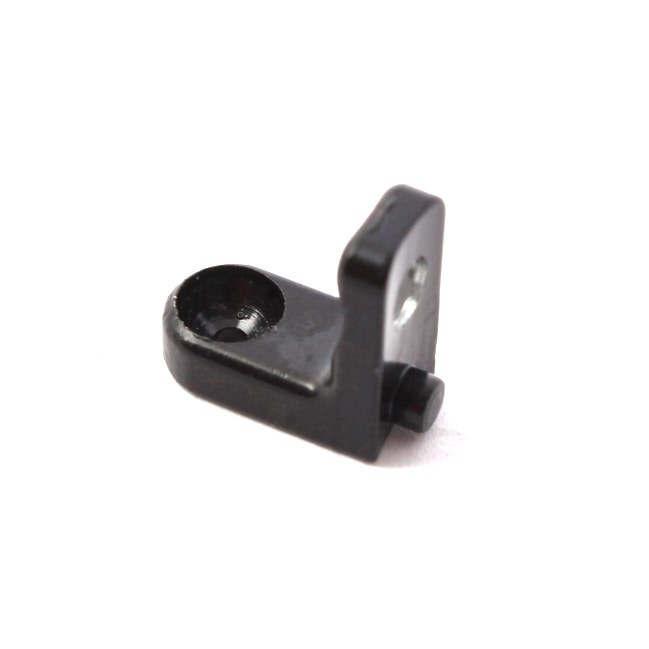

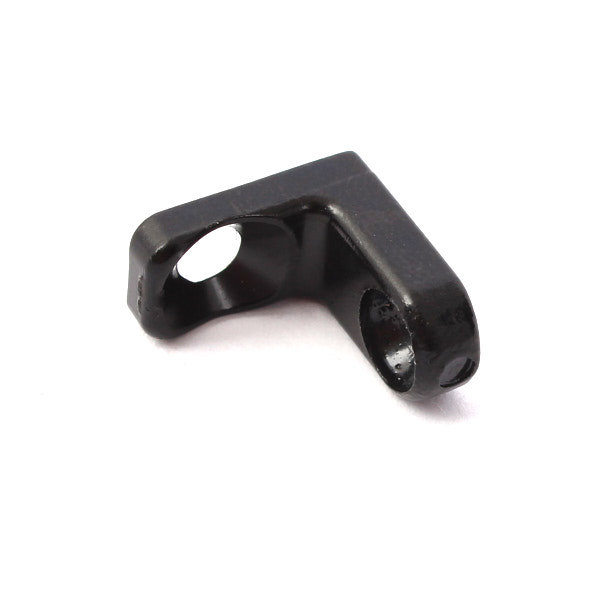

KHE Affix Rotor Tab long (Angle)
This tab (angle) made of 7005 aluminum is screwed against the Affix aluminum rotor.
ATTENTION: The tab is longer and is only installed on aluminum frames. The wall thickness of aluminum is thicker, so a longer angle is needed. This currently includes the KHE models Ravisher, Black Jack and Barcode LL.
- Important: Tab only lightly screwed to the rotor ring!
| Colour: | Black |
|---|---|
| Diameter: | none |
| Height: | 0.35" / 9mm |
| Length: | 0.71 " / 18 mm |
| Material: | 7005 Aluminum |
| Weight: | 0.18 oz / 5g |
| Width: | 0.59" / 15 mm |
Product Safety Instructions for BMX Long Rotor Tab KHE AFFIX:
Compatibility: The tab is specifically designed for the Affix system and should only be used with it to ensure safe functionality.
Positioning: The tab is placed in the designated position on the frame.
Regular Inspection: Since BMX bikes and especially rotor systems are often subjected to stress, the tab must be regularly checked for a secure fit.
Keep Clean: Keep the tab and rotor area clean to ensure smooth operation.
