$7.95*
Available, delivery time: 5-10 business days **

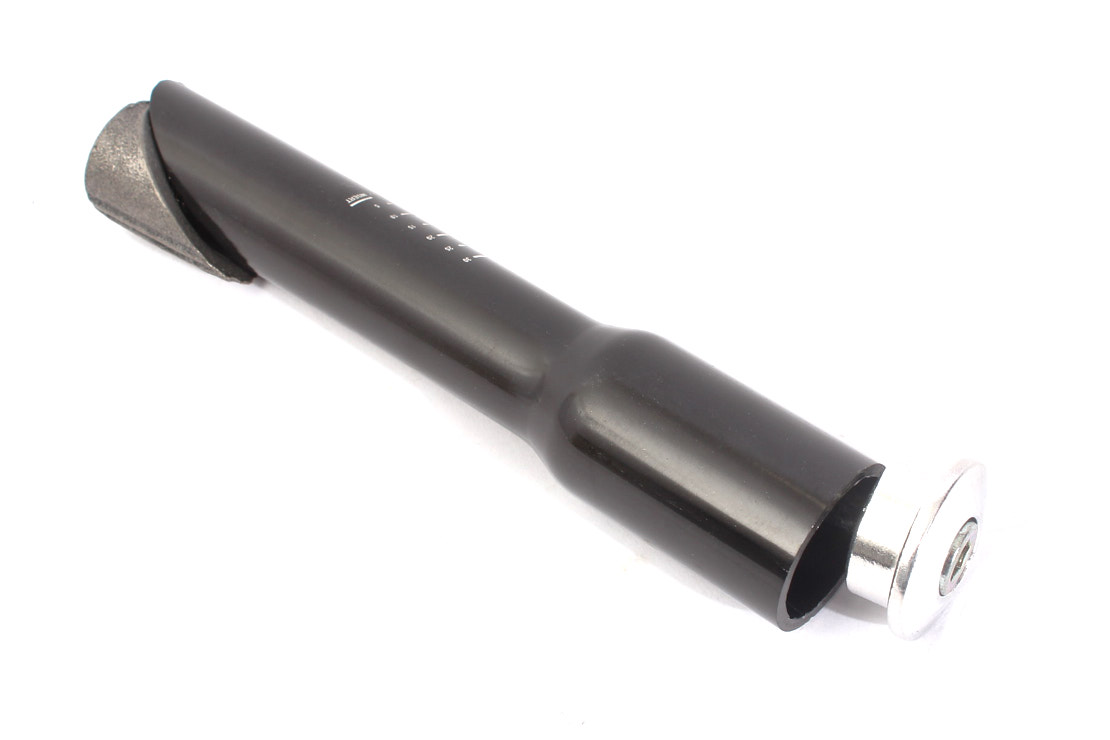

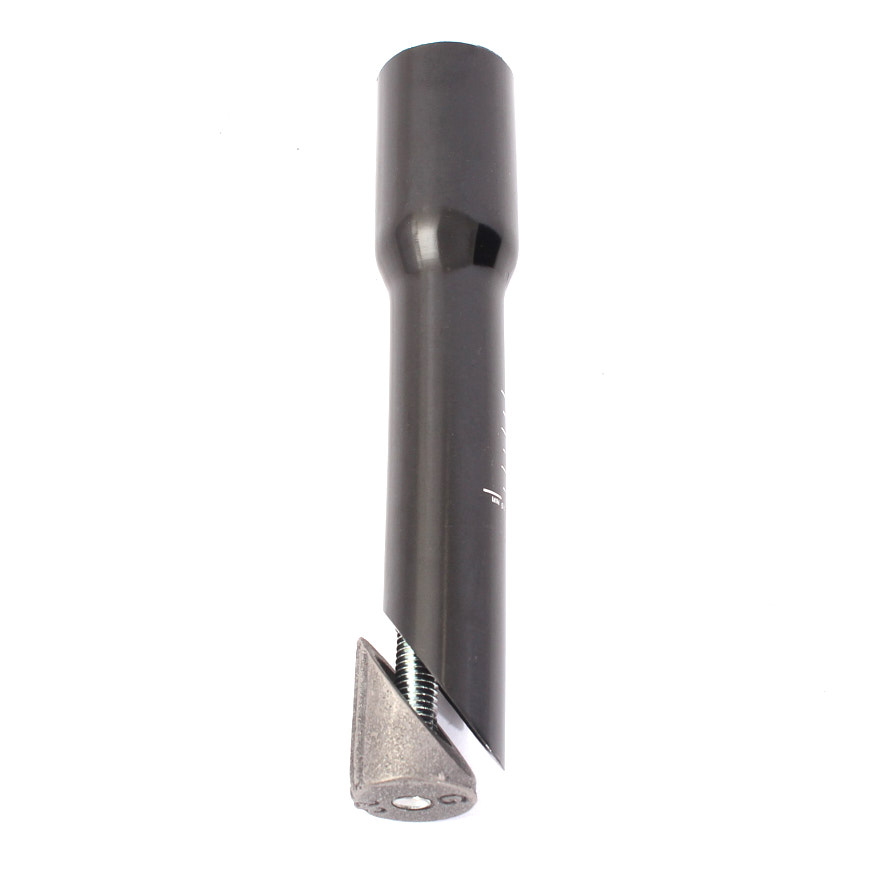

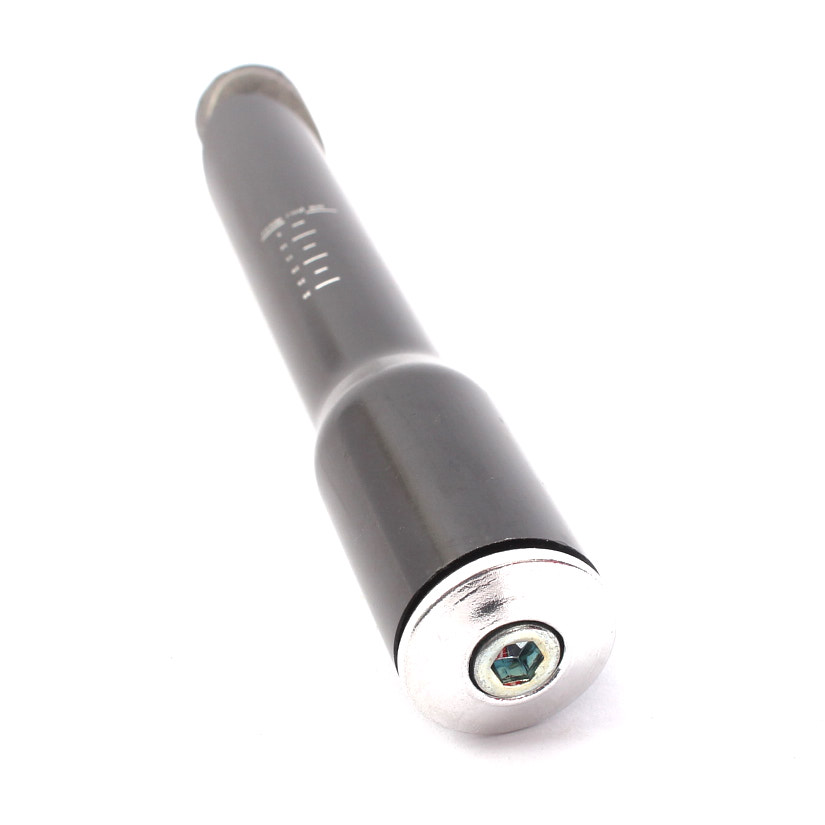

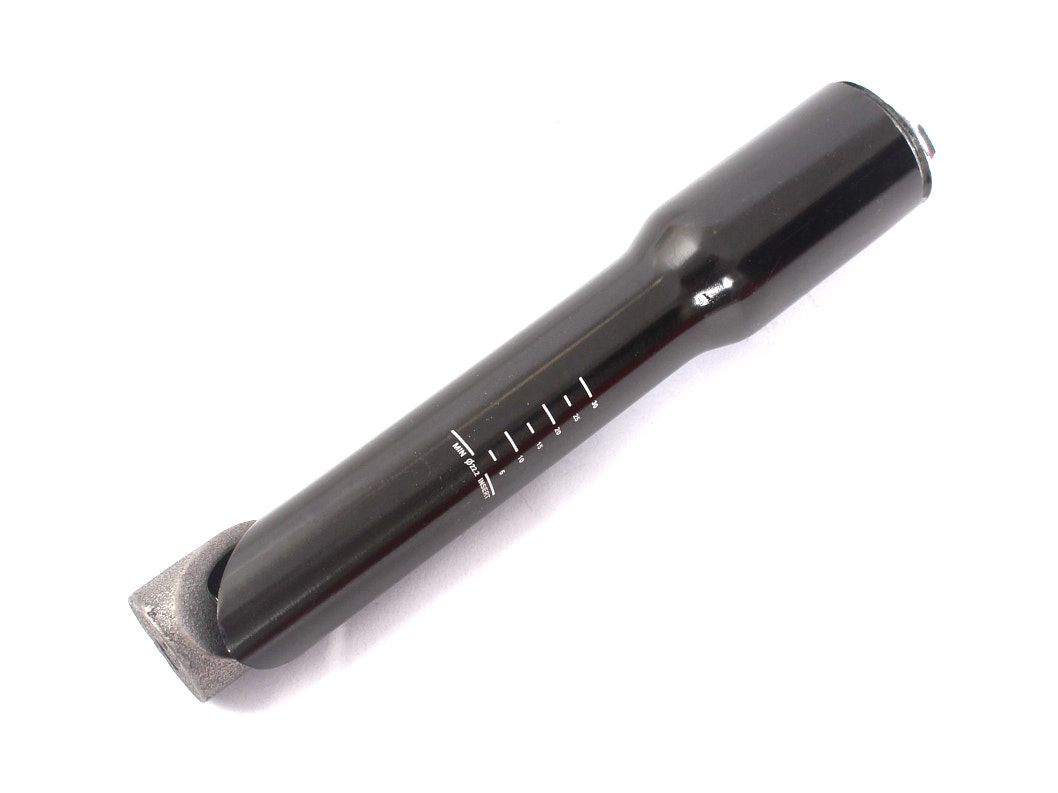

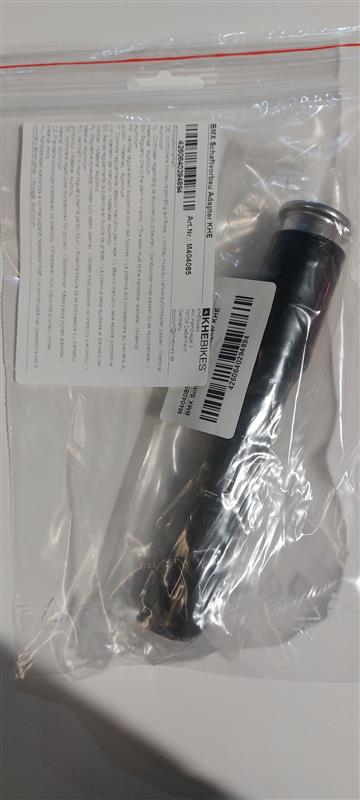

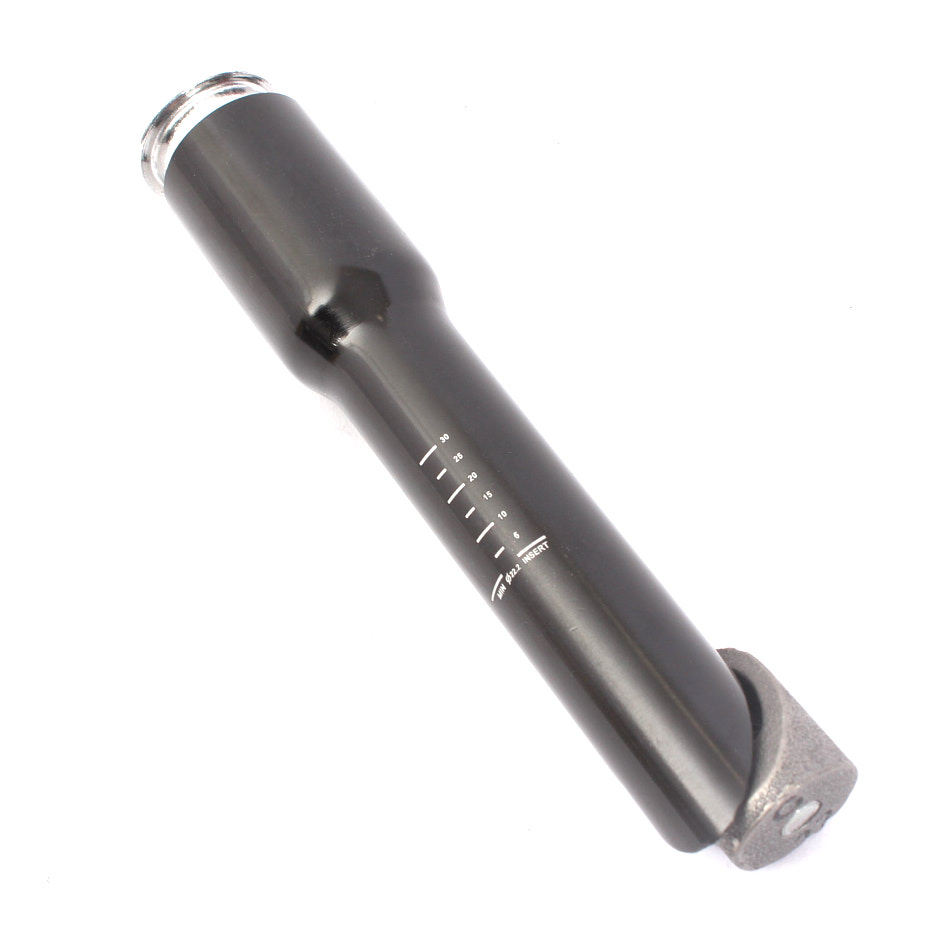

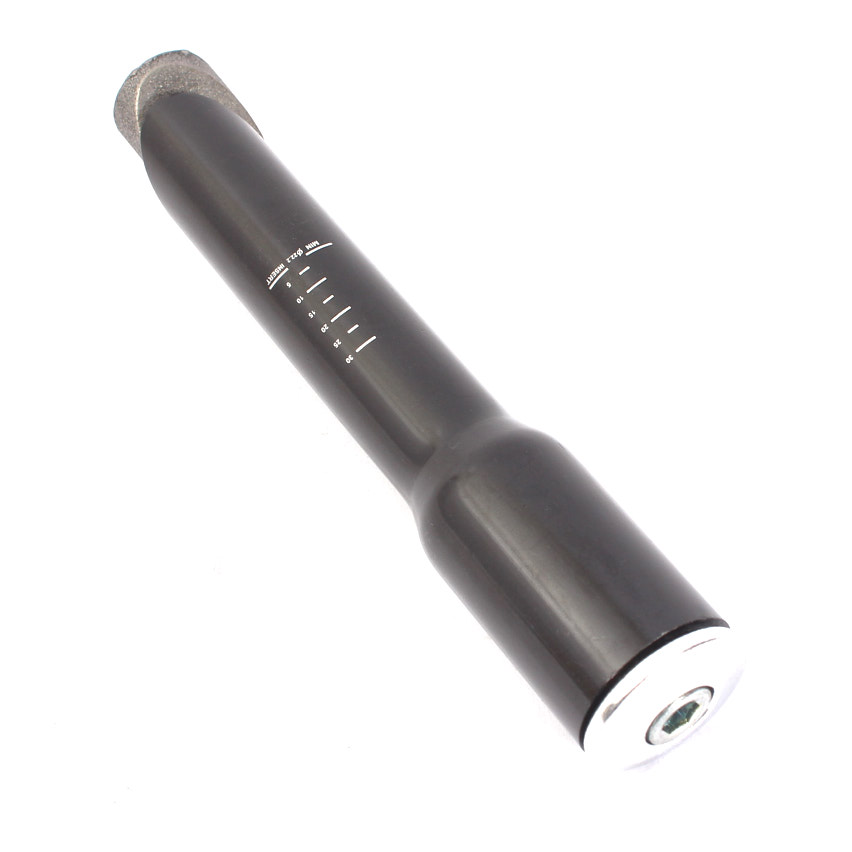

The adapter makes it possible to connect 1 1/8 inch Ahead stems and 1 inch threaded forks.
Adapter from quill stem to Ahead stem. This adapter allows you to combine a 1 1/8" Ahead stem with a 1" threaded fork.
- For 1 1/8" stem diameter
- For 1" fork diameter
- Steerer outer diameter: 22.2mm ≈ 0.87"
- Aluminium with steel bolt
- Steerer tube length: 150mm ≈ 5.91"
| Material: | Aluminum |
|---|---|
| Colour: | Black |
| Product group: | MTB stem |
| Type: | BMX |
| Shaft diameter: | 1'' |
| Shaft length: | 5.91 " / 150mm |
KHEbikes was founded in 1988 by the brothers Thomas and Wolfgang Göring in Karlsruhe. This makes it the oldest German BMX Company. For over 25 years, the name KHEbikes stands for innovation.
Product Safety Instructions for BMX Stem Adapter KHE:
No Modifications: Do not make any modifications such as drilling or cutting to the adapter.
Installation:
Tighten the adapter’s clamp bolt on the steerer tube with a torque of 15-18 Nm to ensure a secure fit. When mounting the stem on the adapter, follow the stem’s torque specifications.
Regular Inspection for Cracks and Deformations: Regularly check the adapter for cracks, deformations, or hairline cracks. Replace the adapter immediately if it shows cracks or damage.
