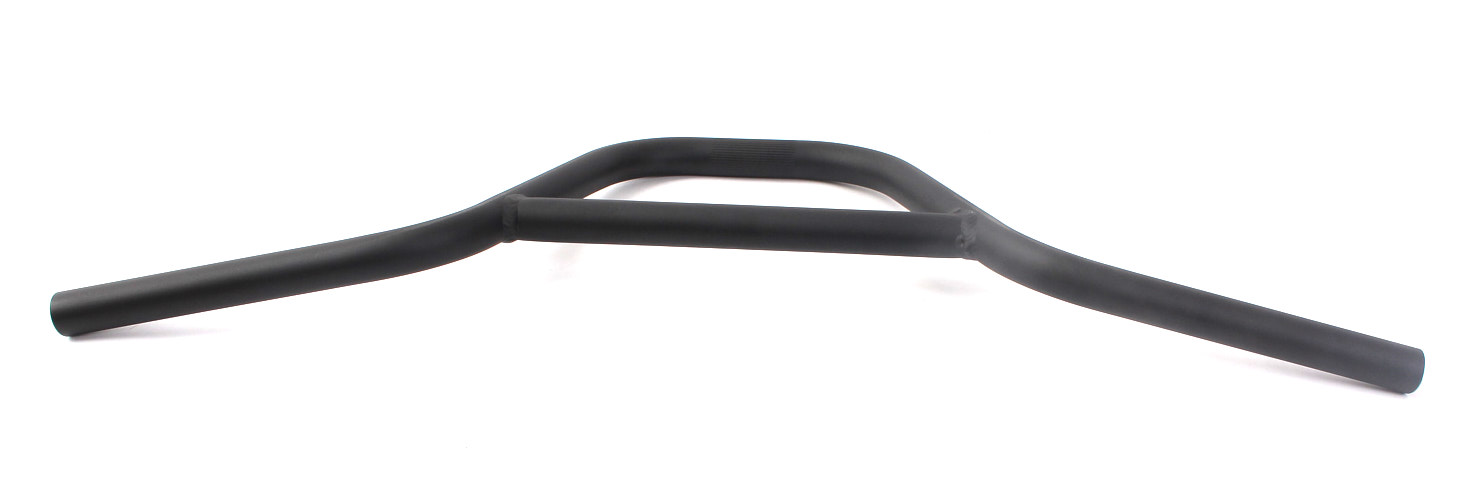

Excellent KHE Prism aluminum handlebars with ribbed handlebar clamp for optimum grip.
High-quality BMX aluminium handlebar 7.8"
This aluminium BMX handlebar is extremely lightweight at just 440g (a comparable steel bar weighs approx. 840g). This saves around 400g – which makes a big difference, especially on the front end of your bike.
This handlebar is ideal for 18" and 20" BMX bikes, including race models. Thanks to its thicker wall and larger cross tube diameter, it is very strong and suitable for all BMX applications.
Specifications at a glance:
- Brand: KHEbikes
- Colour: Black
- Weight: only 440g ≈ 0.97 lbs
- Material: 6061 T6 aluminium
- Height: 7.8"
- Width: 640mm ≈ 25.2"
- Upsweep: 2 degrees
- Clamp diameter: 22.2mm

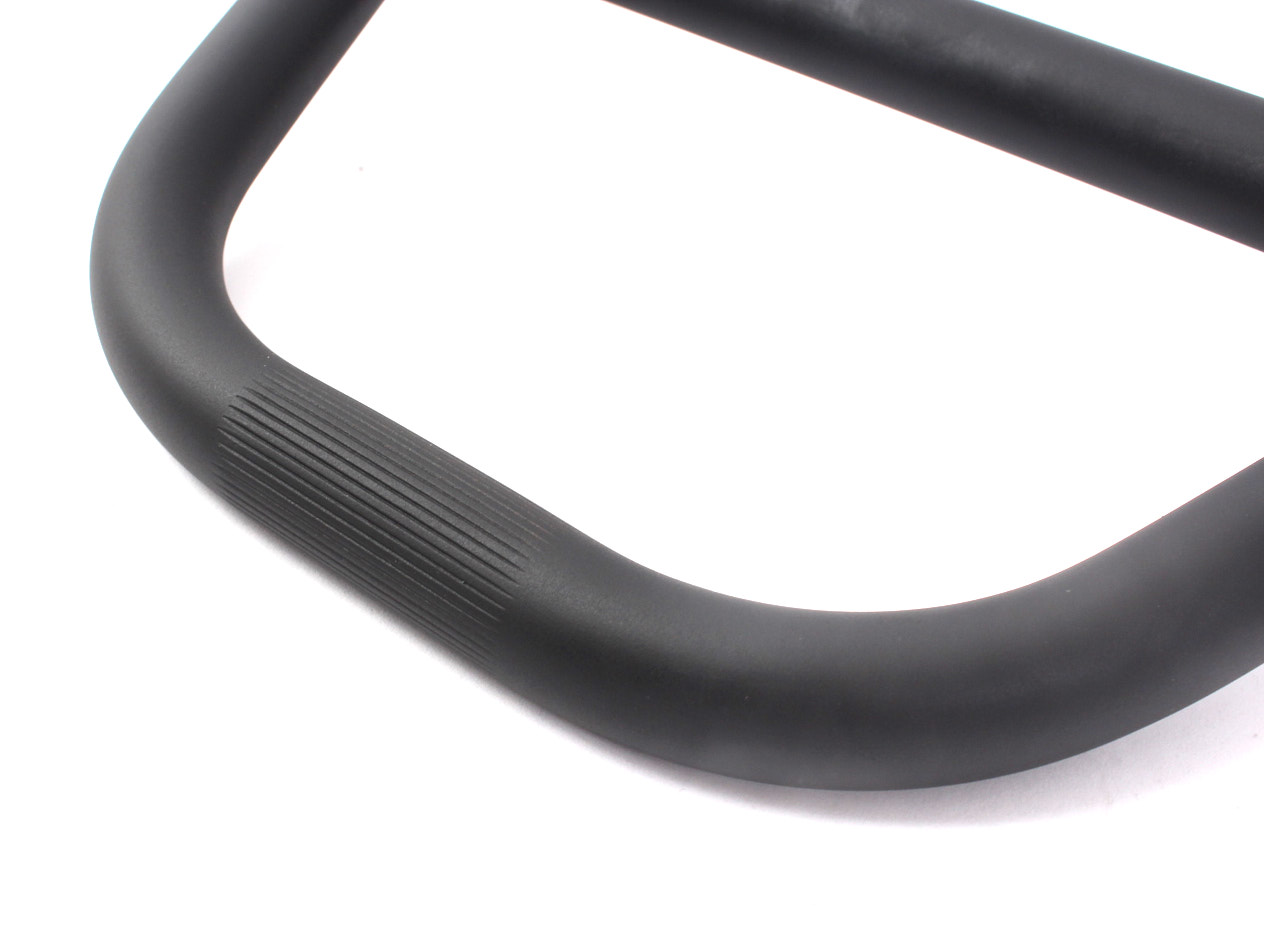

- Knurled clamping area for extra grip
| Material: | 6061 T6 Aluminium |
|---|---|
| Colour: | Black |
| Weight: | 15.52 oz / 440g |
| Backsweep: | 10° |
| Width: | 25.2" / 640mm |
| Height: | 7,8" |
| Clamping diameter: | 0.87" / 22,2 mm |
| Upsweep: | 2° |
Ensure Compatibility: Make sure that the BMX handlebar fits your frame and stem. Proper handlebar clamping is essential for a stable connection. Tighten the handlebar clamp crosswise with 6-8 Nm.
Suitable for Tricks and Stunts: The handlebar is designed for light tricks and moderate landings. It is intended exclusively for BMX use.
No Modifications: Do not perform modifications such as drilling or cutting on the handlebar.
Use in Rain: Clean and dry the handlebar after riding in the rain to prevent rust formation.
Regular Inspection for Cracks and Deformations: Regularly inspect the BMX aluminum handlebar for cracks, deformations, or hairline cracks, especially at the weld seams. Replace the handlebar immediately if cracks or damage are found.
