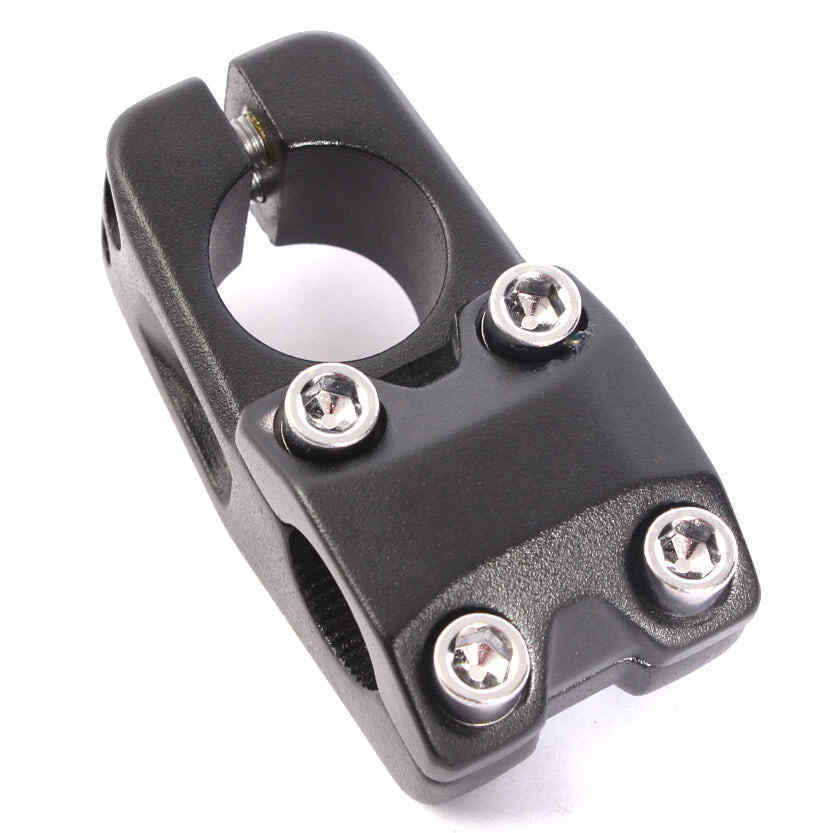

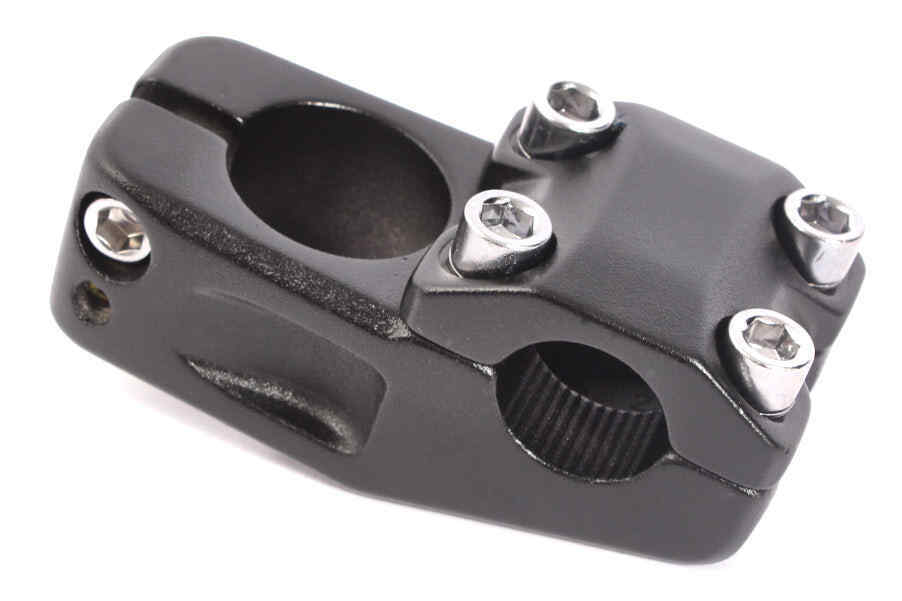

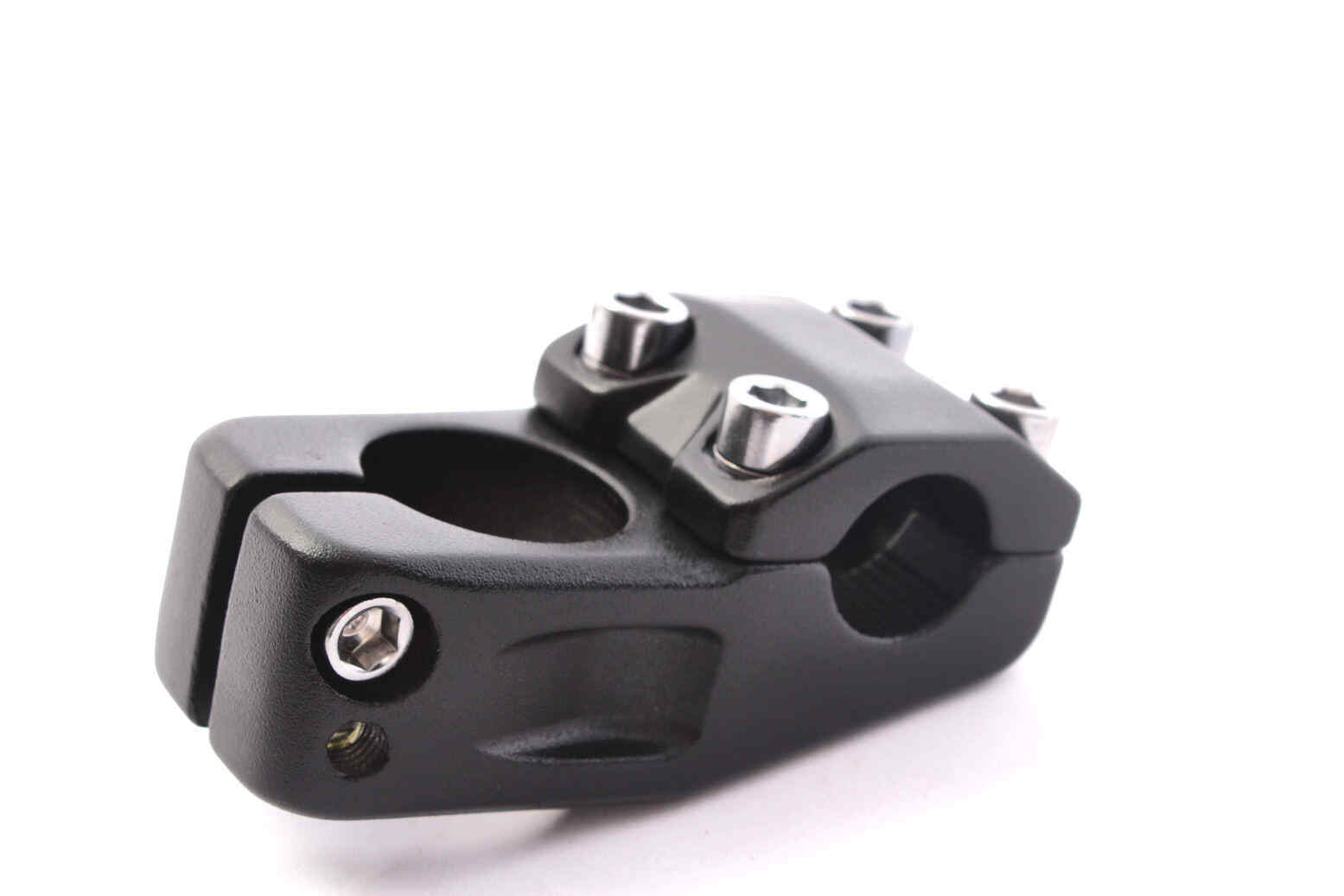

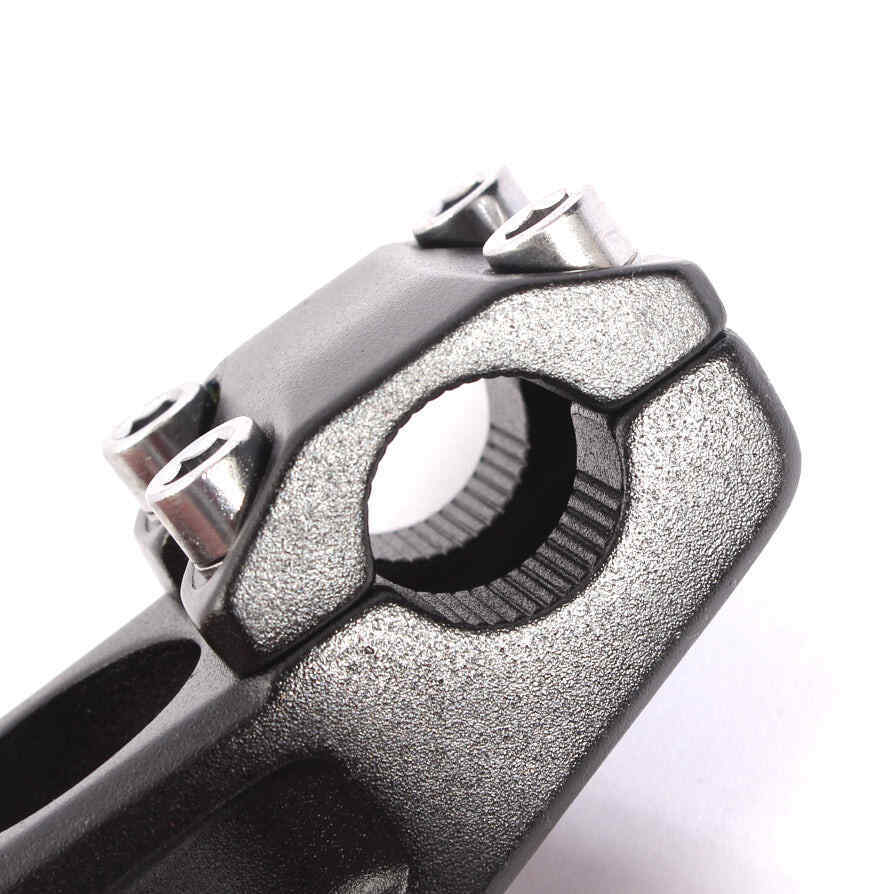

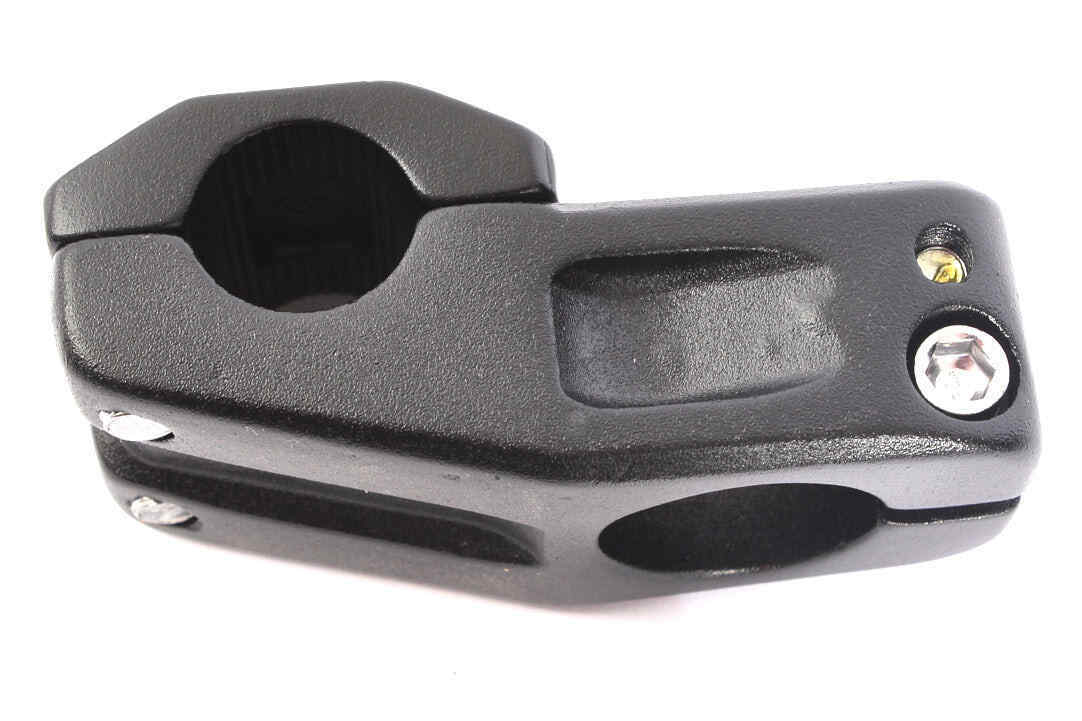

KHE PRISM Toploader Aluminium 40mm BMX Stem
The KHE Prism stem with 40mm reach is perfect for flatland, 18" BMX bikes, or riders who simply prefer a shorter stem.
Specifications at a glance:
- Brand: KHE
- Colour: Black anodised
- Steerer tube: 1 1/8" (28.6mm)
- Bar clamp diameter: 22.2mm
- Reach: 40mm ≈ 1.57"
- Height: 30mm ≈ 1.18"
- Material: 7005 aluminium
- Weight: only 245g ≈ 0.54 lbs
- Toploader
- Also ideal for 18" BMX bikes
| Material: | 7005 Aluminum |
|---|---|
| Colour: | Black |
| Weight: | 8.64 oz / 245g |
| Type: | BMX |
| For fork: | 1 1/8" |
| Height: | 1.18" / 30mm |
| Clamping diameter: | 0.87" / 22,2 mm |
| Length: | 1.57" / 40mm |
| Shaft diameter: | 1 1/8" |
KHEbikes was founded in 1988 by the brothers Thomas and Wolfgang Göring in Karlsruhe. This makes it the oldest German BMX Company. For over 25 years, the name KHEbikes stands for innovation.
Product Safety Instructions for BMX Stem KHE PRISM Aluminum 40mm:
No Modifications: Do not make any modifications such as drilling or cutting to the stem.
Installation: Tighten the handlebar clamp bolts with a torque of 6-8 Nm and the steerer clamp bolts with 10-12 Nm.
Regular Inspection for Cracks and Deformations: Regularly check the stem for cracks, deformations, or hairline cracks. Replace the stem immediately if it shows any cracks or damage.
