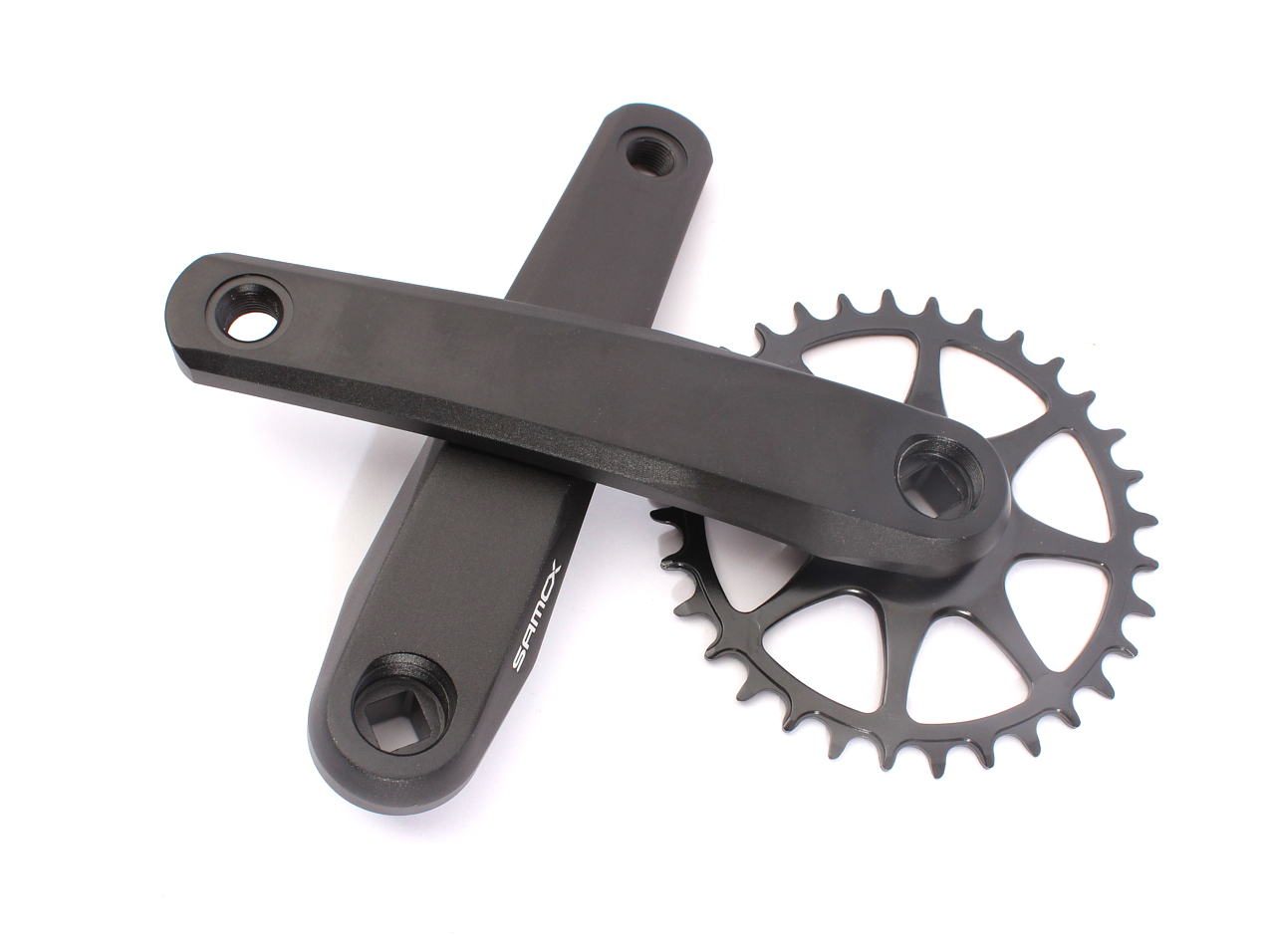

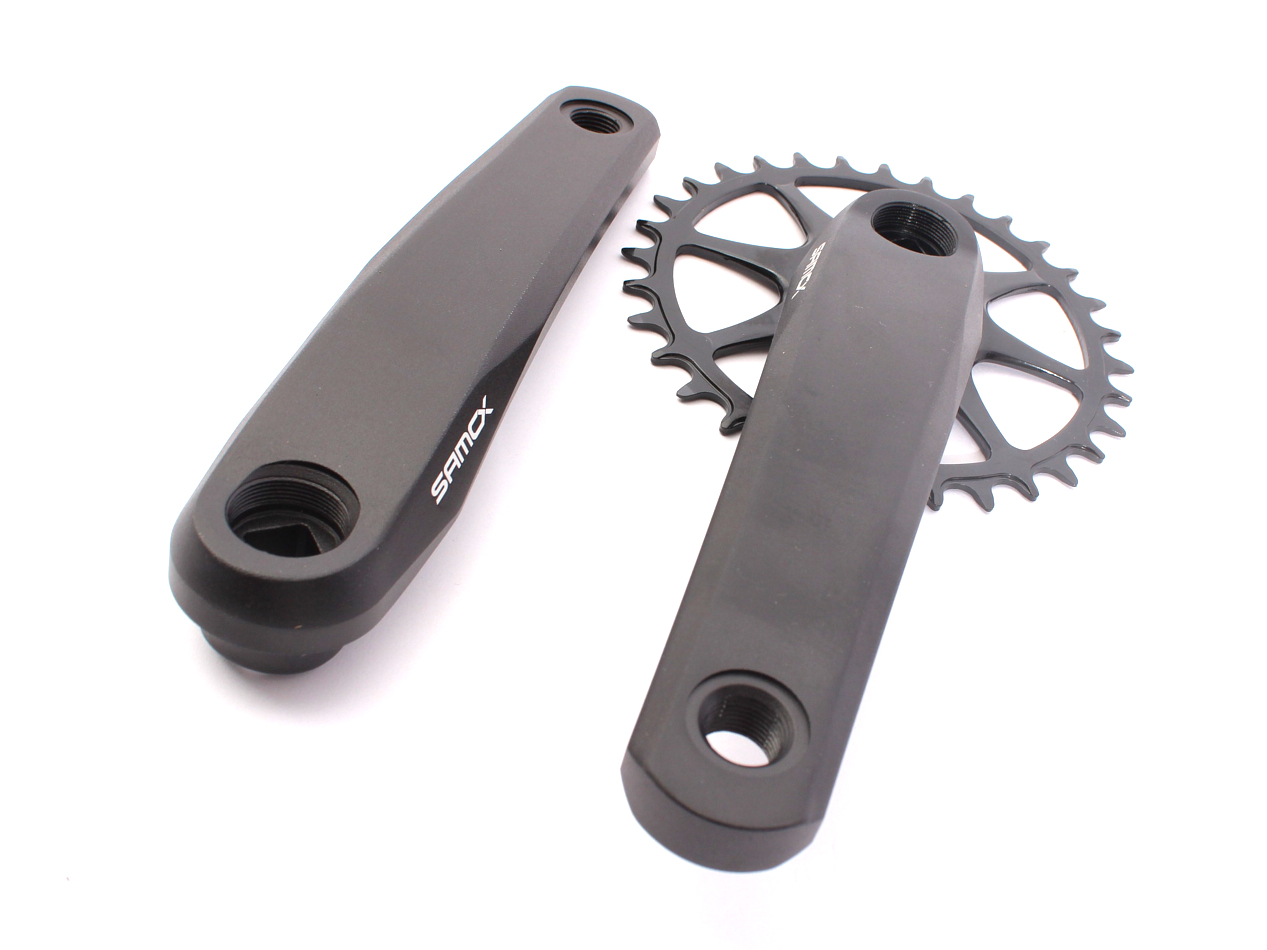

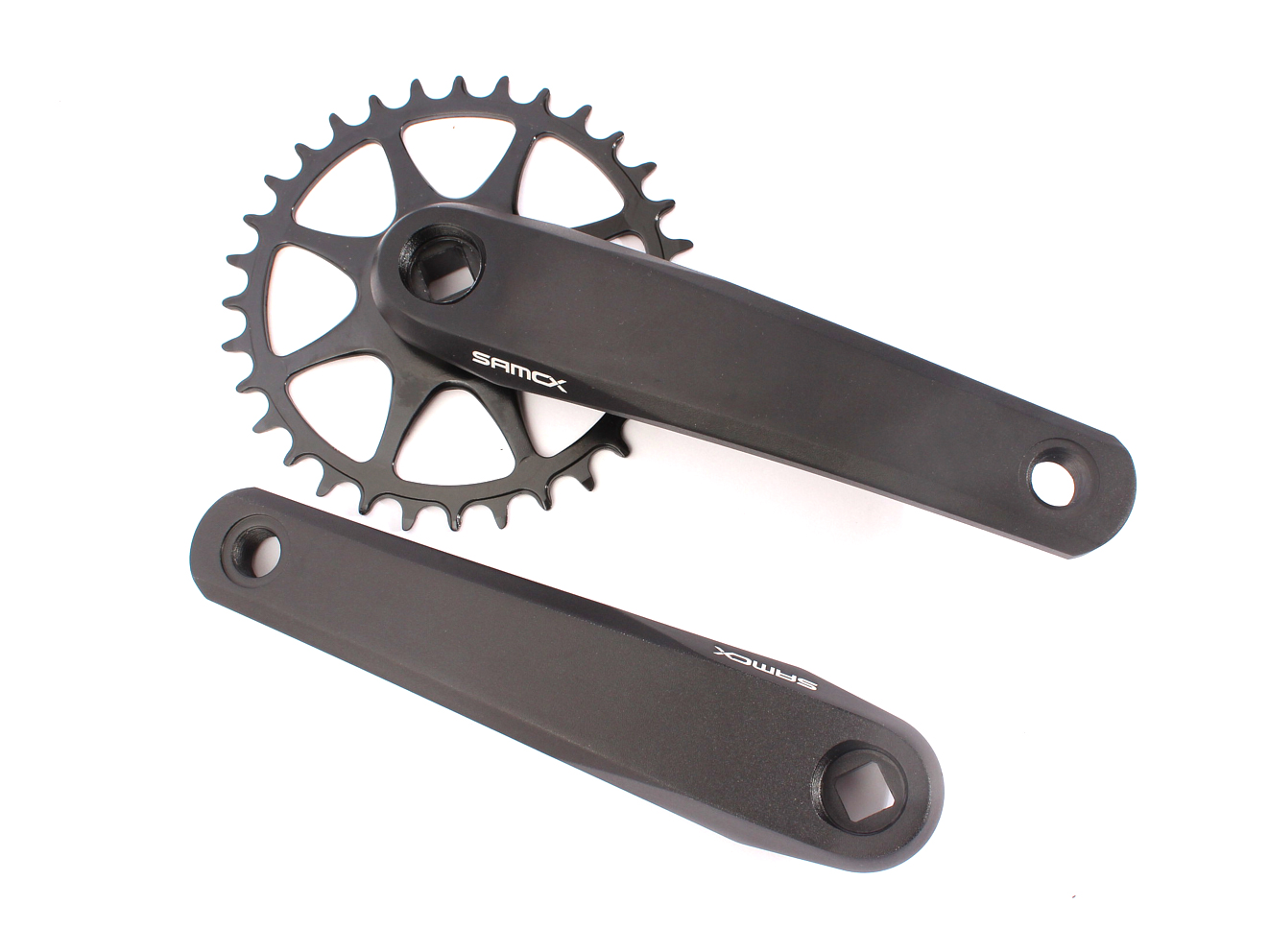

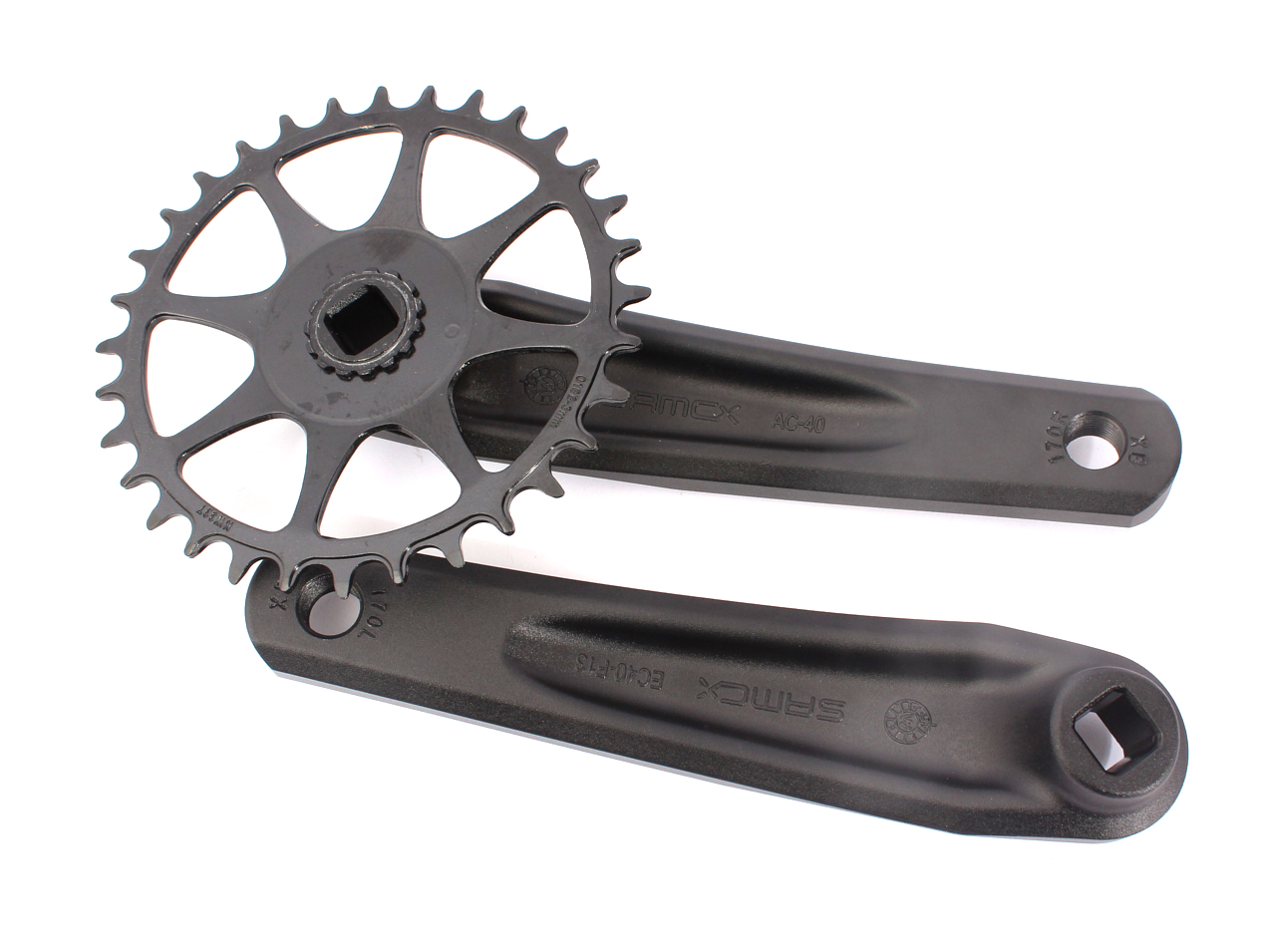

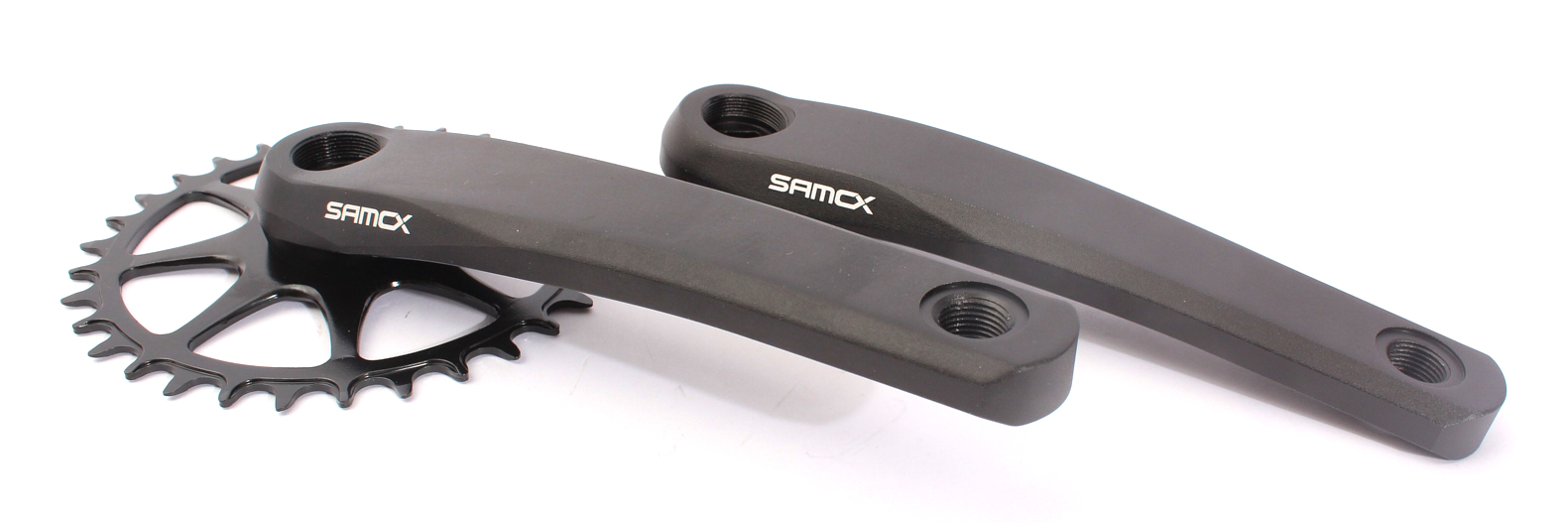

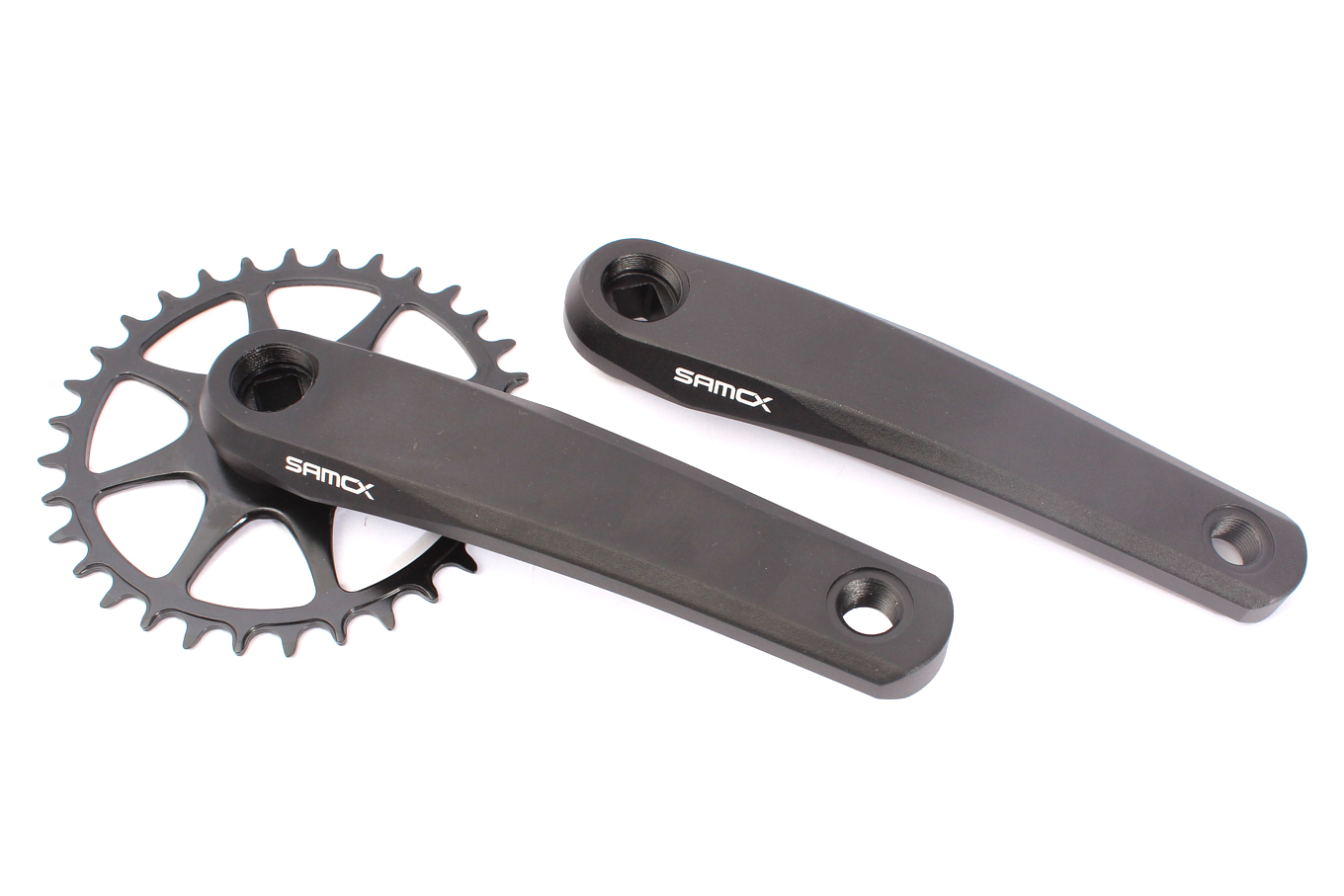

SAMOX MTB Crankset – 1-speed 170 mm with Direct Mount
The SAMOX MTB Crankset is the ideal choice for mountain bikers looking for a lightweight, stable, and efficient 1-speed drivetrain system. Thanks to the Direct Mount attachment, it offers an especially stiff and robust connection between the crank and chainring, ensuring optimal power transfer. With a 32-tooth Narrow Wide chainring and a crank arm length of 170 mm, it is perfect for use on challenging trails and steep climbs.
Technical Details at a Glance:
- Drive: 1-speed
- Attachment: Direct Mount for a firm, stiff connection
- Chainring: 32 teeth, Narrow Wide for better chain retention
- Shift Compatibility: 9-speed, 10-speed, 11-speed, 12-speed
- Crank Arm Length: 170 mm
- Crank Material: Aluminum – lightweight & stable
- Chainring Material: Steel – durable & wear-resistant
- Bottom Bracket Compatibility: JIS square taper
- Offset: 13 mm
- Chainline: 53 mm
- Chain Pitch: 1/2"
- Chain Inner Width: 3/32" & 11/128"
- Color: Black anodized
- Weight: Only 680 g
Advantages:
✅ Lightweight & stable aluminum cranks: For high durability with low weight.
✅ Direct Mount attachment: Stiffer connection for direct power transfer.
✅ Efficient 1-speed drive: The 32-tooth Narrow Wide chainring prevents chain drops and improves shifting performance.
✅ Versatile use: Compatible with 9- to 12-speed drivetrains.
✅ Optimal chainline (53 mm): Perfect for modern MTB frames and wide Boost drivetrains.
✅ Lightweight: At only 680 g, it is one of the lighter options in this category.
The SAMOX MTB Crankset 1-speed 170 mm offers an excellent combination of lightweight, stability, and efficiency – ideal for mountain bikers looking to optimize their setup.
Perfect for upgrades or converting to a modern 1-speed drivetrain!
| Material: | Aluminum |
|---|---|
| Size: | for 9/16" pedals |
| Colour: | Black |
| Weight: | 1.5 kbs / 680g |
| Product group: | MTB Crank |
Product Safety Information for SAMOX MTB Crankset 1x 170 mm:
Ensure Compatibility: This crankset is designed exclusively for use on mountain bikes with a JIS square taper bottom bracket. Ensure compatibility with the chainline (53 mm), bottom bracket, and the desired drivetrain (9- to 12-speed).
Installation: Thoroughly clean the bottom bracket shell before installation and tighten the crank arms evenly. The 32-tooth narrow-wide chainring ensures secure chain retention – check that it is correctly installed and aligned. The Direct Mount system provides an especially stiff connection between the crank and chainring for optimal power transfer.
Maintenance and Care: Clean the crankset regularly and lubricate moving parts as needed. Check bolts, bearings, and the chainring for secure fit and wear to ensure safe operation.
Replacement Due to Wear: Replace the crankset immediately if wear, cracks, or damage are detected to ensure riding safety.
