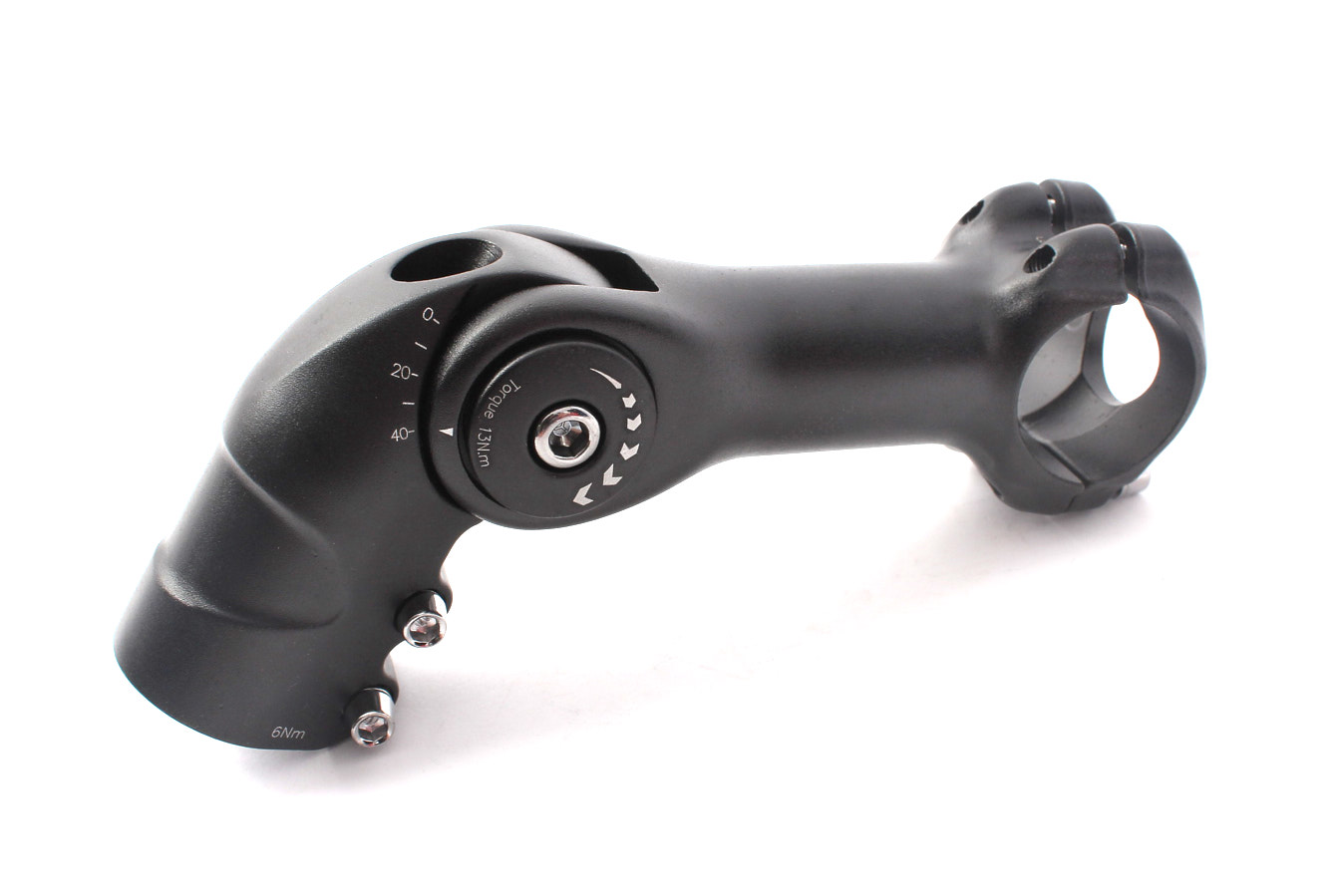

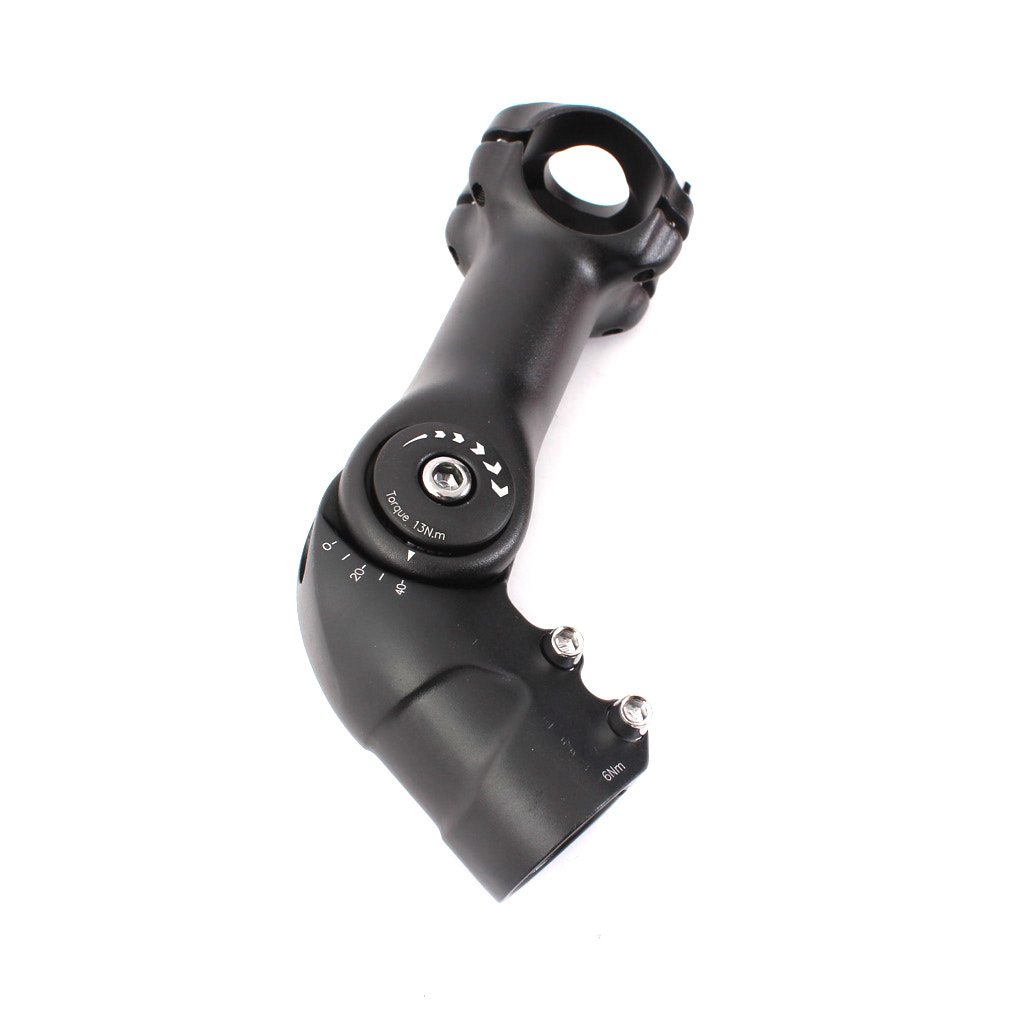

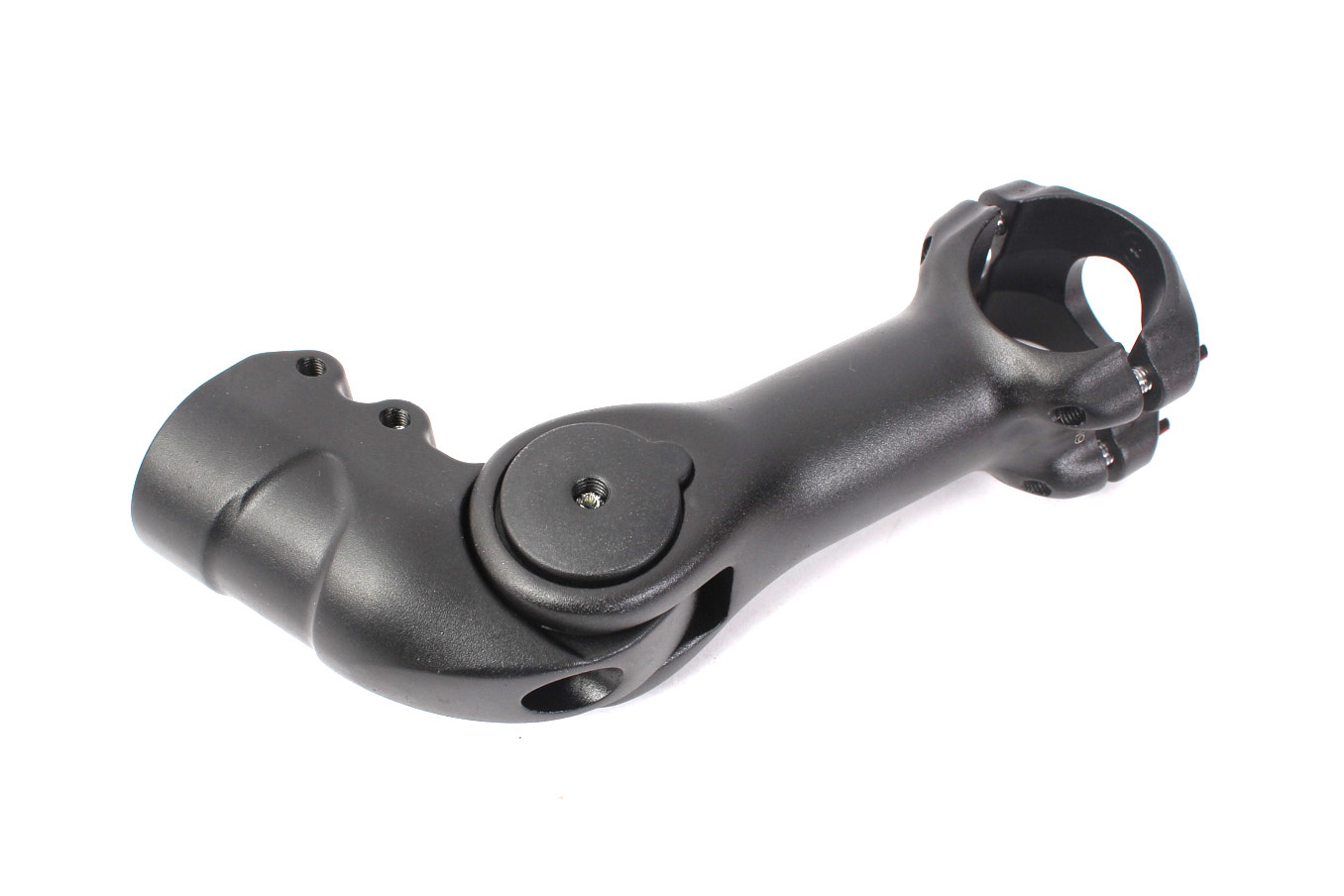

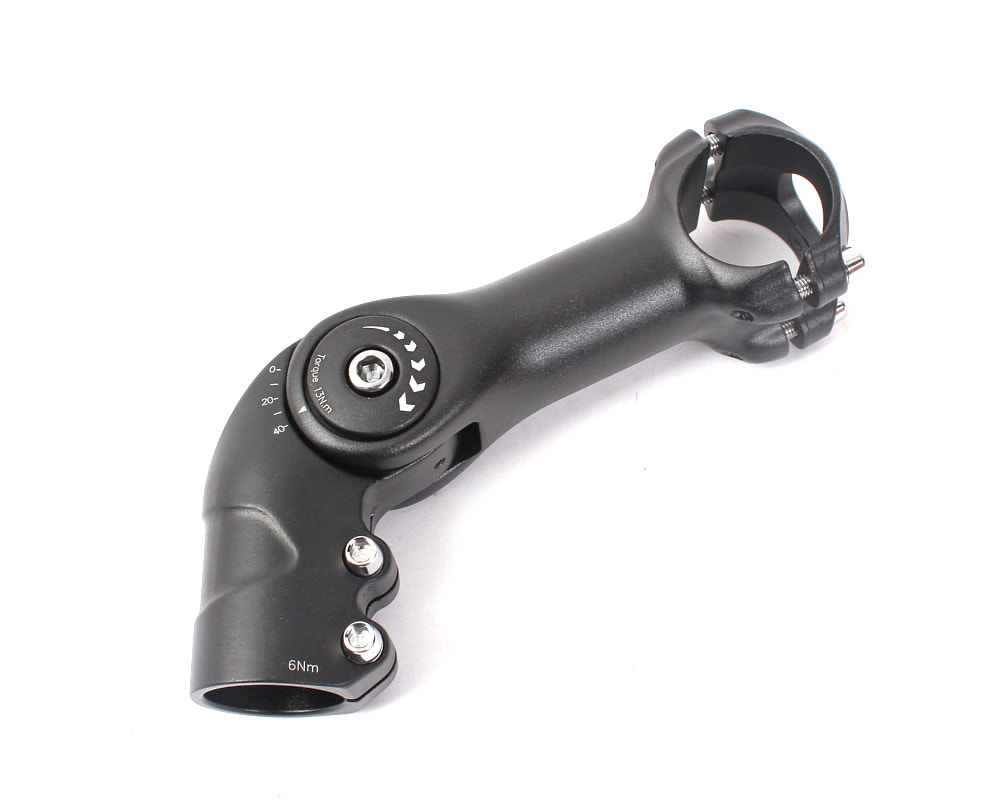

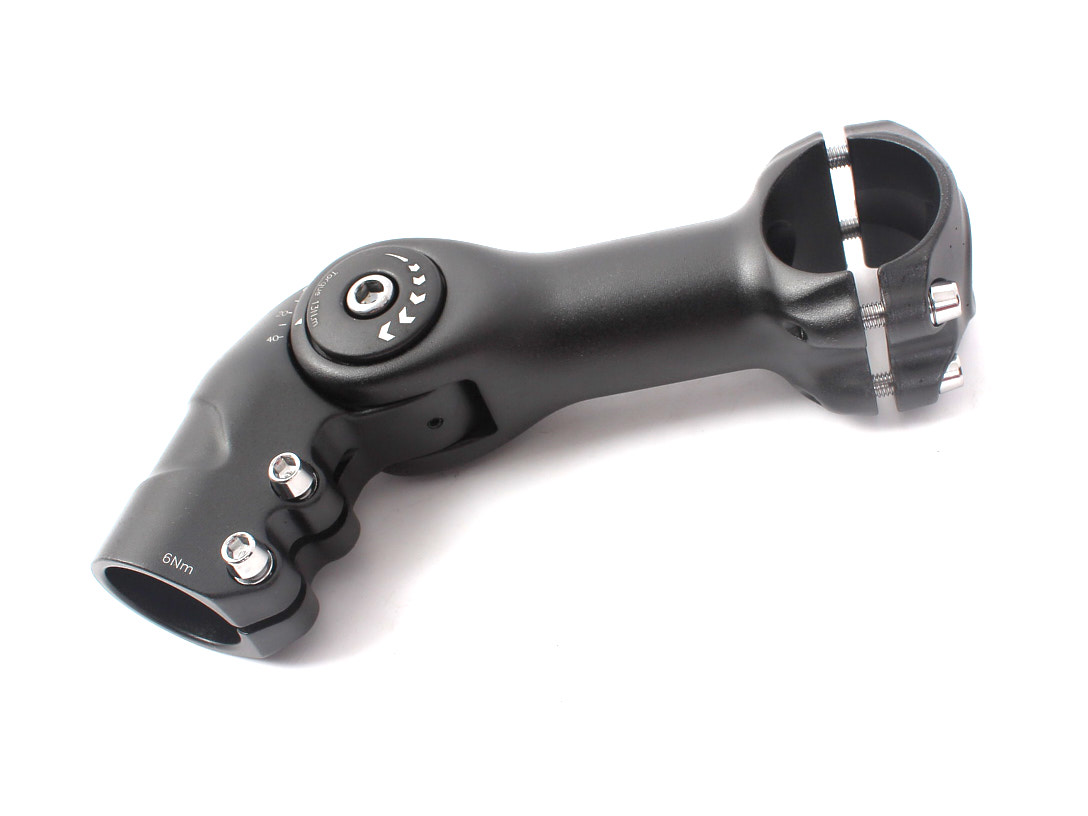

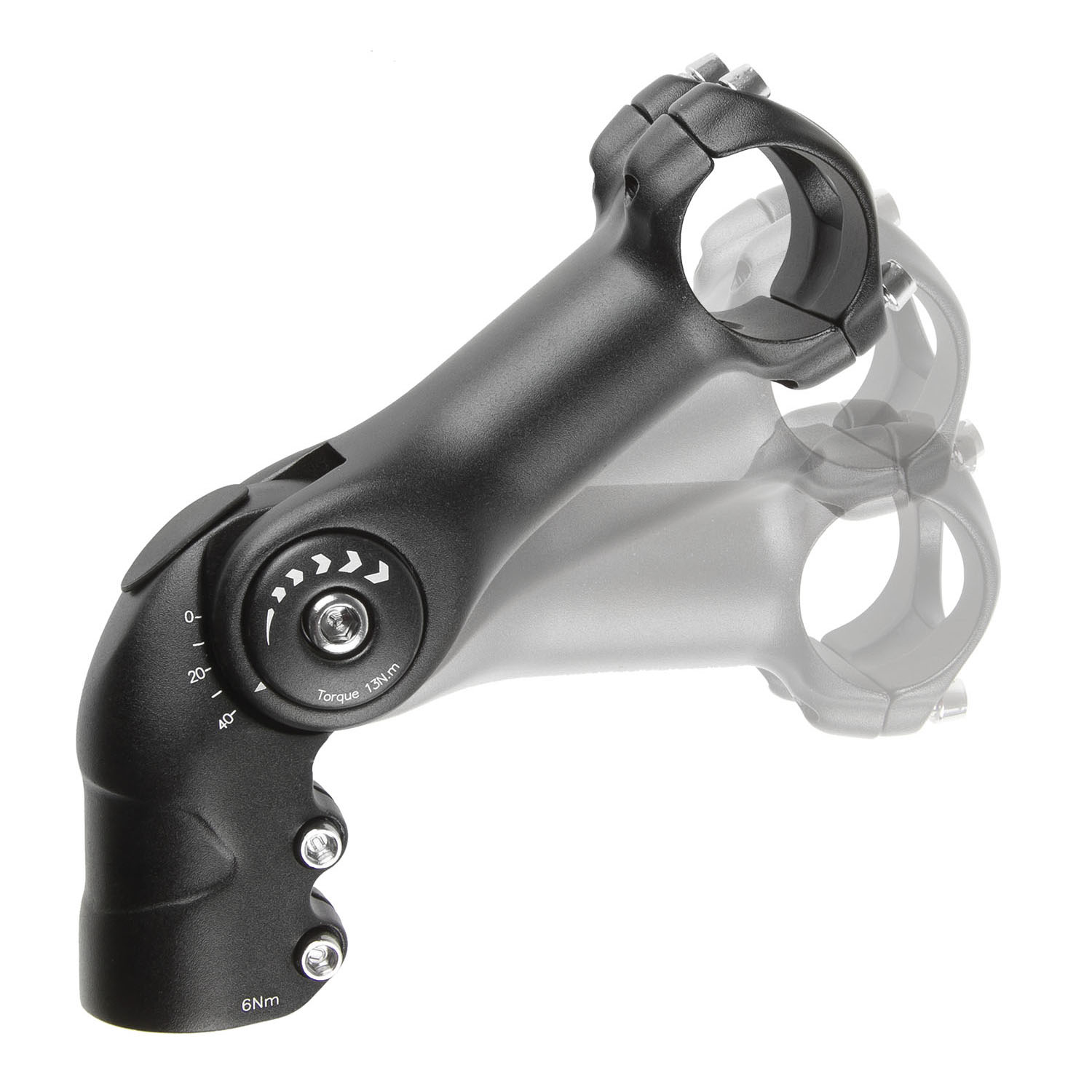

PROMAX Ahead 1 1/8 inch stem -25 - 90 degrees adjustable
The 3D forged aluminum stem can be easily adjusted from -25 to 90 degrees and is suitable for a 1 1/8” fork steerer tube. The 2-piece handlebar clamp and a total of four bolts generate a particularly high clamping force.
- 3D forged aluminum
- -25 to +90 degrees adjustable
- stem length 110mm
- fork steerer outer diameter 1 1/8” (28.6mm)
- For handlebar diameter 31.8 mm
| Colour: | Black |
|---|---|
| Diameter: | 1.25" / 31,8mm |
| For fork: | 1 1/8" |
| Length: | 4.33" / 110 mm |
| Material: | 7005 Aluminum |
| Shaft diameter: | 1 1/8" |
| Type: | MTB/Fixie |
| Weight: | 11.5 oz / 326g, 11.11 oz / 315g |
Product Safety Instructions for MTB PROMAX Ahead 1 1/8 Inch Stem -25 to -90 Degrees Adjustable:
No Modifications: Do not make any modifications, such as drilling or cutting, to the stem.
Installation:
Tighten the handlebar clamp bolts to a torque of 6-8 Nm to ensure a firm, even fit. The steerer tube clamp bolts should also be tightened to a torque of 6-8 Nm.
Regular Inspection for Cracks and Deformations: Regularly inspect the stem for cracks, deformations, or hairline fractures. Replace the stem immediately if any cracks or damage are found.
