$24.57*
% $27.30* (10.02% saved)Available, delivery time: 5-10 business days **

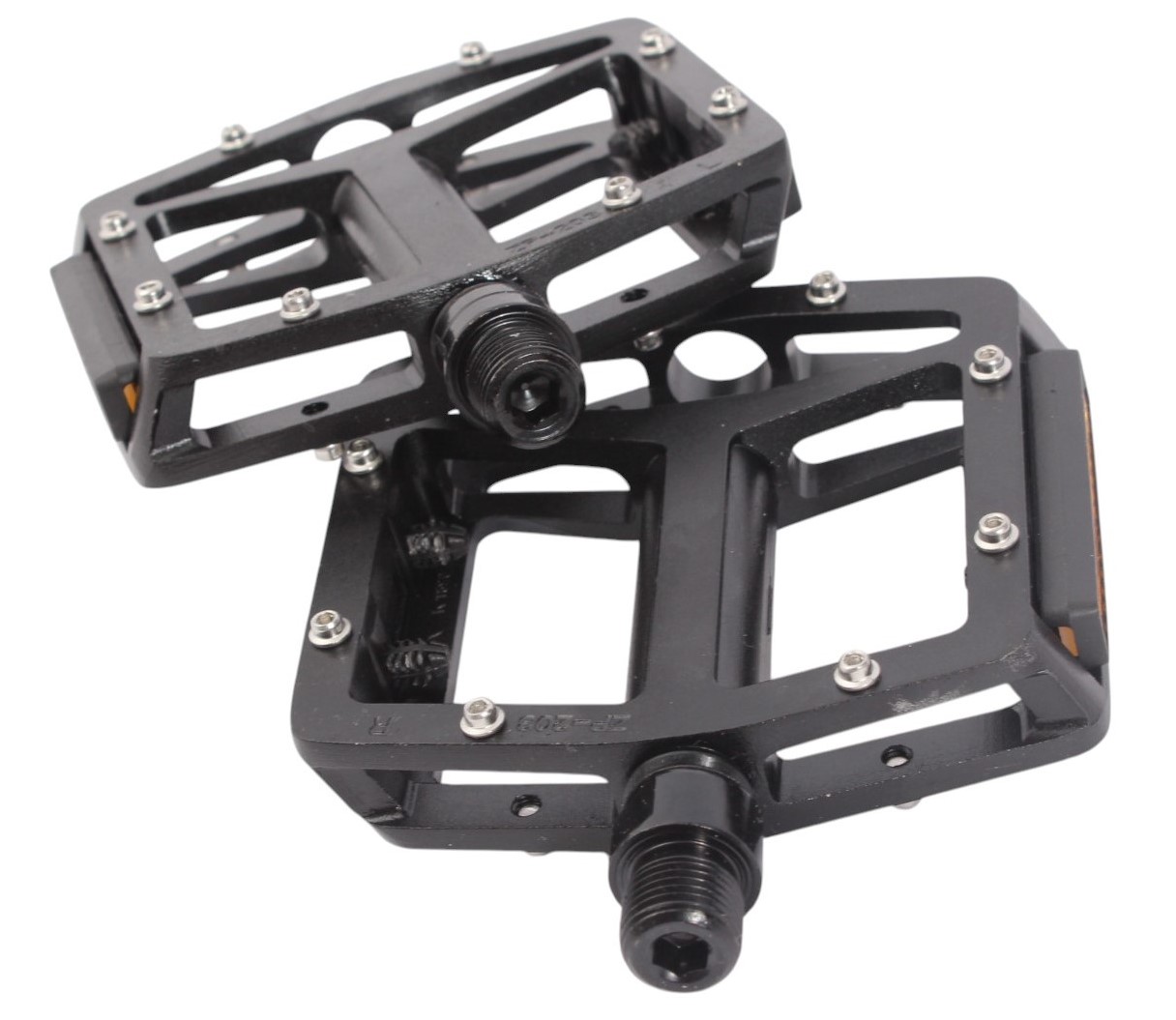

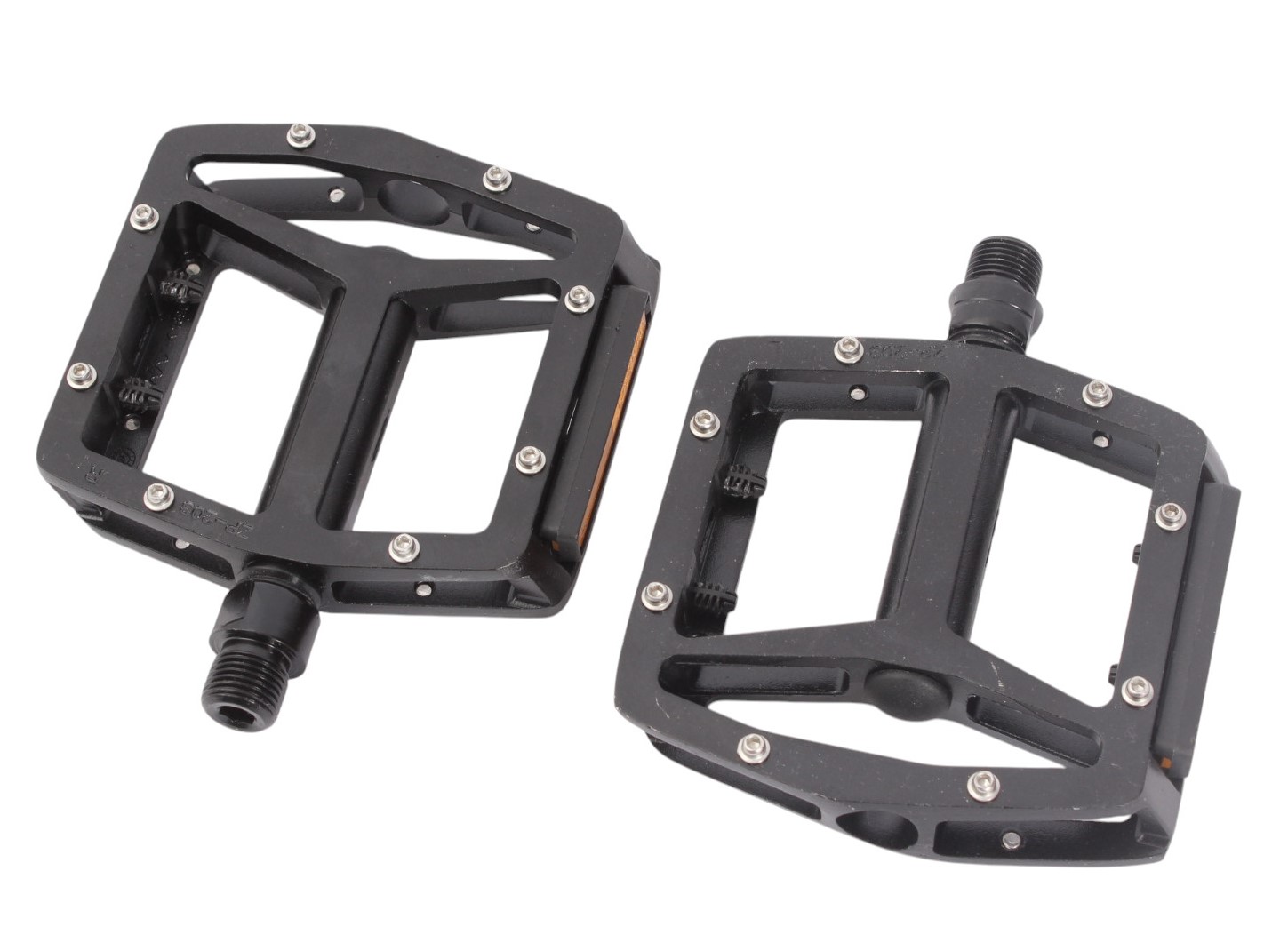

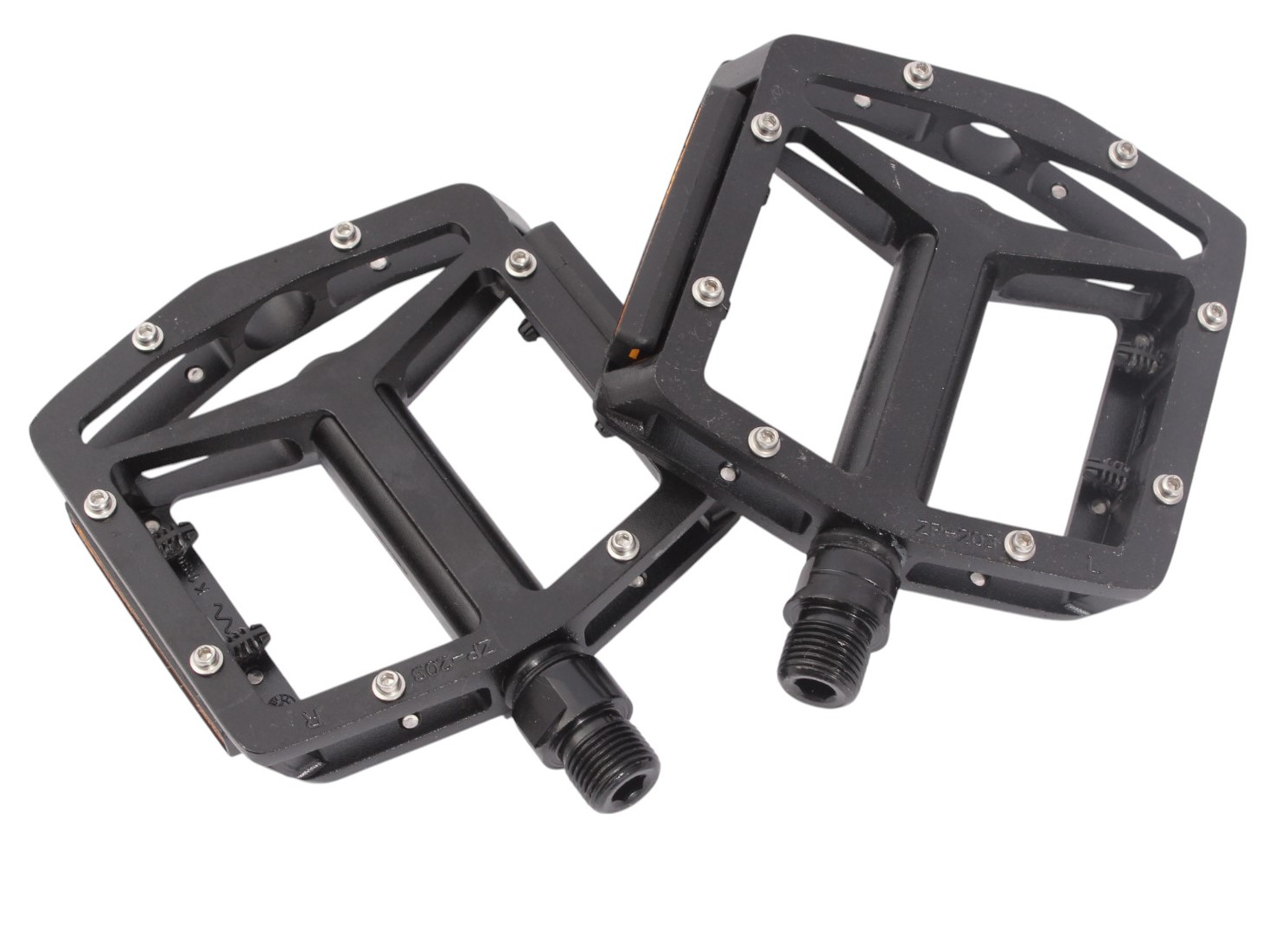

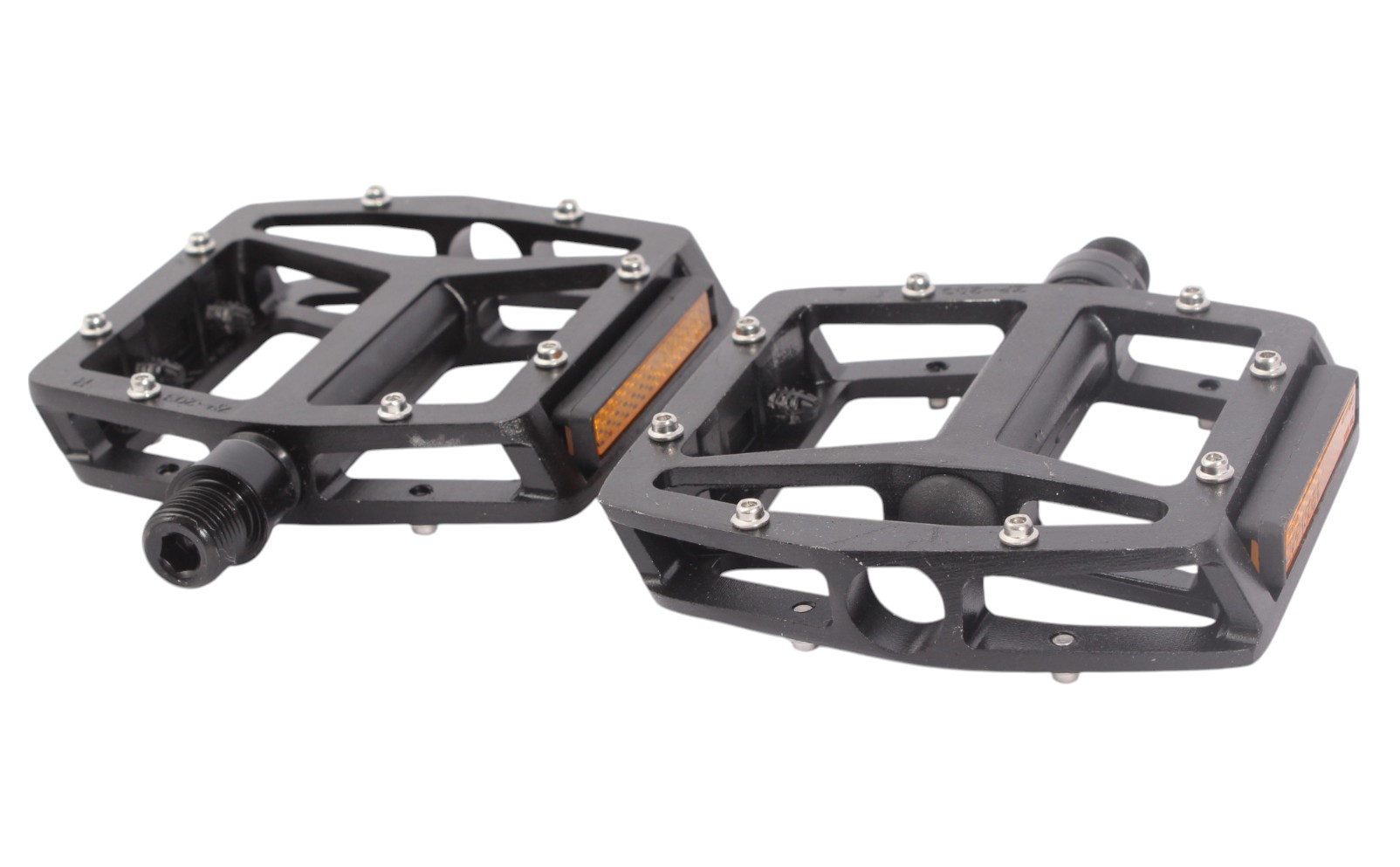

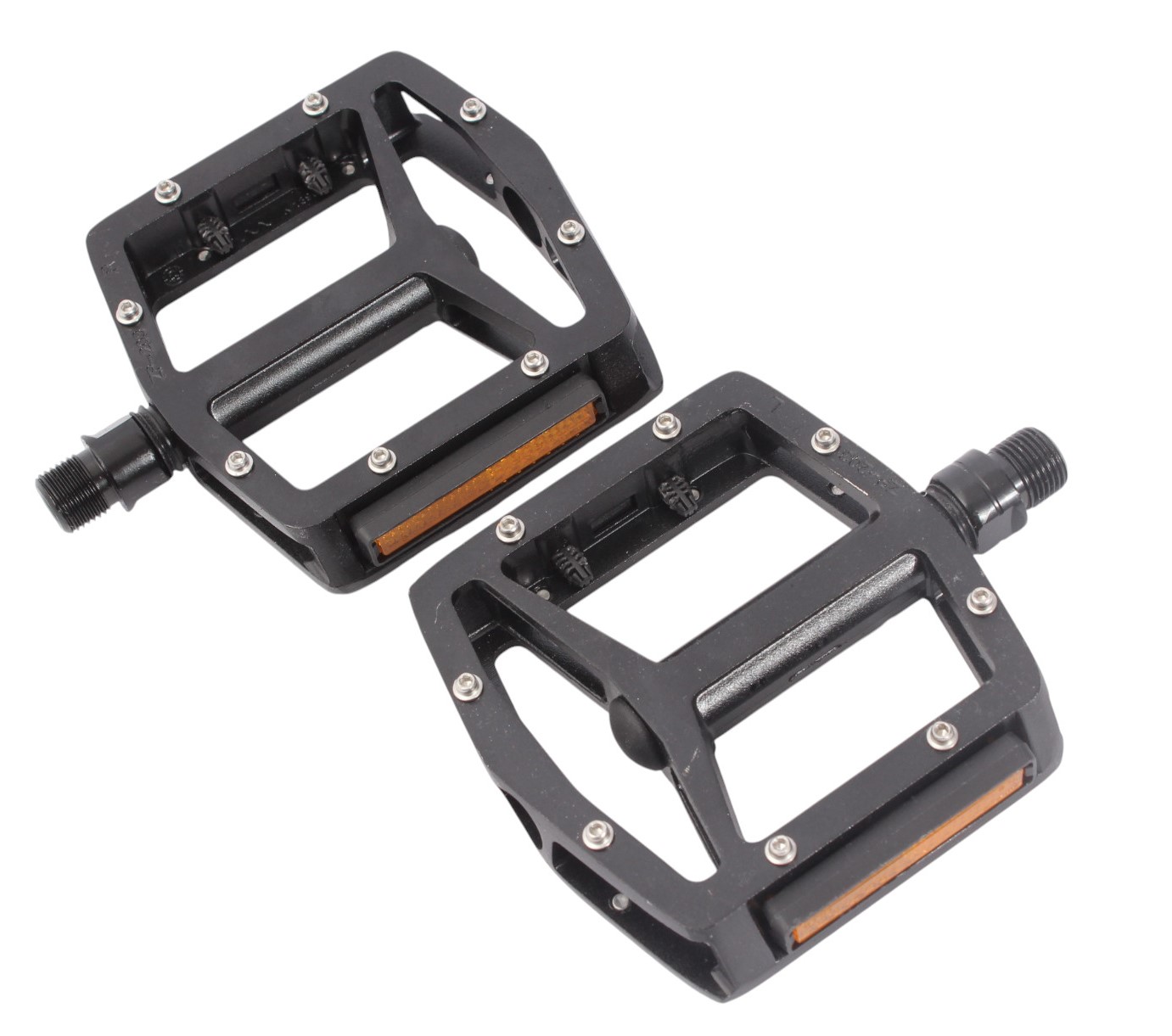

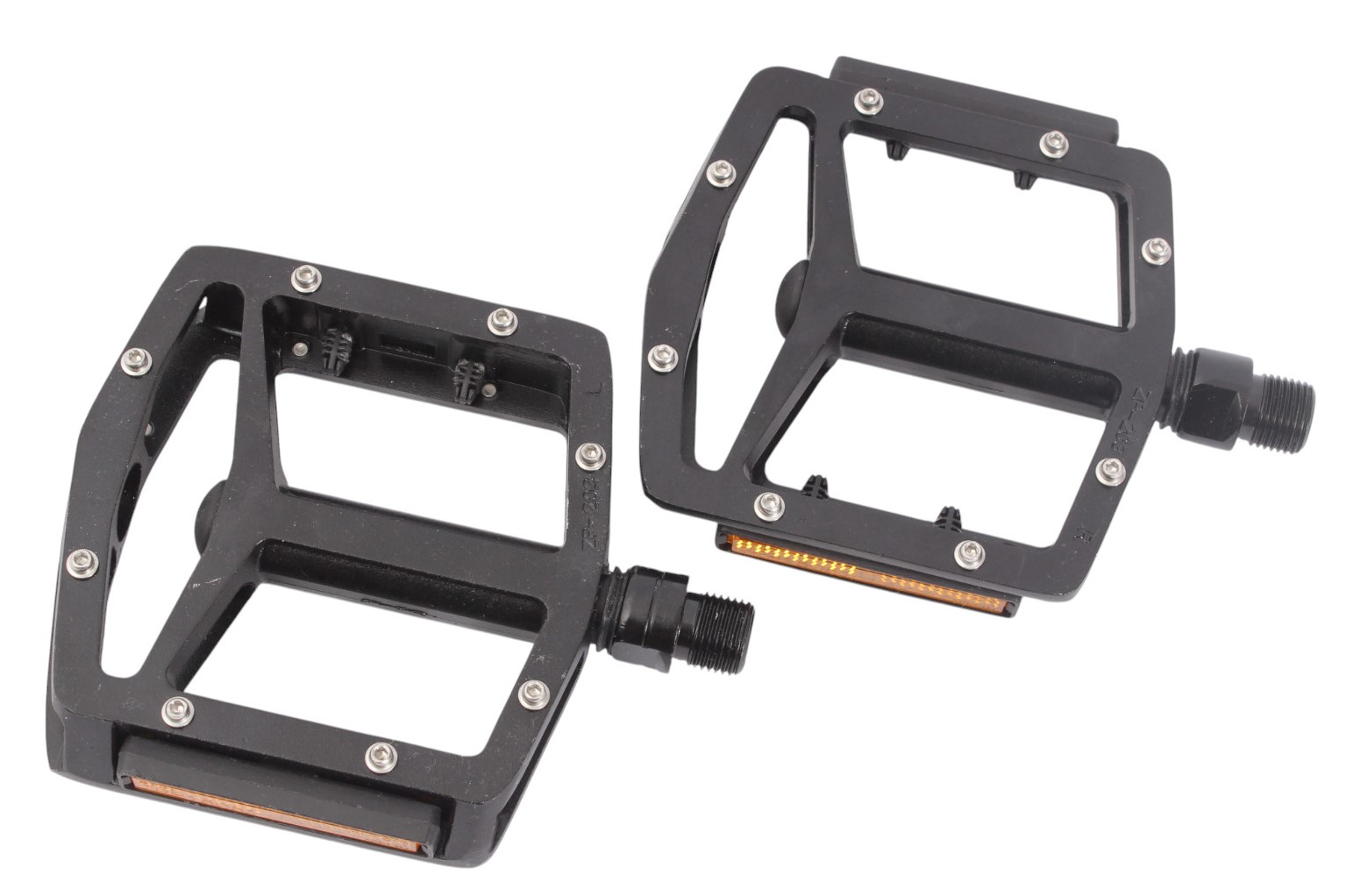

BMX MTB Pedals KHE Flat Pin 9/16 Inch Aluminum
The BMX/MTB aluminum platform pedals with polymer bushings, which are only 18 mm high, offer a combination of lightweight construction, stability, and low profile height, making them ideal for various cycling disciplines. Here are the main features of such pedals:
Material: The aluminum housing provides a good balance between durability and weight, making them suitable for both BMX and mountain bike use.
Polymer Bushings: These bushings offer a low-friction and low-maintenance alternative to ball bearings. They are particularly durable and resistant to dirt and moisture.
Flat Profile: At only 18 mm high, these pedals are very low-profile, contributing to better ground clearance and a stable riding feel.
Grip: Platform pedals of this type are often equipped with pins that provide additional grip, especially in technical rides or wet conditions.
Such pedals are intended for riders who value a direct connection to the bike, good grip, and lightweight materials. They are excellent for use on challenging trails and in urban environments.
Overview of Specifications:
- Brand: KHE
- Dimensions: 97mm x 92mm
- Height: 18mm (very flat)
- Material: 7005 aluminum
- Axle Material: 4130 CrMo
- Thread Size: 9/16" inch
- Sealed Bushings
- Screwed-in Steel Pins
- Weight: only 392g (pair)
- Suitable for 3-piece cranks
- Top product from KHE!
| Material: | 7005 Aluminum |
|---|---|
| Colour: | Black |
| Weight: | 13.83 oz / 392 g |
| Product group: | MTB pedals |
| Axle diameter: | 9/16 Zoll |
| Height: | 0.71" / 18mm |
| Length: | 3.62" / 92mm |
Ensure Compatibility:
These aluminum pedals are designed exclusively for use on MTB bicycles. They are not suitable for other bicycle types or mechanical applications.
Installation: The pedals are marked with a left-hand thread (L) and a right-hand thread (R). Install each pedal on the corresponding side of the bicycle. Tighten the pedals using a torque wrench: 35–40 Nm. Apply a small amount of lubricant to the threads and check after installation that the pedals rotate freely without resistance.
Care and Maintenance:
Clean the pedals regularly with a damp cloth to remove dirt, mud, or dust that may affect their performance.
Inspect the pedal bearings and axle regularly for play or wear. If necessary, lubricate the bearings with suitable grease.
Replace When Worn: Replace the pedals immediately if you notice wear, uneven degradation, cracks, or damage.
