INFORMATION: B-goods BMX bike / defective goods
This BMX bike is a B-goods BMX of category N1. The BMX was only sent by a shipping service provider and has been returned to KHEbikes. This B-goods BMX bike of category N1 has been repackaged and is 100% functional. You receive the full warranty and revocation Claim.
If you have any further questions about the BMX bike, please contact our support team at Service@khebikes.de

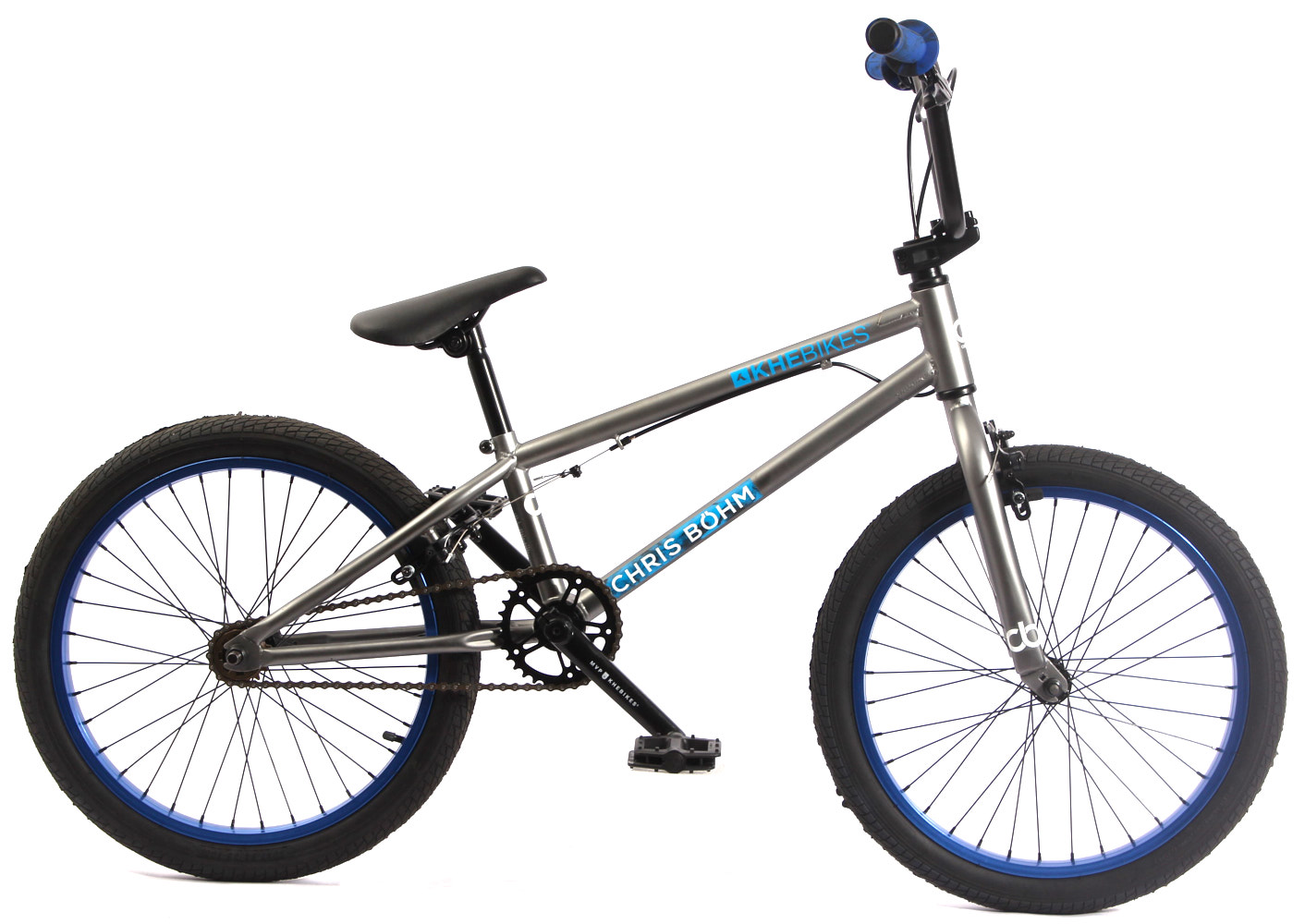

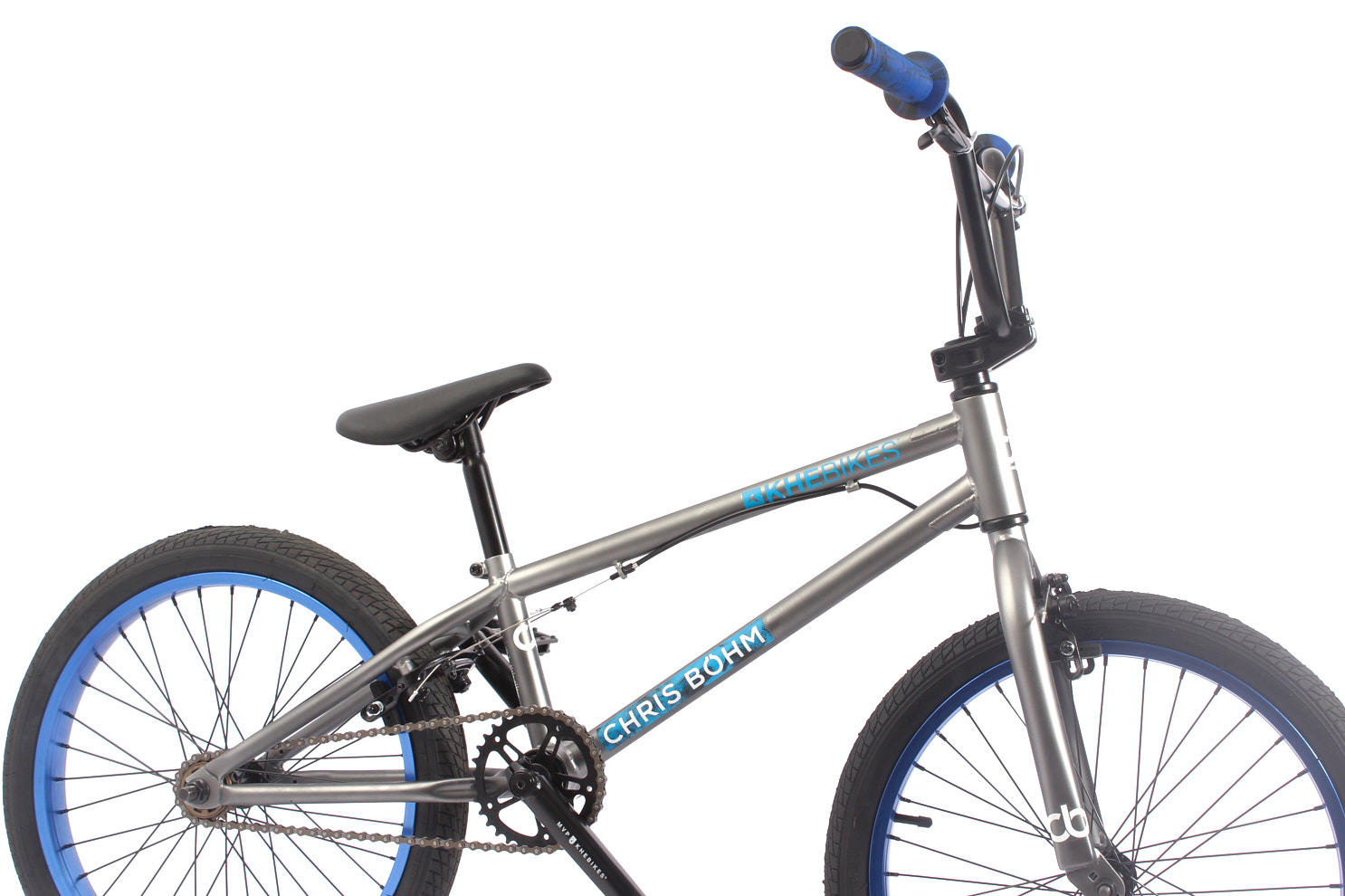

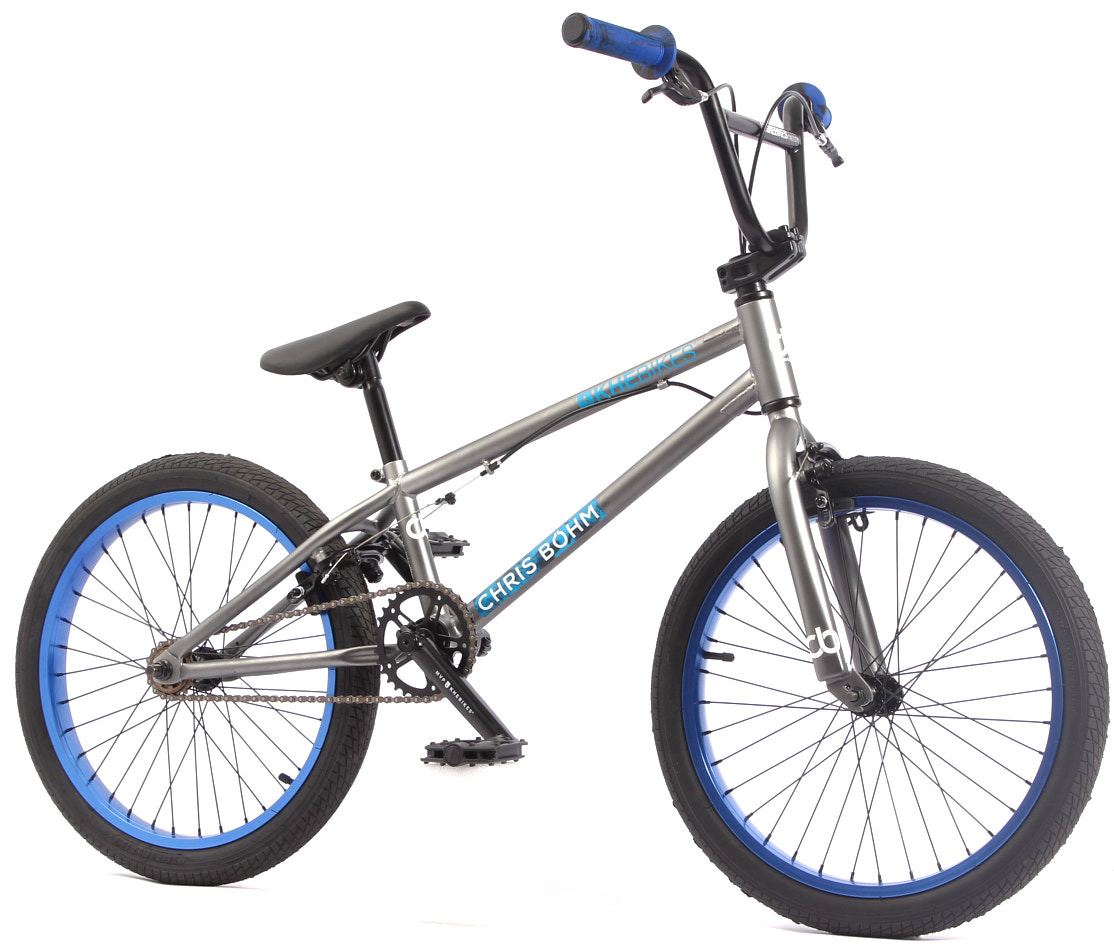

KHE has started a cooperation with Chris Böhm, probably the most famous German BMX rider. Together we have developed a perfect beginner BMX with which you can easily learn your first tricks.

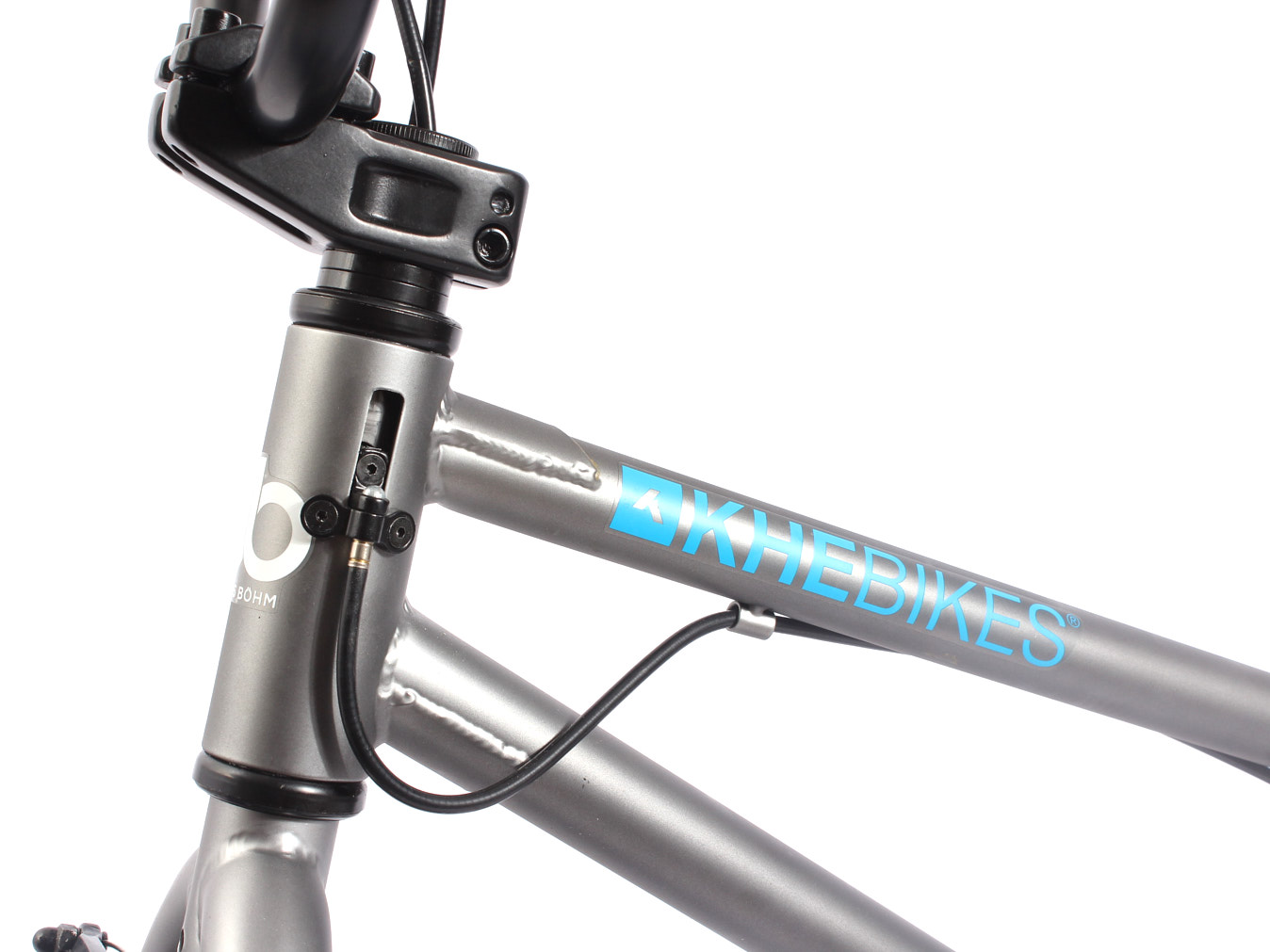

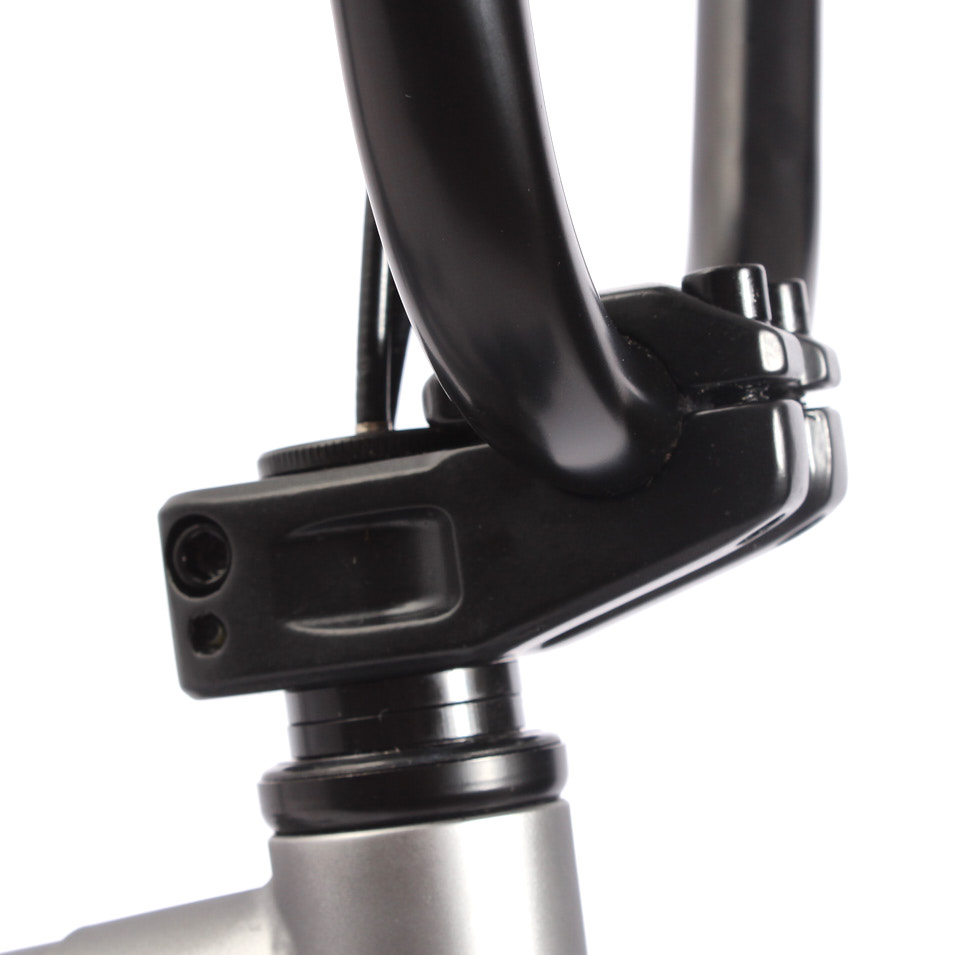

Thanks to the short wheelbase, the bike is very agile and fast. Of course, the Chris Böhm BMX is equipped with our patented 360° Affix BMX Rotor (allows you to turn the handlebars 360° without tangling the cables). Furthermore, high-quality U-brakes (front and rear) and a short stem are installed. The saddle can be easily adjusted in height and angle with the lightweight seat post. The BMX bike is ideally suited for children from the age of 9 or a height of 4.59ft / 140cm.
Recommended rider height: 4.59ft - 5.58ft / 140-170cm
Maximum total rider weight: 176.37lbs / 80kg
Application: Street / Park / Flatland
Pegs: The Chris Böhm 20" can be equipped with 10mm front pegs and 14mm rear pegs. We recommend the KHE BLACK STEEL pegs.
The BMX bike is about 90% pre-assembled. You can find the operating instructions under "Data sheets". You can find an assembly video under "Video".

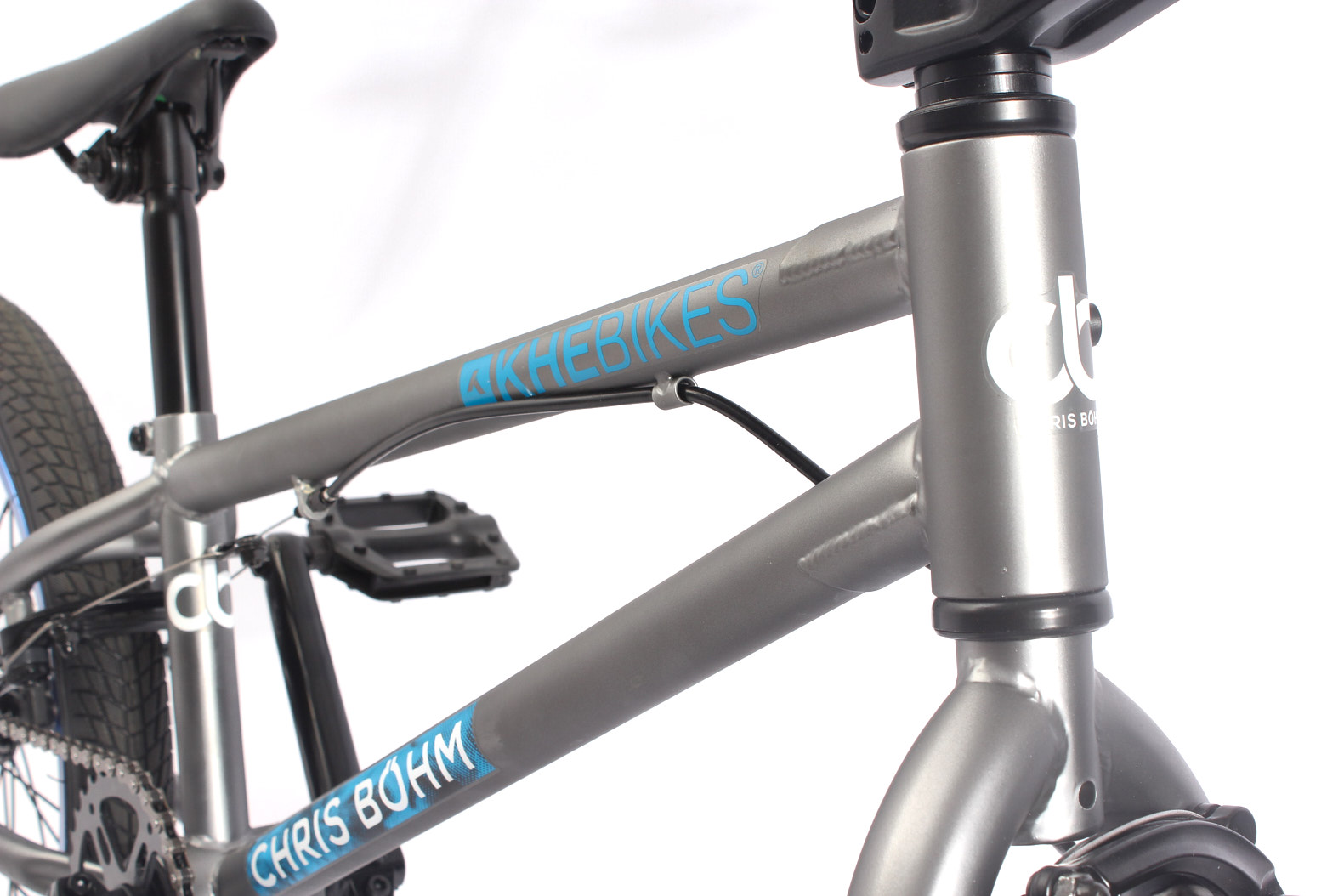

| Frame: | HiTen steel, top tube 19", RC 13.7", HT 75° |
|---|---|
| Fork: | HiTen, with short offset 18mm |

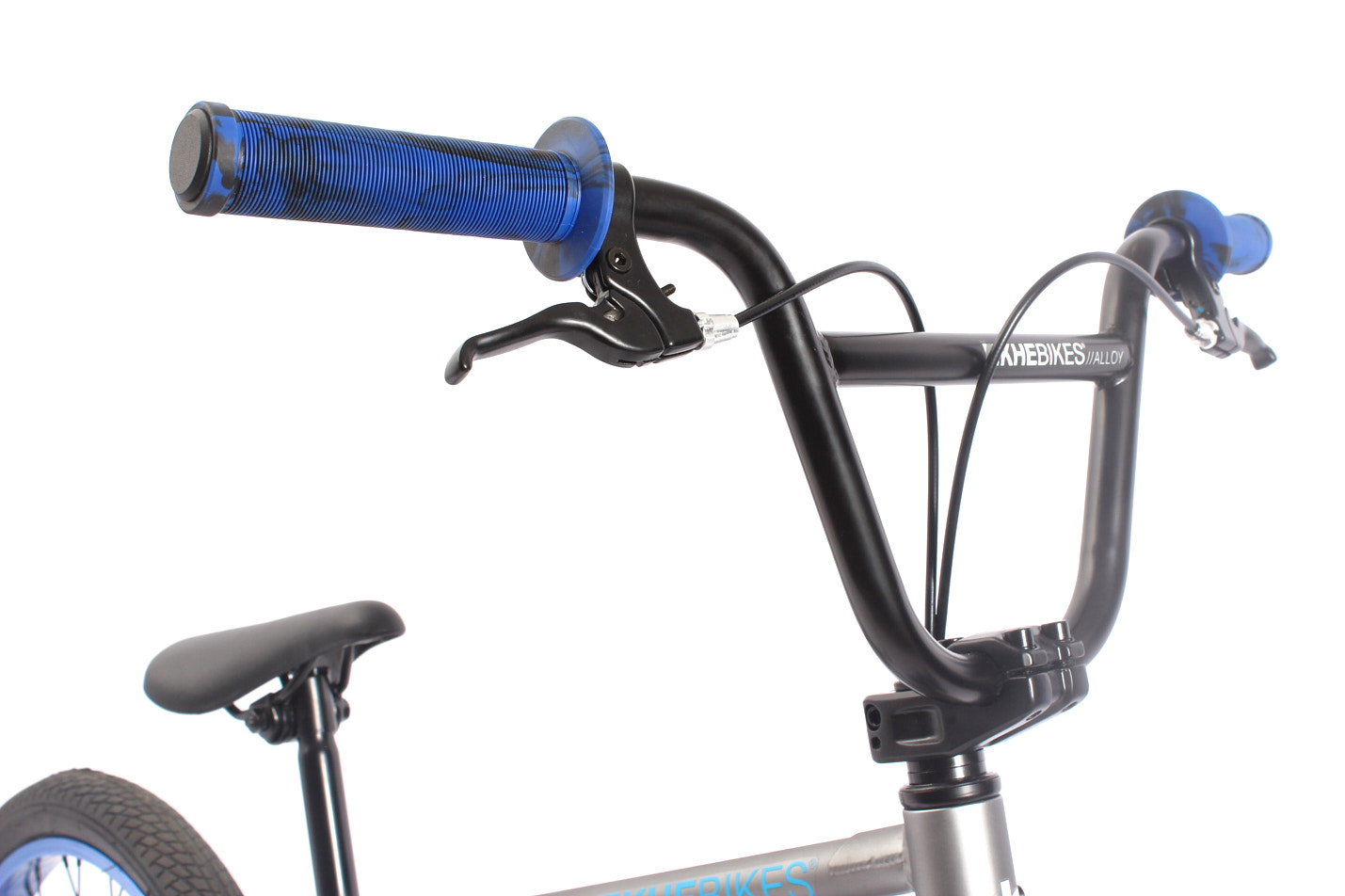

| Handlebars: | HiTen, 2-piece, 8" rise |
| Headset: | 1 1/8“ |

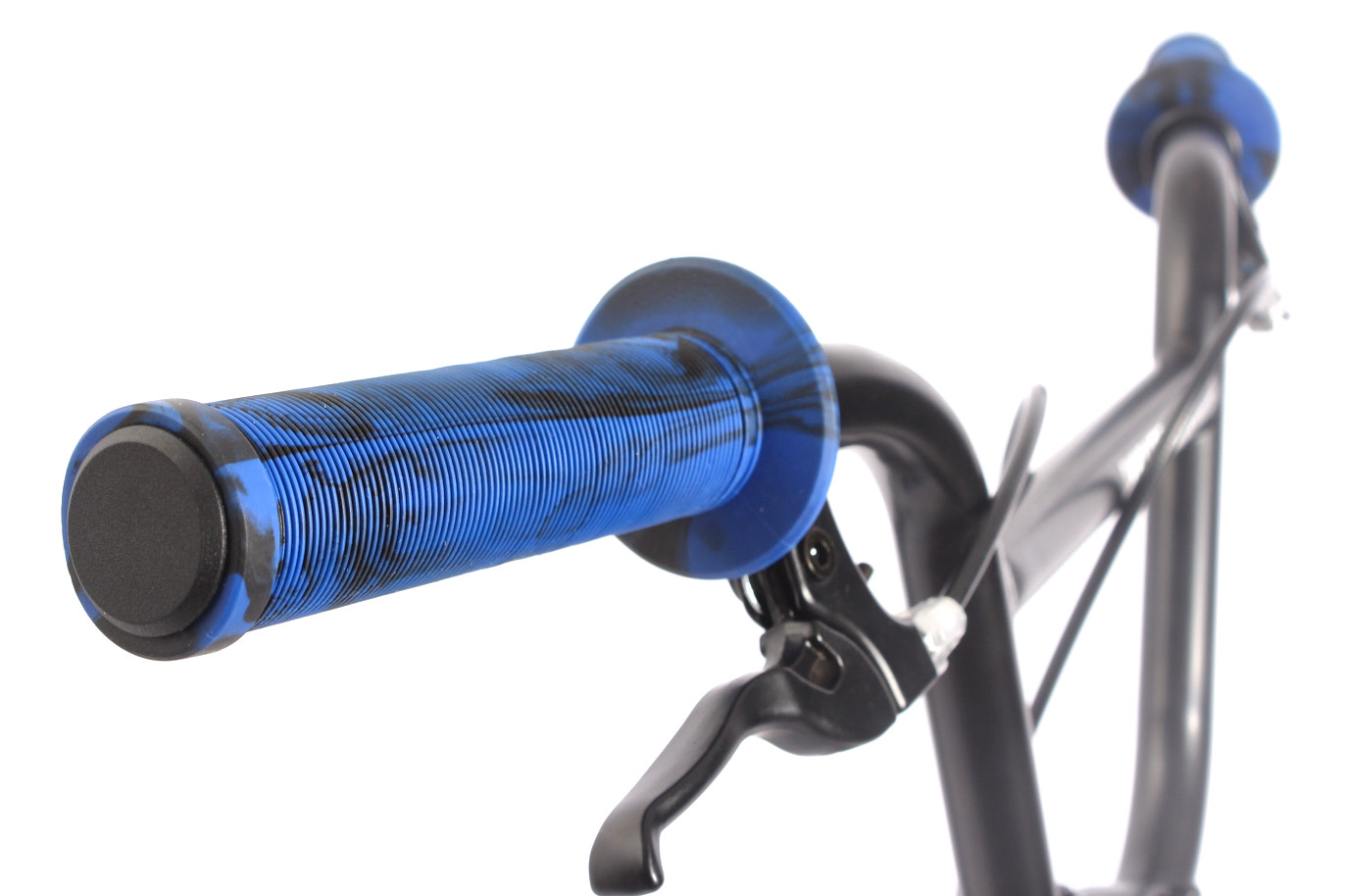

| Brake levers: | for U-Brake |

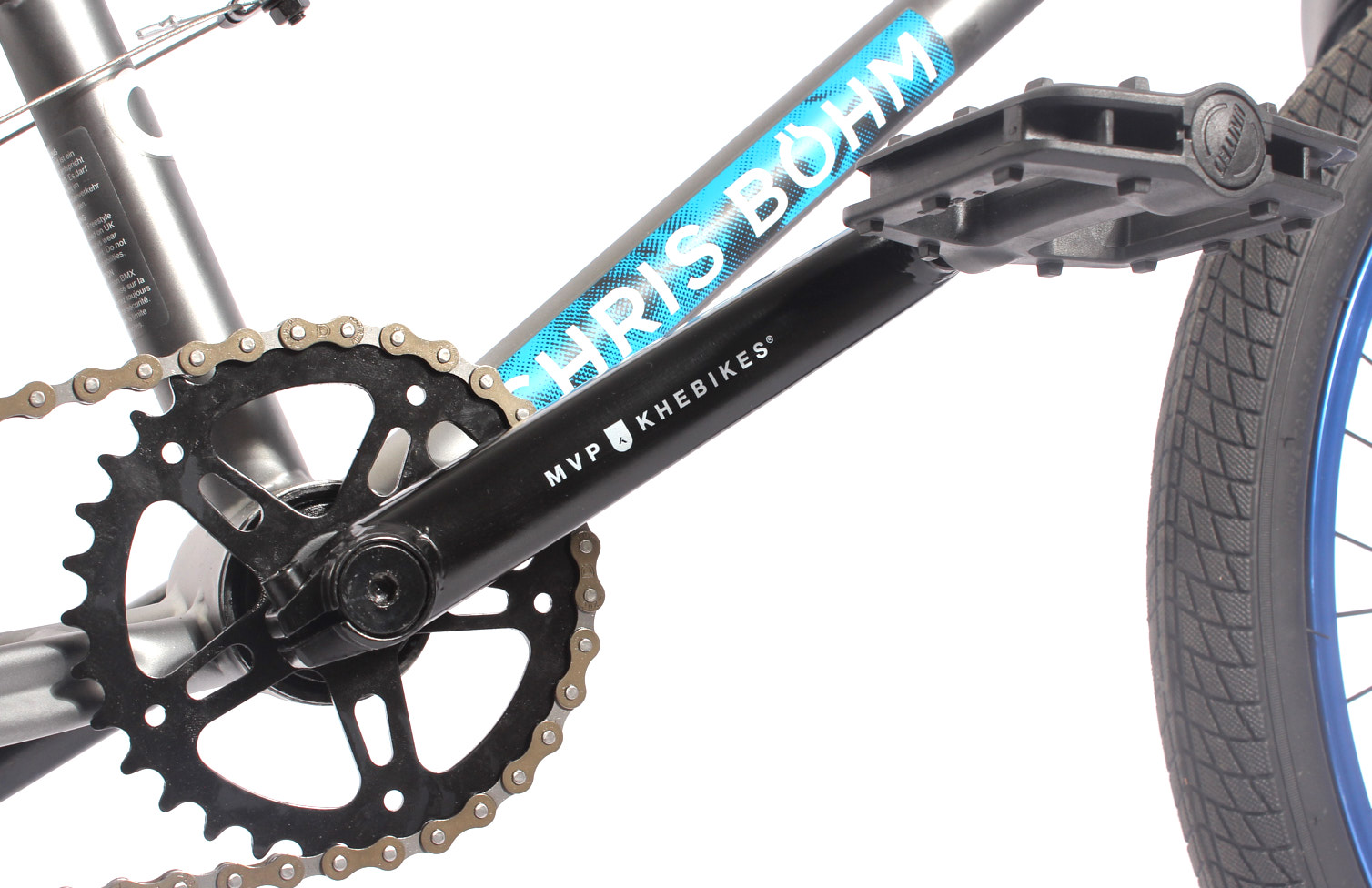

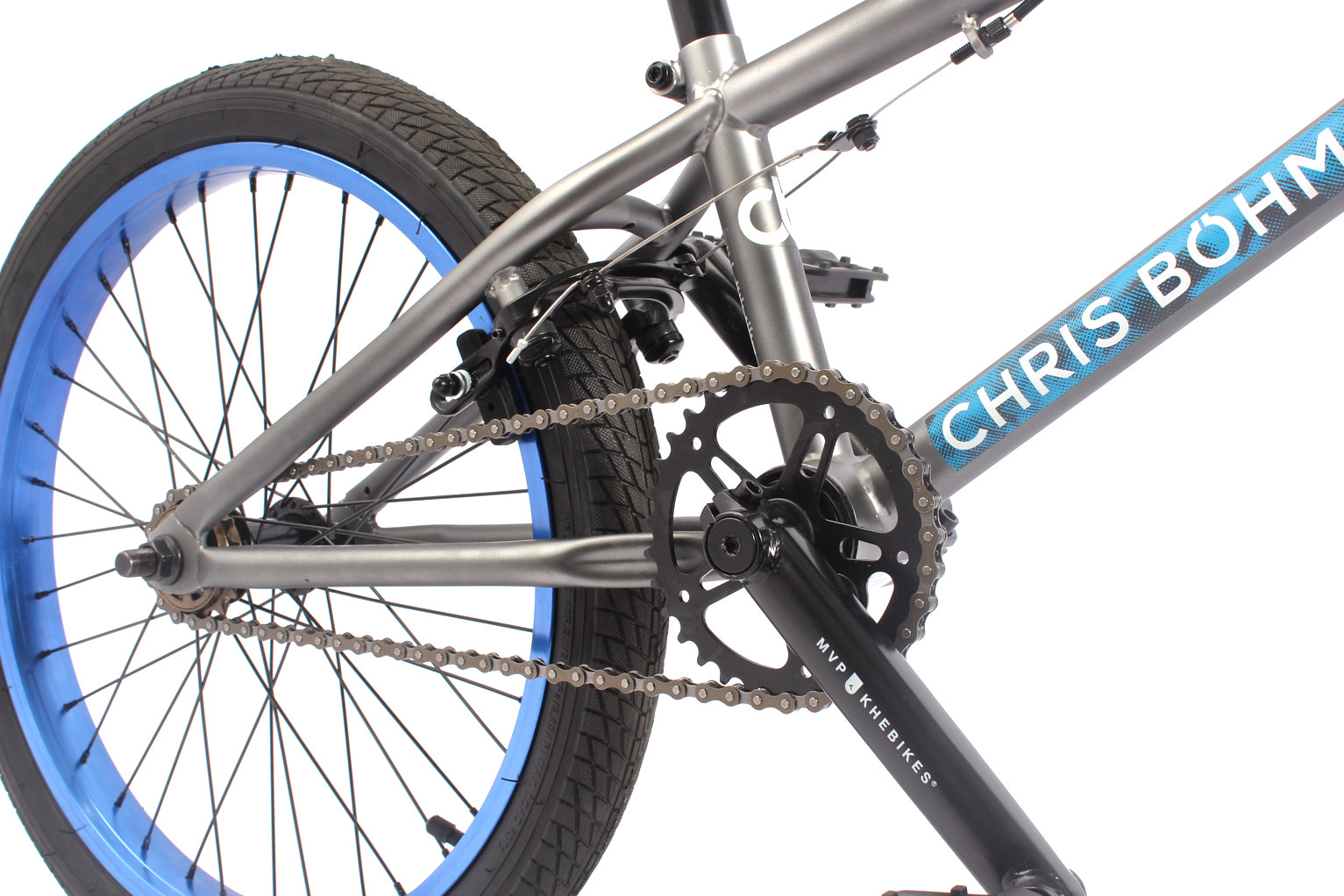

| Crank: | MVP 3-piece CrMo cranks, 8 spline axle, 170mm |
| Chainring: | 32T |
| Chain: | YBN |
| Saddle: | padded, adjustable tilt |
| Seat clamp: | Integrated |
| Brake: | U-Brake |

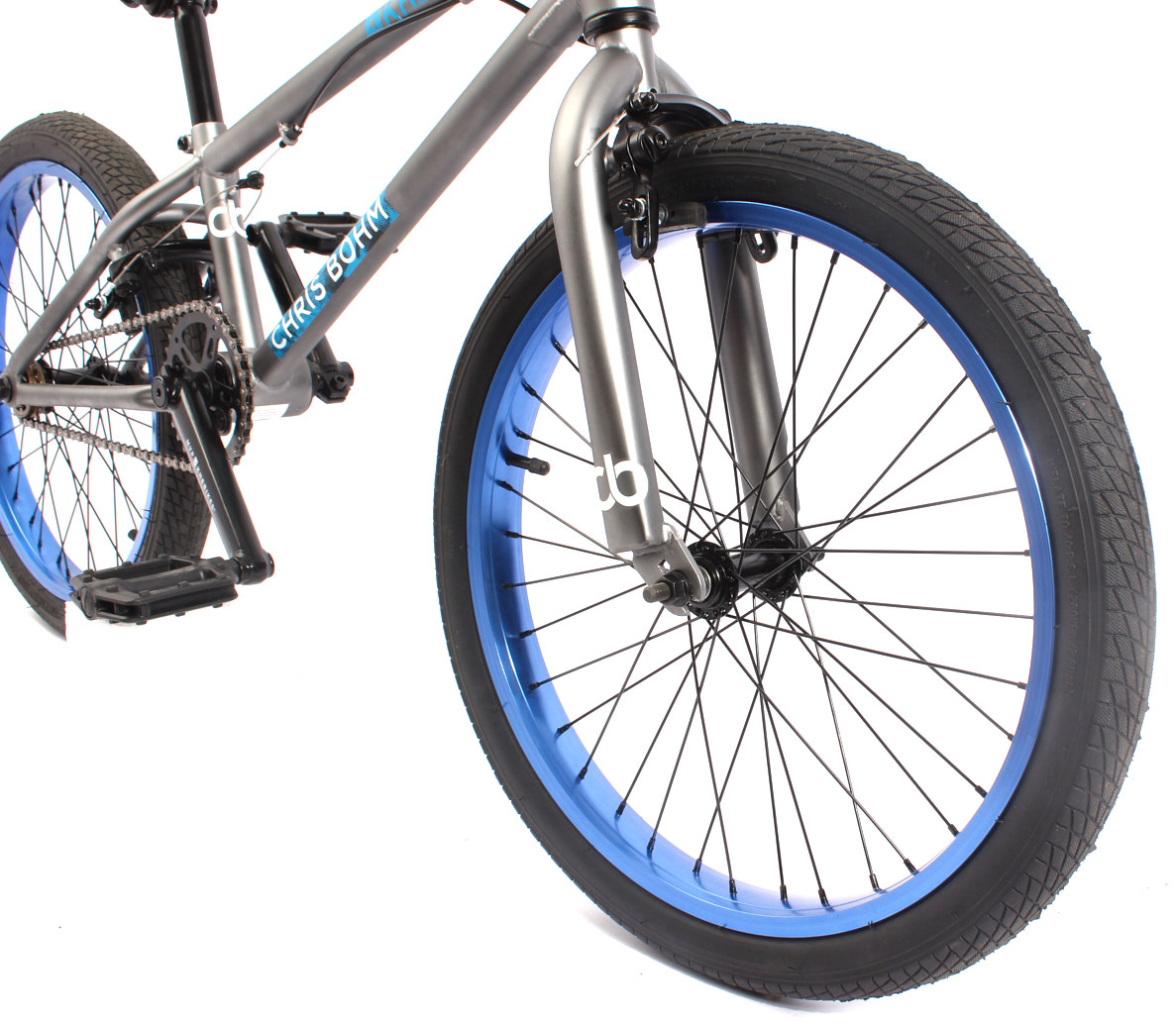

| Front wheel: | KHE BIG400 rim blue anodised, 36 spoke hub, 10mm axle |
| Rear wheel: | KHE BIG400 rim blue anodised, 36 spoke hub, 16T freewheel, 14mm axle |
| Tyres: | 20" x 1,95" |
| Category: | Outlet BMX Bikes N1 - Returns; shipping only by service providers |
| Size: | 20 "; 4'7" - 5'7" in |
| Colour: | Anthracite |
| Weight: | 24.91 lbs / 11,3kg |
Usage Instructions:
This BMX bike is designed for sporty and trick-based use, e.g., on skateparks, pump tracks, and similar surfaces.
Do not use the BMX bike on wet, slippery, or icy surfaces.
Not suitable for road traffic unless the bicycle is equipped with appropriate lighting and reflectors according to StVZO.
Maximum user weight: 80kg.
Safety Instructions:
Always wear a suitable helmet and protective gear (knee, elbow, and wrist guards).
Check all screws, connections, and components for secure fastening before each ride.
Regularly inspect the condition of the brakes and tires.
Ensure that the chain is properly tensioned and shows no visible damage.
Do Not Modify: Do not perform modifications such as drilling, cutting, or making any other changes to the BMX bicycle. Warranty is void in case of improper use.
Maintenance and Care:
Clean the BMX bike regularly and protect it from rust.
Use only original spare parts. Perform maintenance as outlined in the user manual.
Replacement Due to Wear: Regularly check components such as handlebars, frame, and fork of the BMX bike for cracks, deformations, or hairline fractures, especially at welds. Replace components of the BMX bike immediately if cracks or damage are found.
