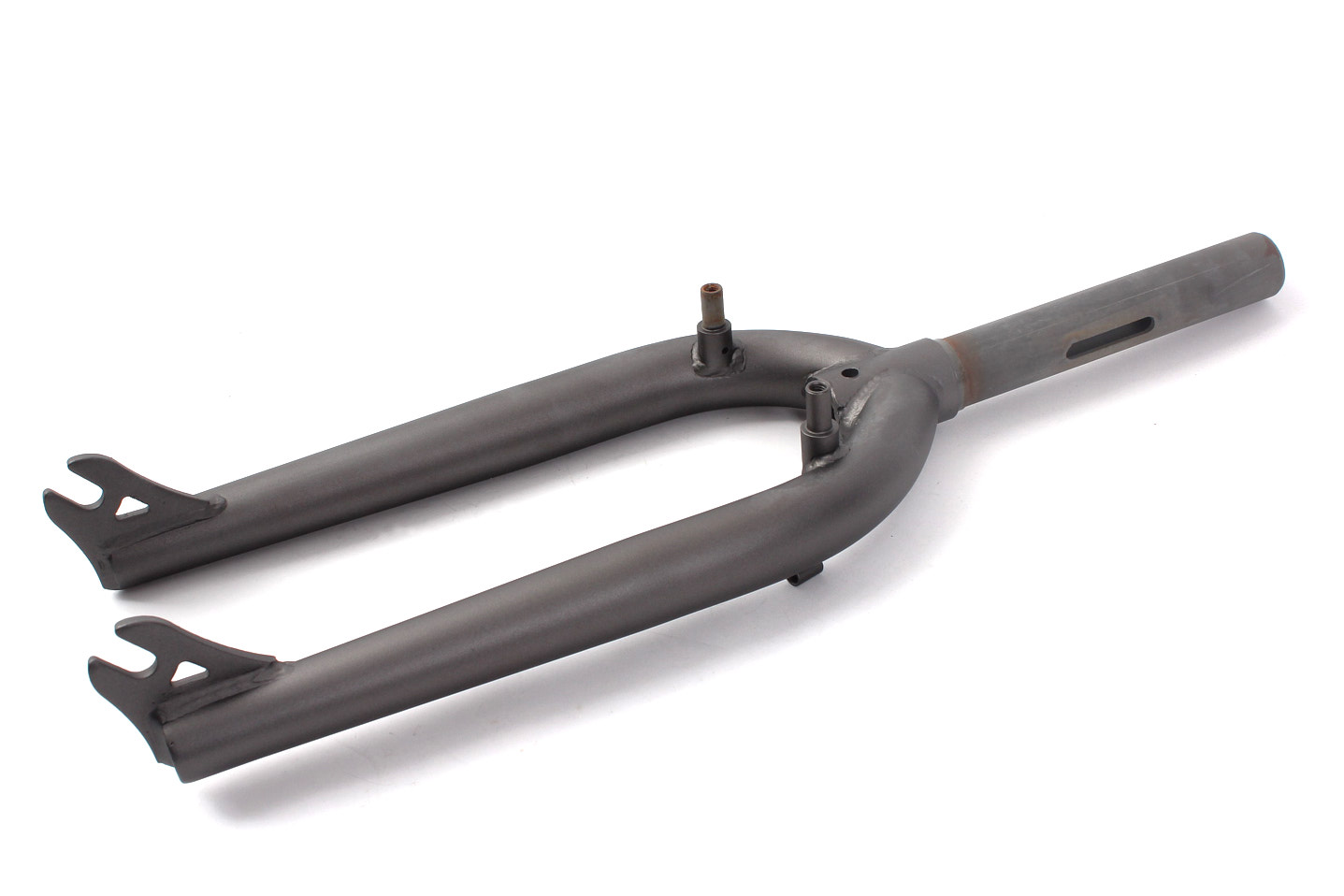

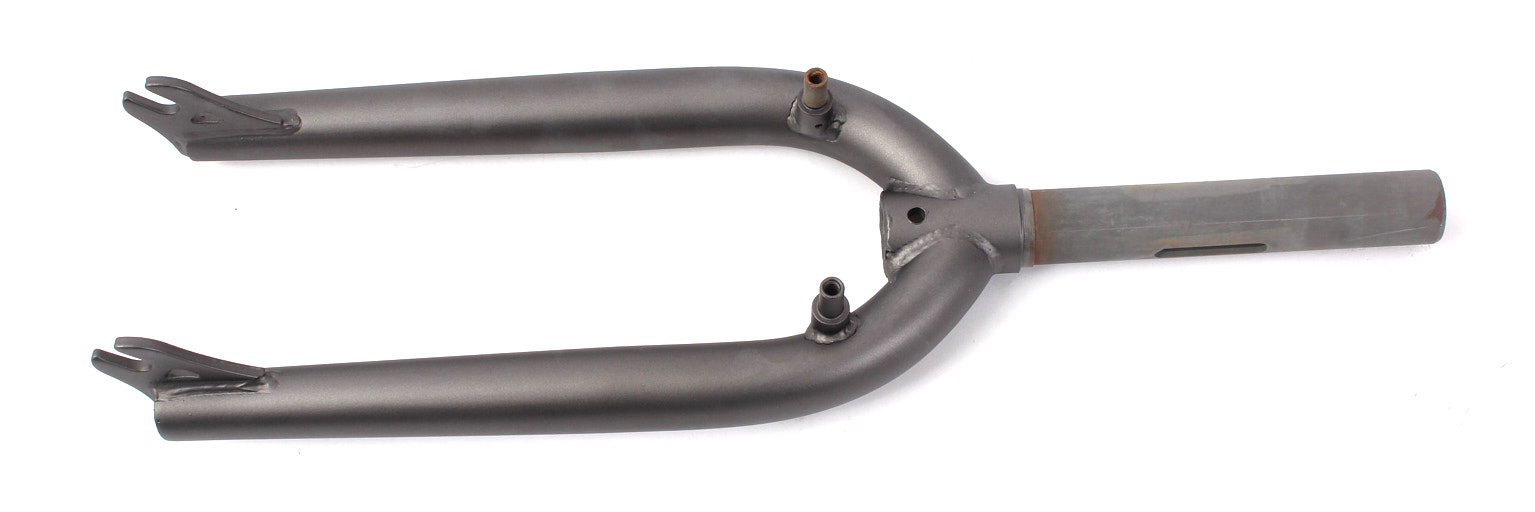

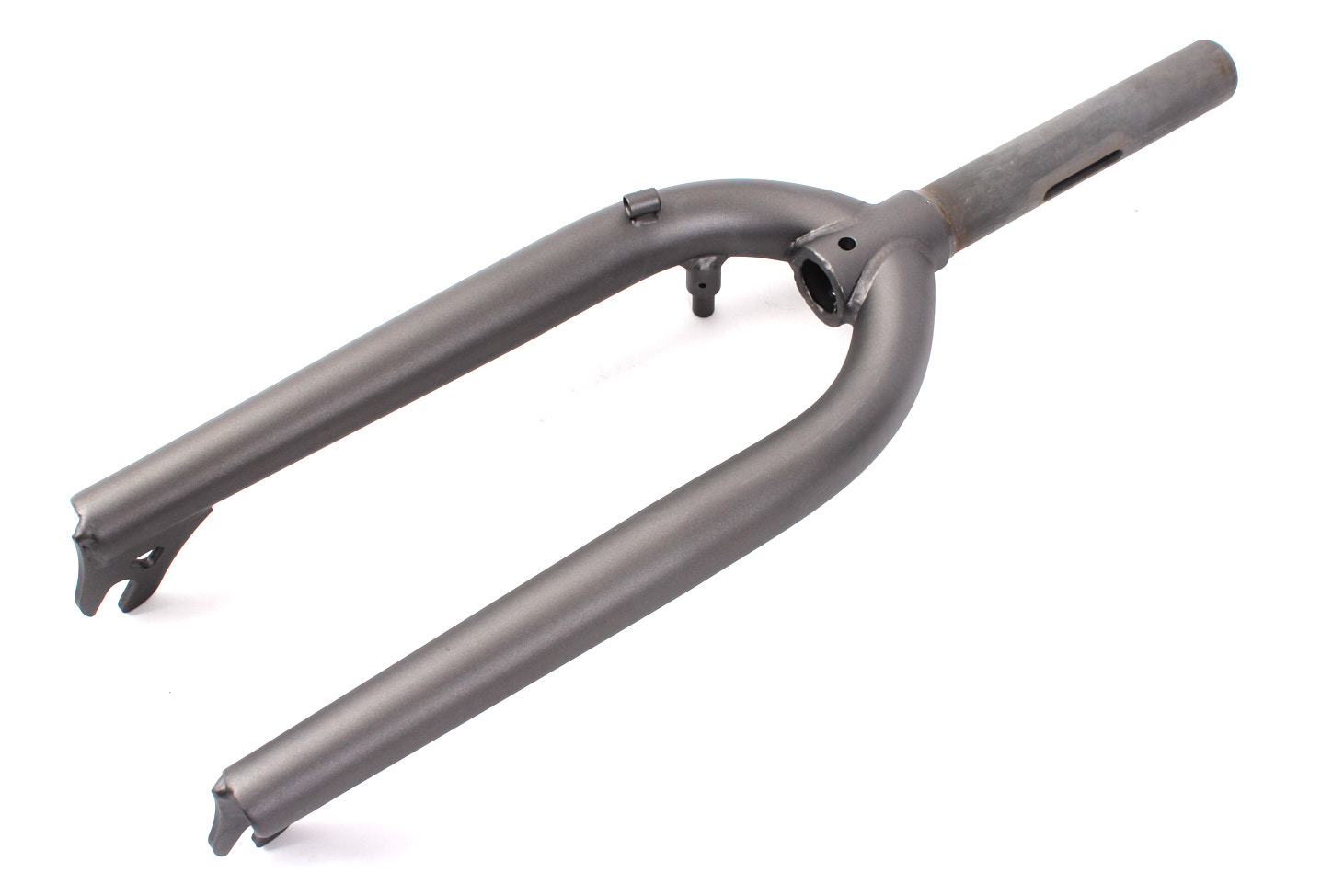

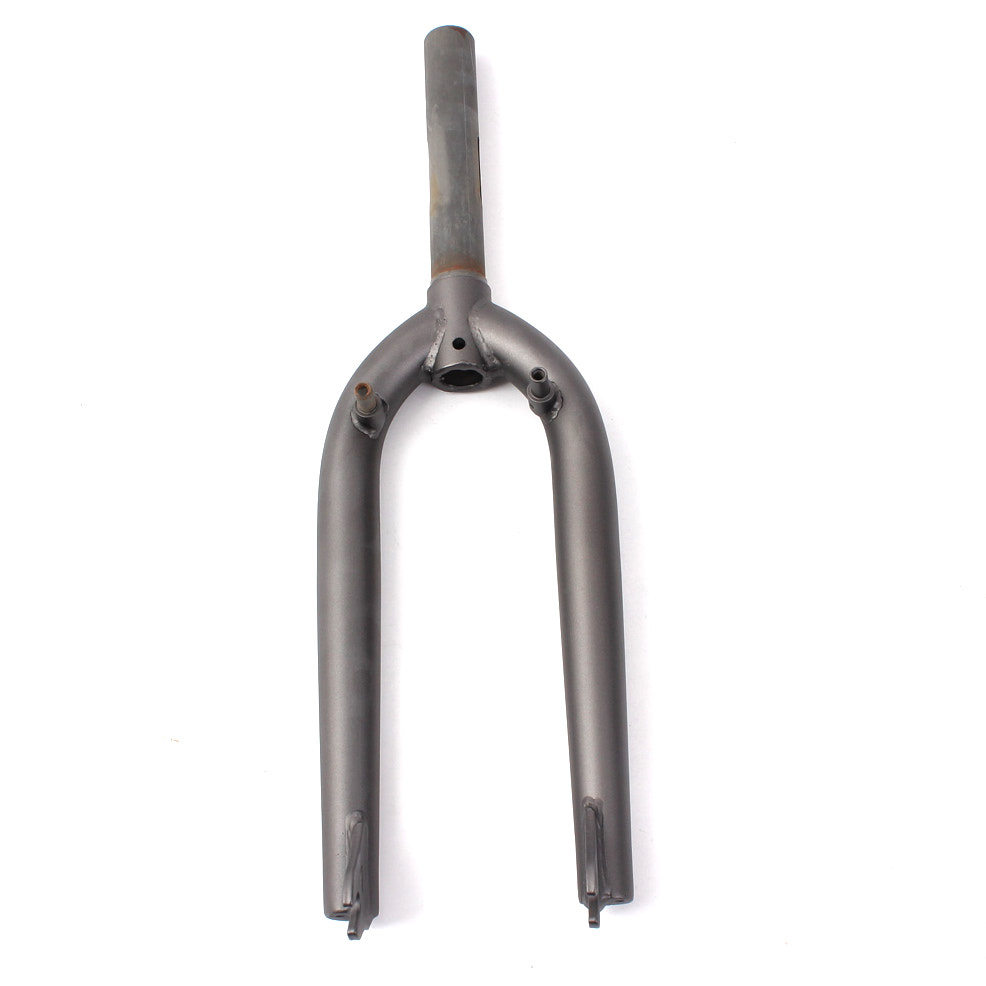

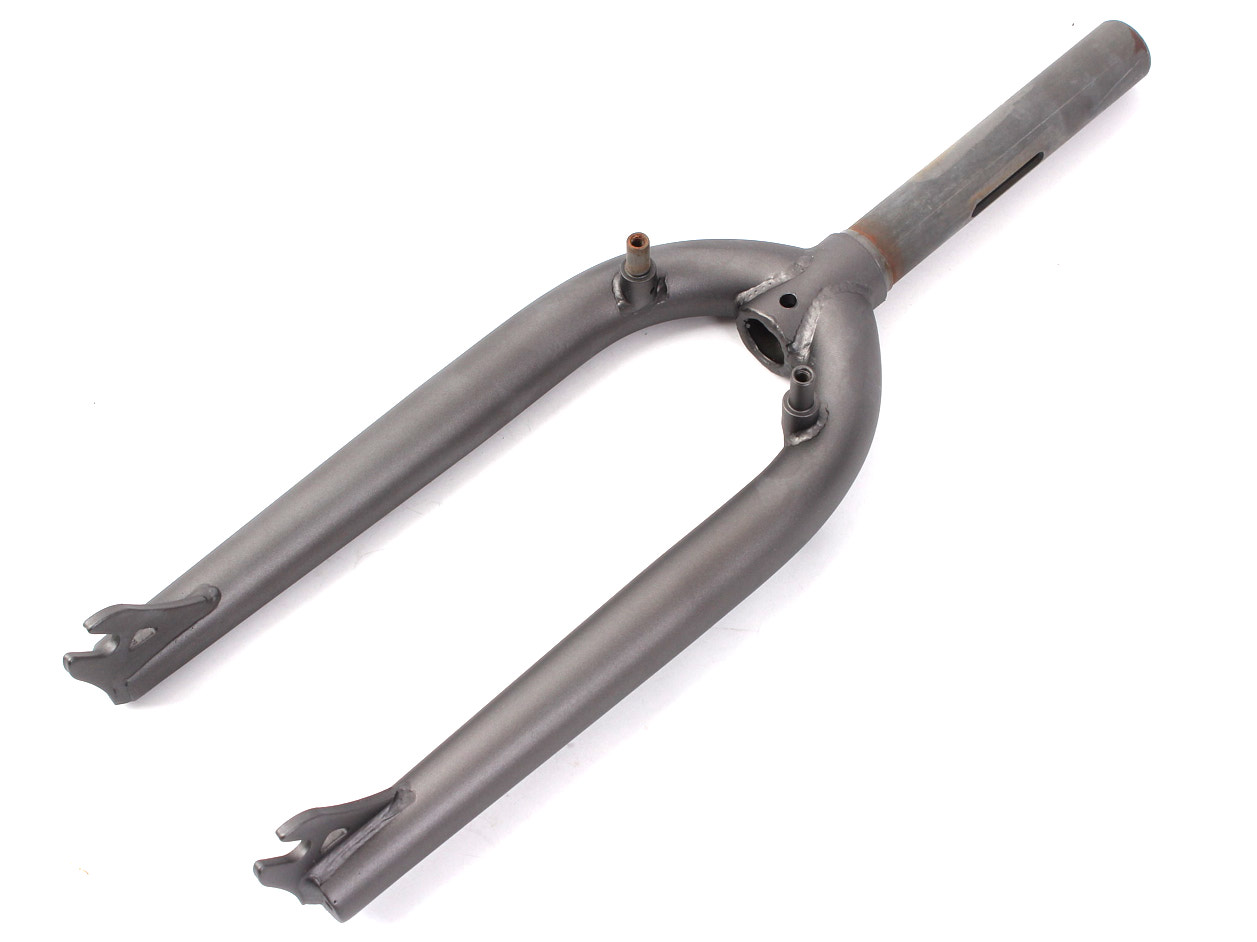

The KHE PLASM 20 Inch BMX Fork impresses with outstanding quality, a robust construction and a stylish anthracite finish. Equipped with U-brake mounts, it offers precise braking power directly on the rim – ideal for park and street riders.
Thanks to the integrated sidecut, the fork is Affix rotor ready but can also be used with standard braking systems and all BMX frames with a 1 1/8" head tube. This makes it highly versatile and perfect for riders who value flexibility and performance.
Product features:
- Suitable for BMX bikes with 20" wheels

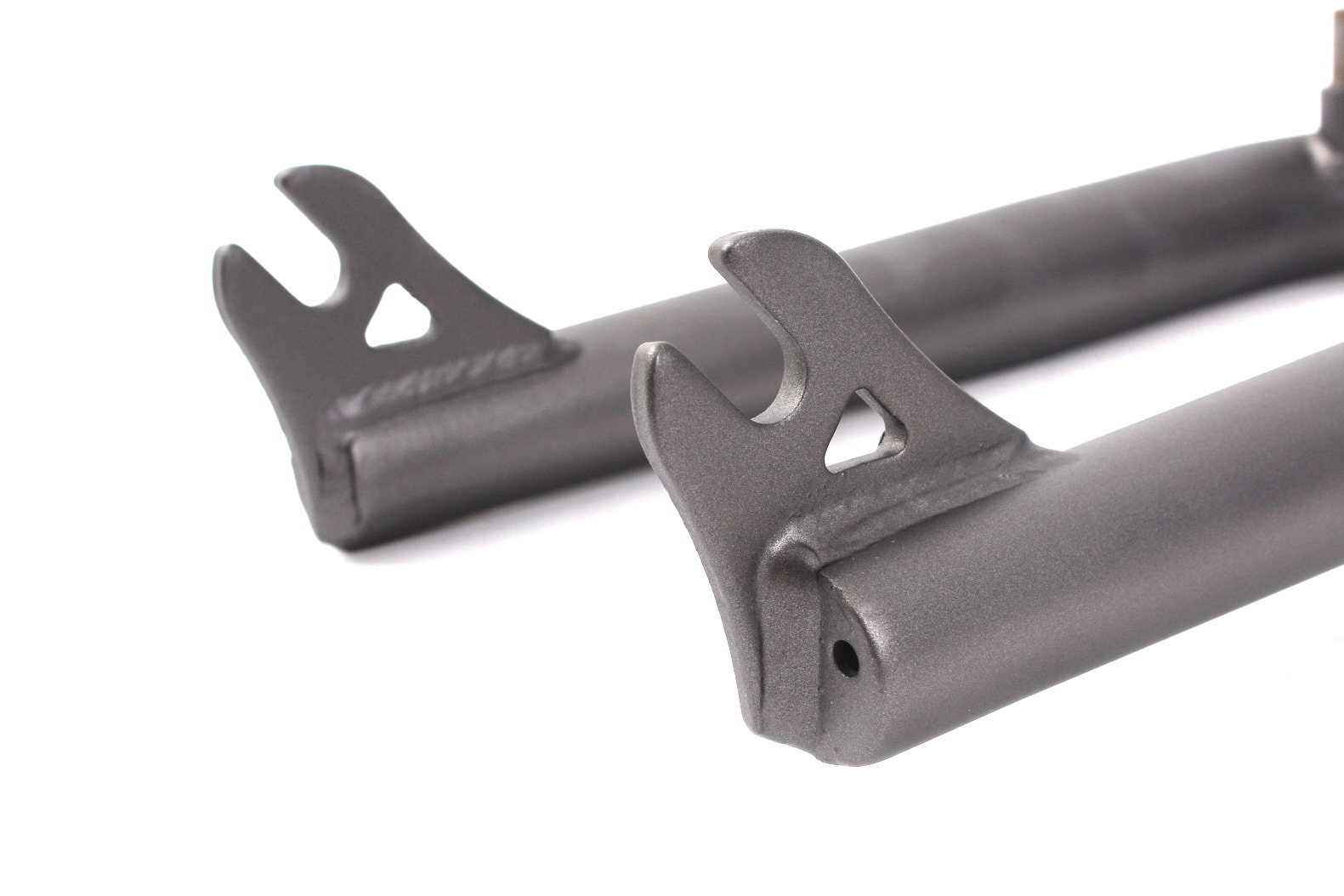

- With U-brake mounts for optimal braking performance
- Sidecut design: compatible with the KHE Affix rotor system
- Material: High-quality HiTen steel
- Colour: Anthracite
- Weight: 1140g ≈ 2.51 lbs
- Dropouts: 5mm wide, suitable for 10mm axles

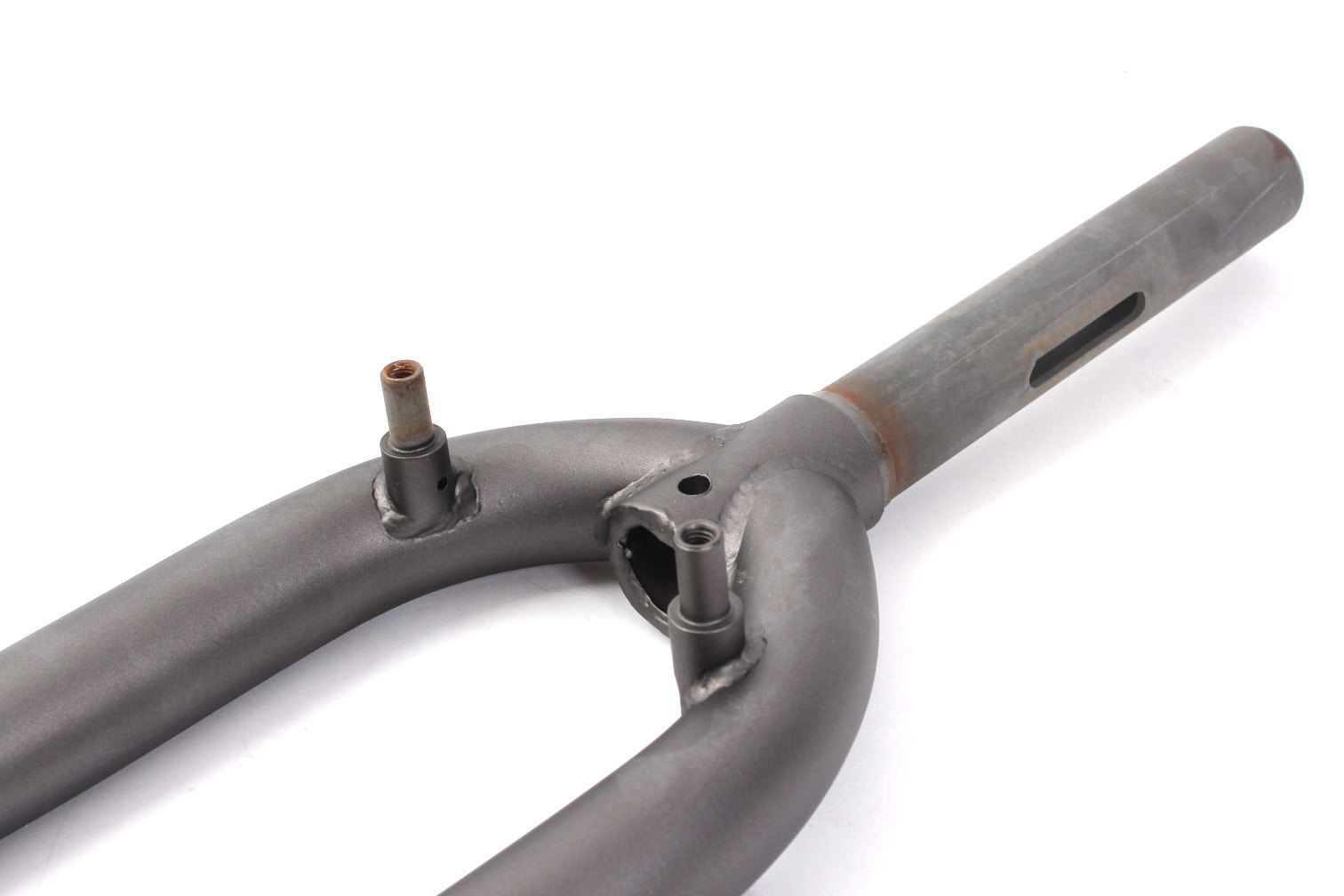

- Steerer tube diameter: 1 1/8"
- Steerer tube length: 160mm
- Offset: approx. 32mm
- Supplied without top cap bolt
| Material: | HiTen steel |
|---|---|
| Tire size: | 20 inch |
| Size: | For 20" |
| Colour: | Anthracite |
| Weight: | 2.51 lbs / 1140 g |
| Dropouts: | 5mm wide, only for 10mm axles |
| Shaft diameter: | 1 1/8" |
| Shaft length: | 6.3" / 160mm |
| Leads: | approx. 1.26" / 32mm |
Product Safety Instructions for BMX Fork KHE PLASM 20 Inch for U-Brakes:
Material Quality: This steel fork is ideal for light tricks, moderate jumps, and technical freestyle riding on the street and in the park.
Compatibility: Ensure that the fork fits the BMX frame and stem clamp (diameter of the fork steerer and head tube).
Secure Installation: Check that the fork is securely mounted, especially at the stem and headset, to prevent wobbling steering movements.
Regular Inspection and Maintenance: Regularly inspect the fork for cracks, deformations, or other damage, especially after falls or hard landings. Do not perform any modifications such as drilling or cutting, as these actions can weaken the structural integrity and make the fork unstable. If the fork shows cracks or damage, replace it immediately.
