KHE 2025 BMX Series
With over 35 years of experience, KHEbikes stands for top-level BMX design and innovation. The new KHE STYLUS V2 is a true highlight in the 2025 flatland line – ultra-light, stylish and built with high-end components. Perfectly designed for advanced riders and flatland pros.
KHE STYLUS V2
The brand-new KHE STYLUS V2 goes back to KHE’s flatland roots and is the lightest complete flatland BMX bike available today. Thanks to its aluminium frame, handlebar and newly developed fork (with CrMo steerer tube), we were able to reduce weight to a minimum – without compromising stability or control.
Geometry: Toptube 18.9", Chainstay 12.75", Headtube angle 75 degrees, Seattube angle 71.5 degrees. Equipped with pro-level parts like the KHE Greyhound Freecoaster hub, integrated headset, sealed Euro bottom bracket, 48T CrMo axle with 152mm CrMo arms, 25T alloy sprocket, KHE double wall rims and the patented KHE Affix rotor – this bike is contest-ready out of the box.

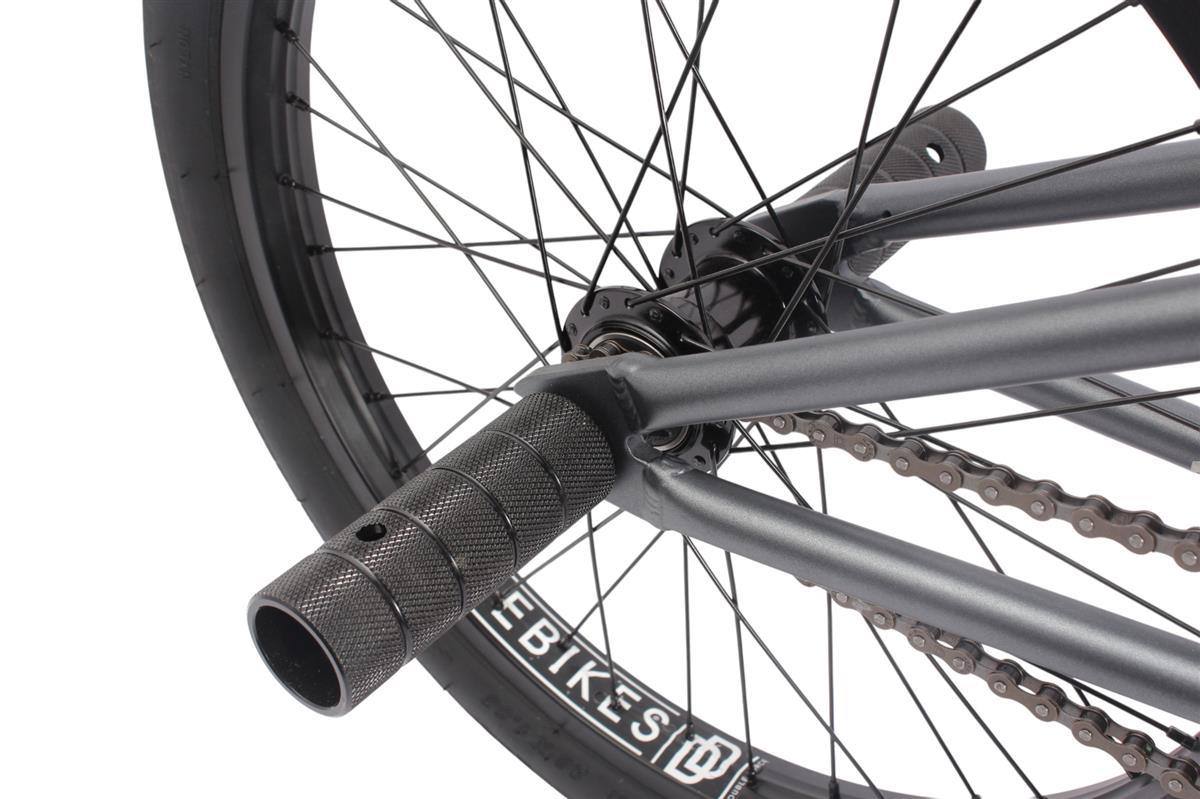

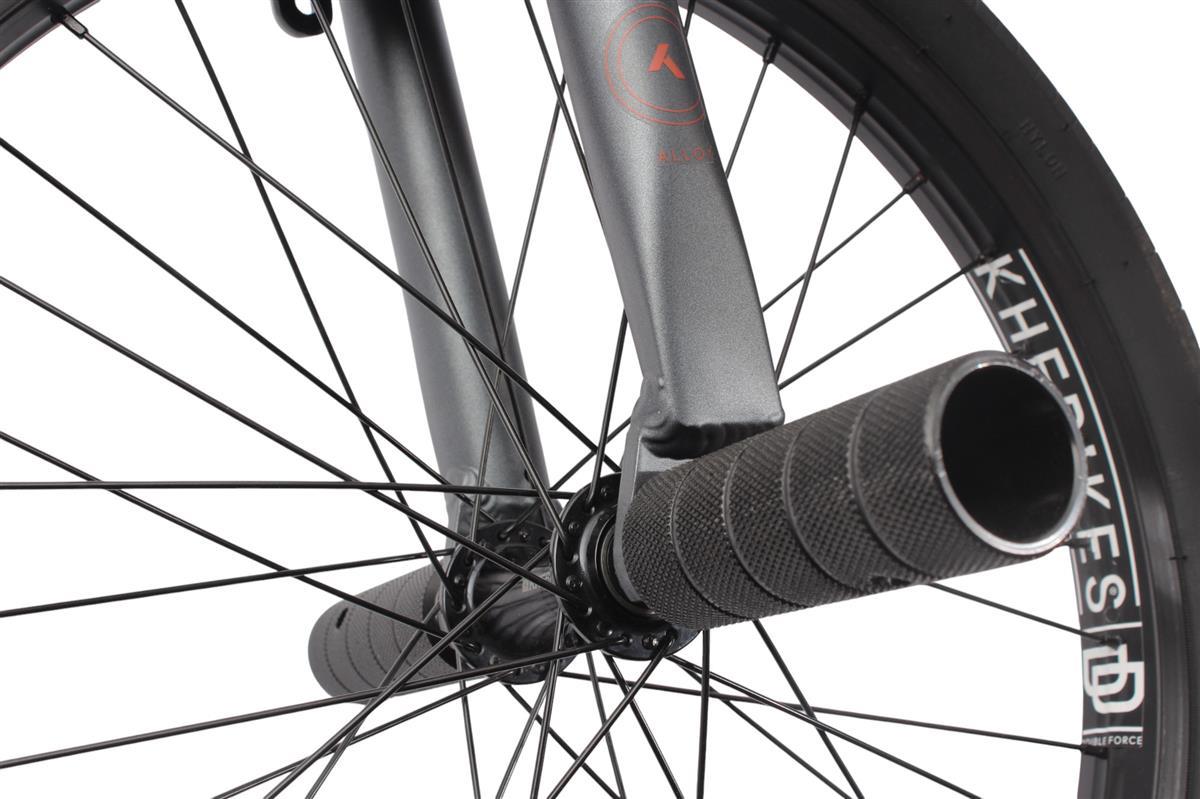

It also comes with two pairs of CNC-machined aluminium pegs with knurling – for maximum trick options.
Weight: 19.62 lbs brakeless (incl. pegs) / 21.82 lbs with brakes, rotor, cables & pegs
The frame and fork allow removable brake mounts, cable guides and brakes – perfect for brakeless setups.
Recommended rider height: 4'9" – 6'3" (145–190 cm)
Max rider weight: 265 lbs
Riding style: Flatland
Why choose the KHE STYLUS V2:
- Direct from the manufacturer – best price guaranteed
- At just 19.62 lbs, it’s the lightest 20" flatland BMX complete bike
- Patented KHE BMX rotor for 360-degree barspins
- Aluminium frame, bar and fork legs, CrMo steerer tube
- Top-tier KHE Greyhound Freecoaster rear hub
- Brakeless-ready: mounts, cables and brakes are removable
The BMX bike comes approx. 90% pre-assembled. You’ll find the manual under “Datasheets” and the assembly video under “Video”.
| Frame: | KHE 6061 aluminum, 14 mm dropouts, top tube 18.9", RC 324 mm (12.75"), HT 75°, ST 71.5°, integrated 1 1/8" |
|---|---|
| Top tube length: | 18,9" (480mm) |
| Fork: | KHE 6061 aluminum tubing with CrMo 1 1/8" steerer tube, 10 mm dropouts / 7 mm wall thickness, 15 mm offset |
| Handlebars: | KHE 6061 aluminum, 736 mm (29") width, 228 mm (9") height, 10° backsweep, 1° upsweep |
| Stem: | KHE Top Loader 40mm forward travel |
| Headset: | Intigrated headset with indusriel bearings |
| Rotor: | Patented KHE AFFIX 360 degree rotor |
| Handles: | Lock On 140mm high quality rubber with aluminum clamps and KHEbikes laser logo |
| Brake levers: | Aluminum with adjusting screw |
| Rear brake: | KHE RADIUS Aluminum U-Brake |
| Front brake: | KHE RADIUS Aluminum U-Brake |

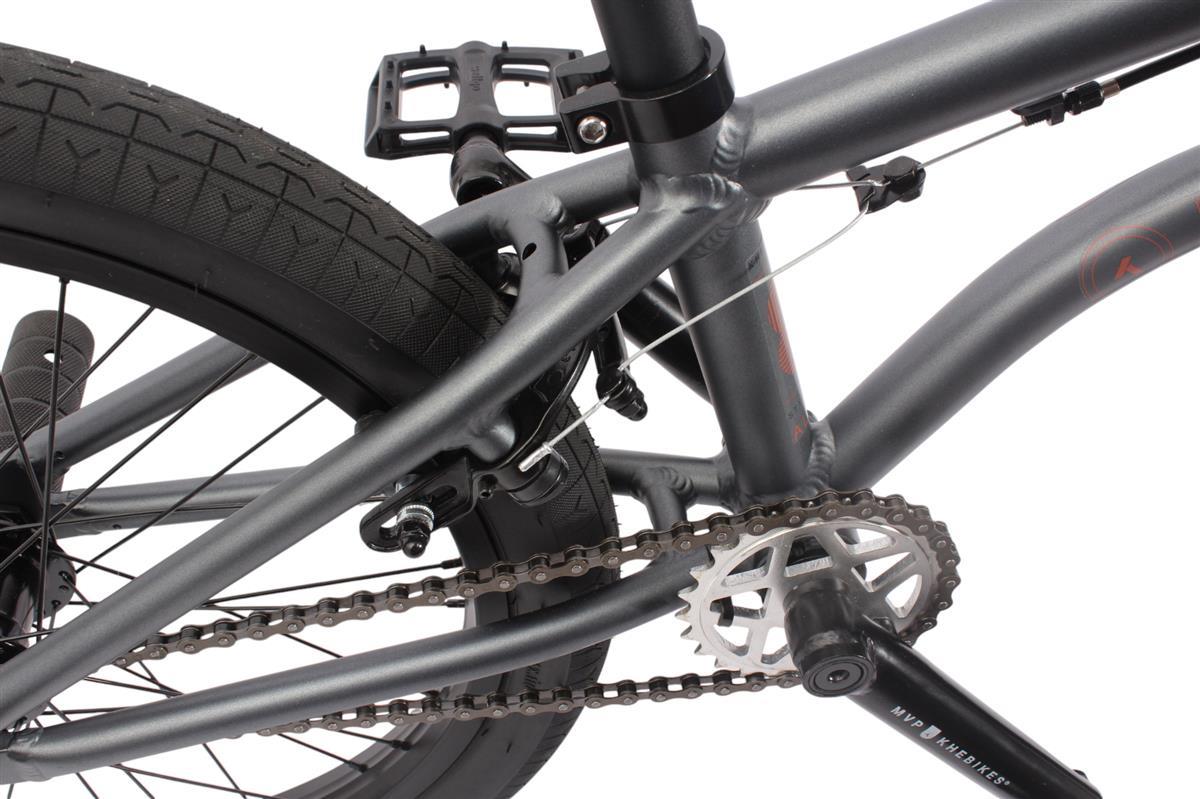

| Crank: | KHE 3-piece CrMo 48-tooth hollow crank, 152 mm |
| Chainring: | 25 teeth aluminum |
| Chain: | YBN CN ST 1/2 x 1/8“ |
| Saddle: | KHE Watanabe PVC |

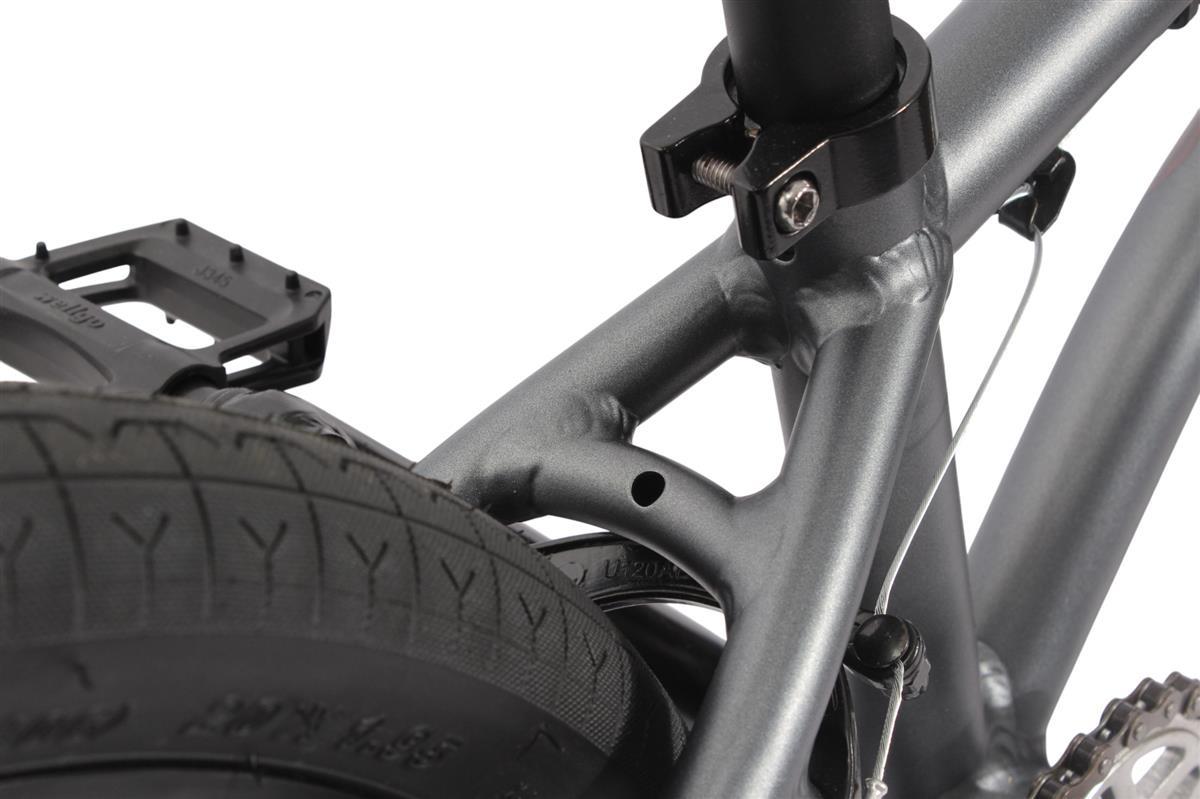

| Seatpost: | Patented clamp, aluminum 27.2 × 300 mm |

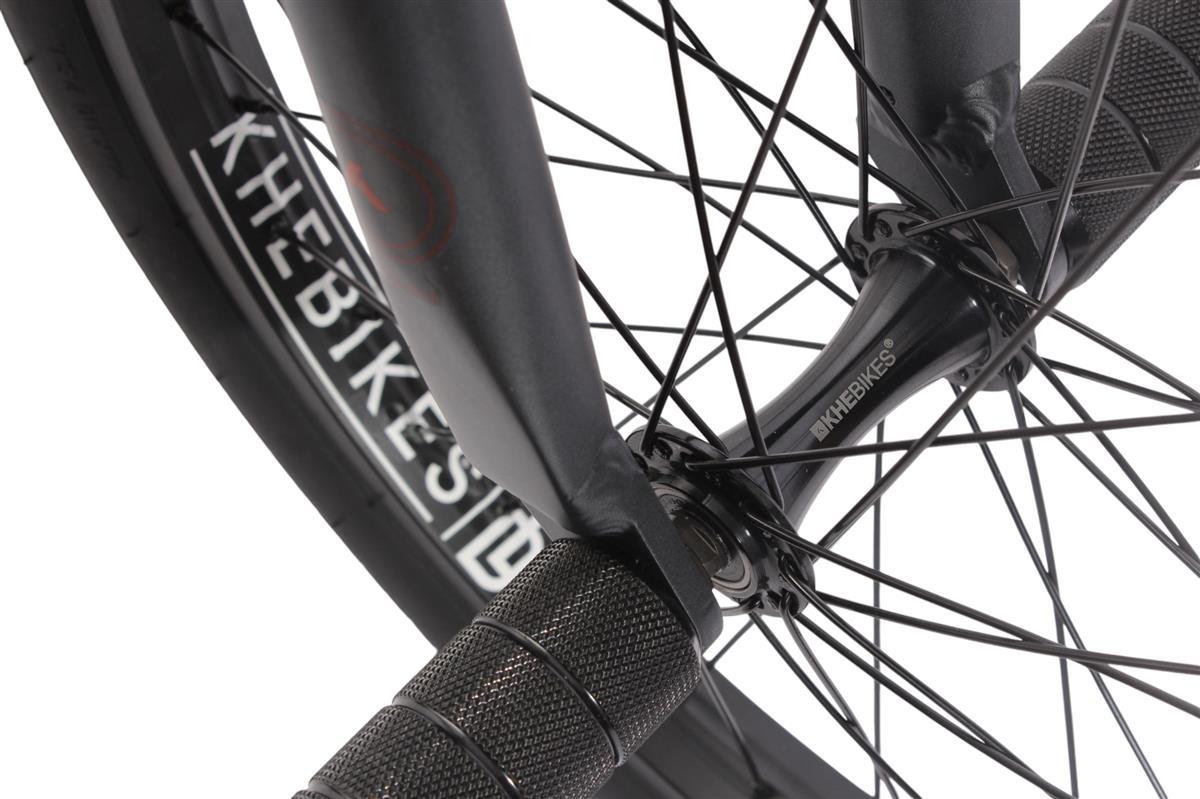

| Front wheel hub: | Aluminum, 3/8” (10mm) x 155mm axles, S/B industrial bearings |

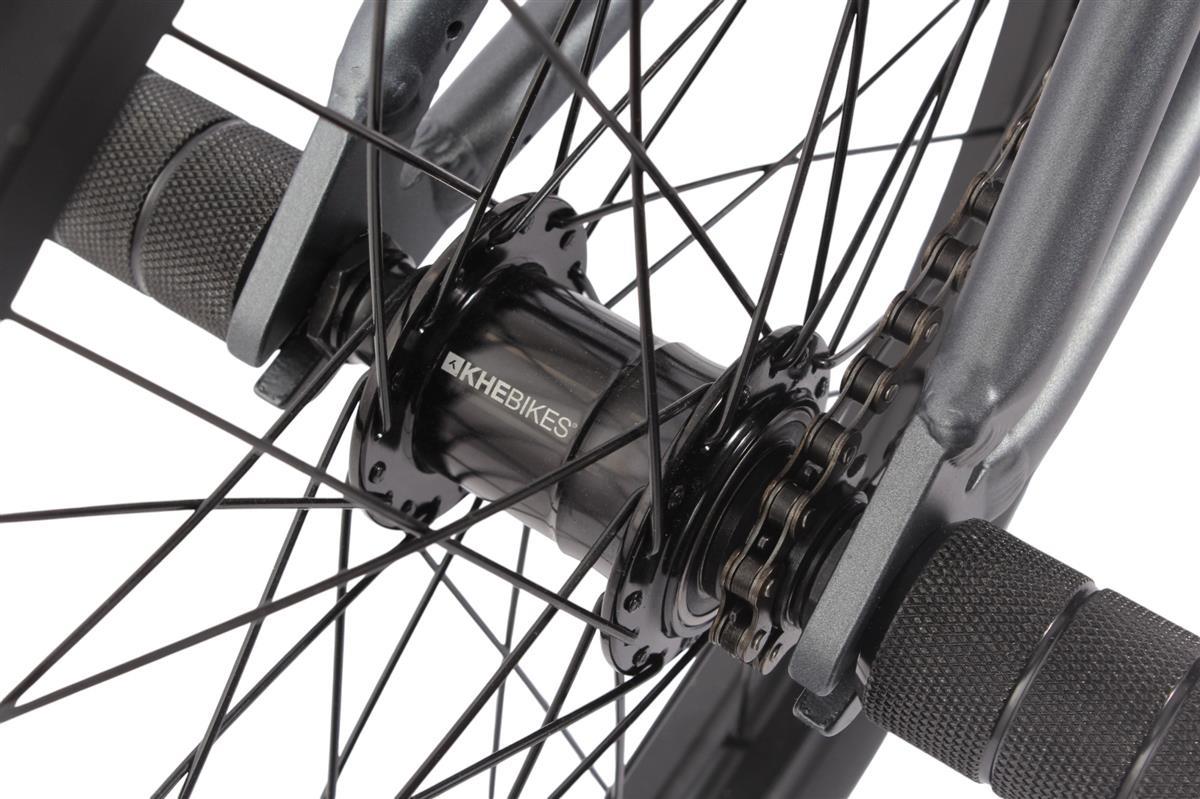

| Rear wheel hub: | KHE GREYHOUND cassette 9T, sealed industrial bearing, 170mm 14mm male, 36 holes |
| Rim: | 20 inch double chamber aluminum, 36 hole |
| Tyres: | KHE ACME 20 inch × 1.95" |
| Material: | 6061 T6 Aluminium |
| Tire size: | 20 inch |
| Model Year: | 2025 |
Ensure Compatibility:
This BMX bike is specifically designed for flatland use. It is not suitable for downhill, street, or dirt riding. The maximum rider weight must not exceed 120 kg. Suitable for riders with a height of 145 to 190 cm.
Assembly: All components such as rotor, brakes, brake levers, cables, pegs, and axle connections must be professionally installed and checked for secure fit before use. Ensure pegs are tightly screwed in and the handlebar is properly fastened in the stem.
Care and Maintenance:
Clean the bike regularly with a damp cloth. Do not use harsh cleaning agents. Regularly check the bearings, rotor function, and tire condition.
Store the bike in a dry place protected from weather.
Replacement in Case of Wear: If there is visible wear or damage (e.g., to the handlebar, fork, wheels, or drivetrain), replace the affected components immediately. Using damaged parts can lead to loss of control and injury.
