BMX bottom bracket set KHE MID BB 8T

$19.95*

% $27.30* (26.94% saved)

Available, delivery time: 5-10 business days **

High quality KHE MID BB bottom bracket set with CrMo axle, spacers and sealed aluminium bearings.
Product number: M350175
EAN: 4260436056538
Product information "BMX bottom bracket set KHE MID BB 8T"

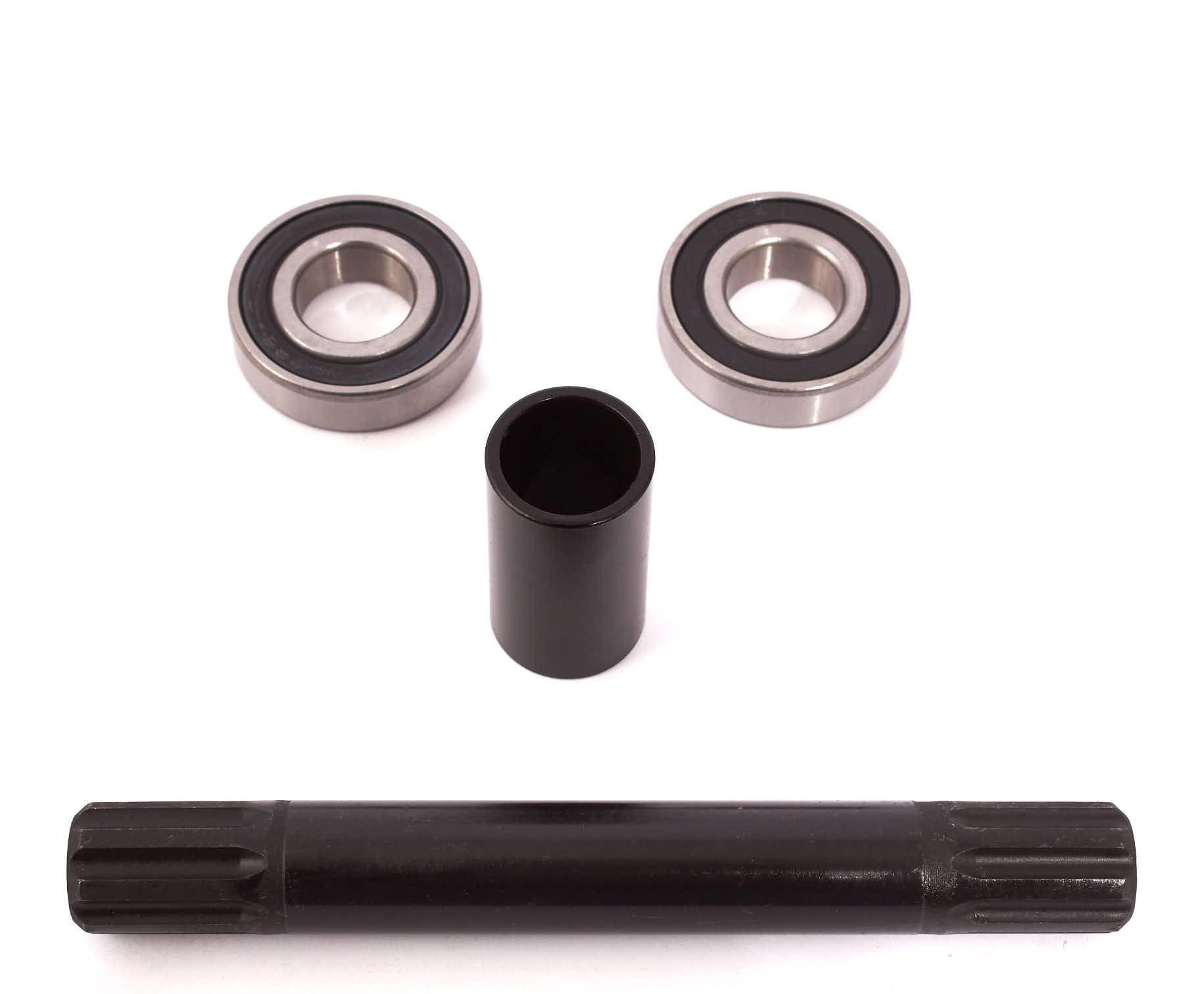

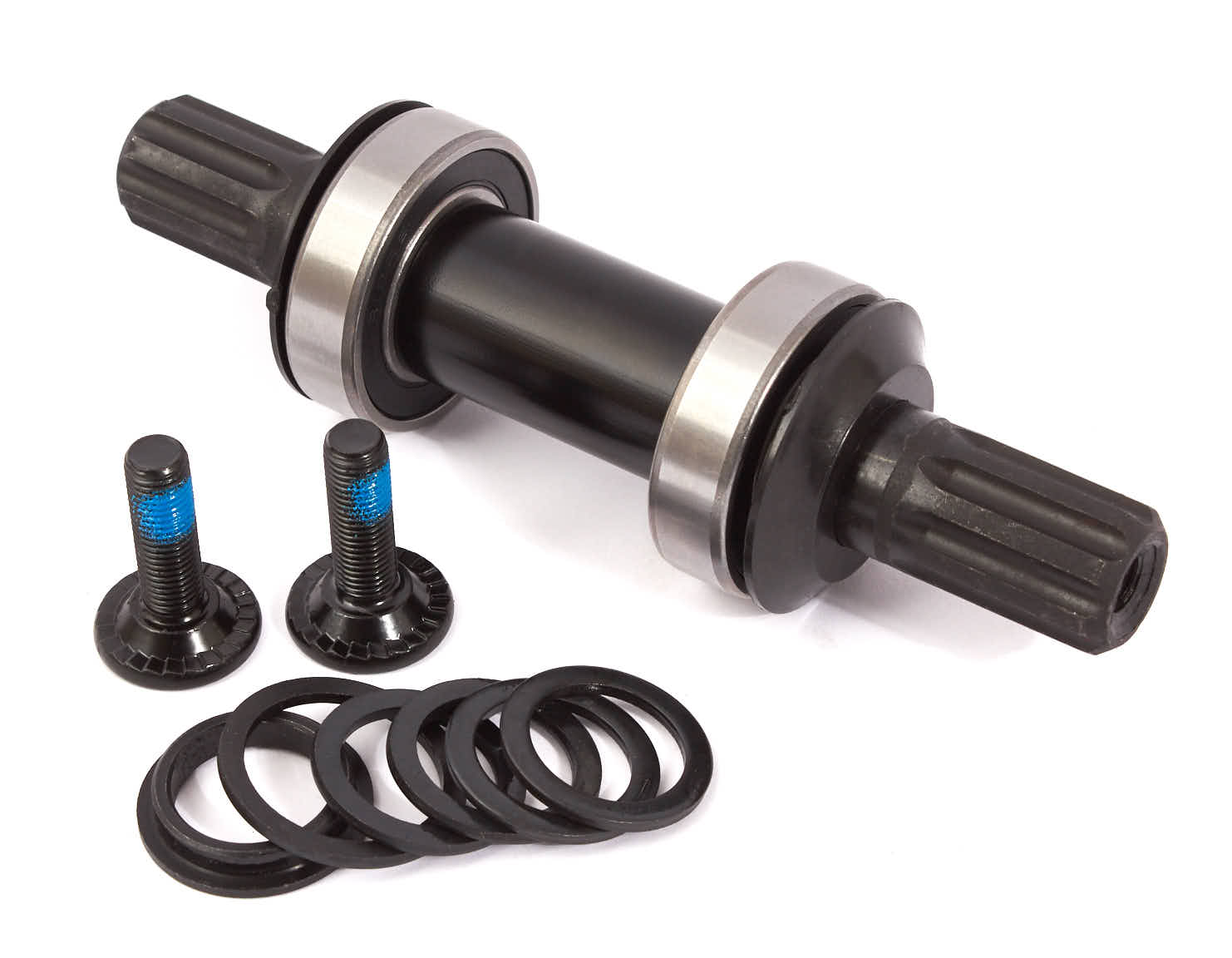

KHE Bottom Bracket 8 Teeth with 19mm CrMo Axle

This bottom bracket set includes a high-quality 19mm CrMo axle and smooth-running industrial bearings. Matching 8T crank arms in Oil Slick or Black are available in our shop.

Technical Data:

  • Brand: KHE
  • 8-tooth axle (8T)
  • Axle diameter: 0.75" (19mm)

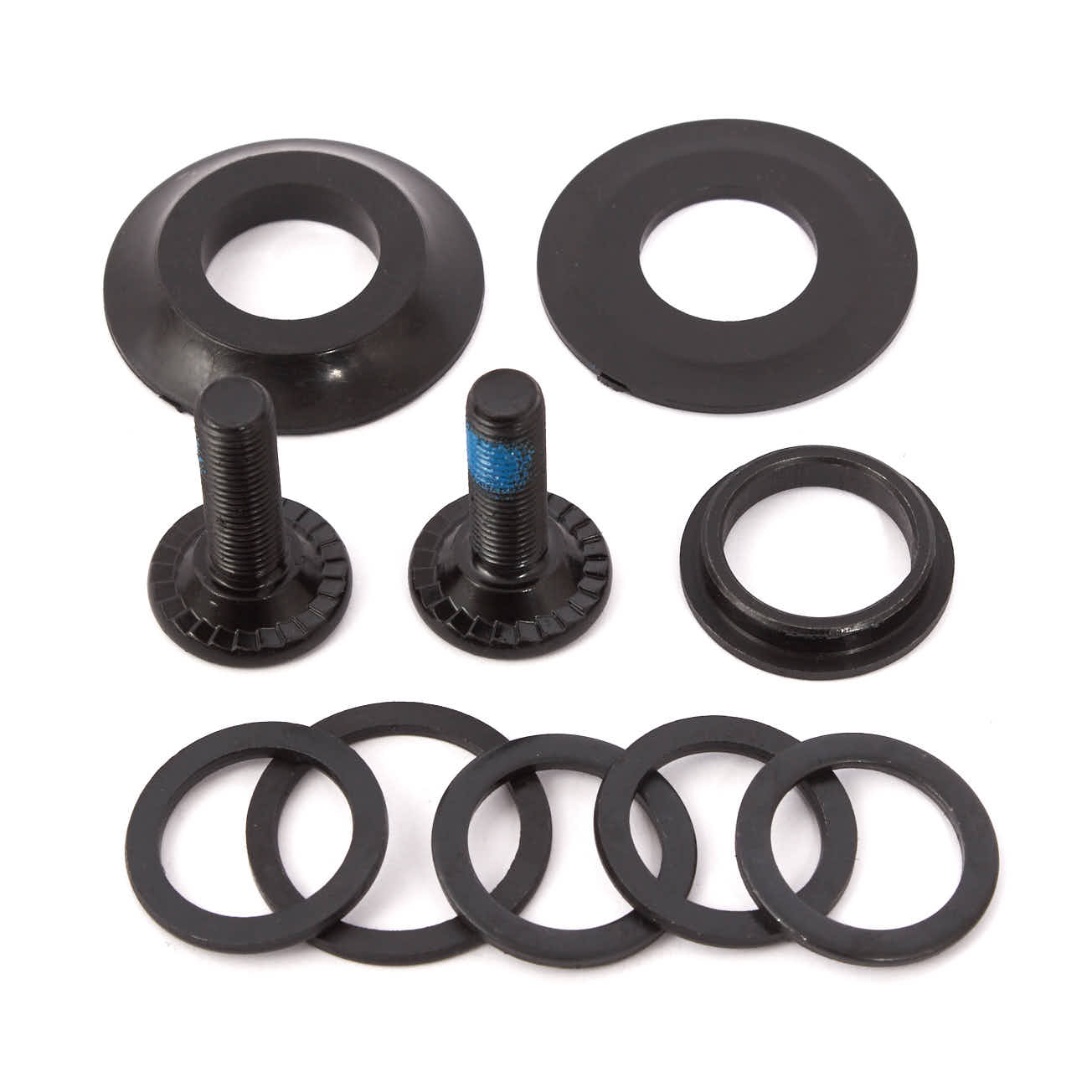

  • Including: adapter for Ø0.94" (24mm) chainrings
  • Material: 4130 CrMo
  • Bearing outer diameter: 1.61" (41mm)
  • Bearings: industrial / ball bearings
  • Including spacers
  • Sealed bearings with protective covers
  • Axle length: 5.91" (150mm)
  • For frame shell widths of 2.91" (74mm)
  • Bearing cups made of 7005 aluminium
  • Weight: only 1.09 lbs (495g)
  • Colour: black
  • Top product from KHE!
Bottom bracket: MID BB
Material: 4130 CrMo
Colour: Black, Chrome
Weight: 1.09 lbs / 495g
Axis length: 0.75" / 19mm
Length: 5.91" / 150mm
Teeth: 8T
Product Safety Instructions for BMX Bottom Bracket Set KHE MID BB 8T:

Ensure Compatibility: This bottom bracket set is exclusively intended for use on BMX bicycles. Only use it on bicycles compatible with a three-piece BMX crank.

Installation: Clean the bottom bracket shell and lightly grease the bearings. Carefully insert the bottom bracket into the shell, ensuring it is correctly seated. Tighten the bottom bracket evenly and check its function with a short test ride.

Care and Maintenance: Regularly grease the bearings to ensure smooth operation. Inspect periodically for rust and damage.

Replacement in Case of Wear: Replace the bottom bracket immediately if wear, uneven abrasion, cracks, or damage are detected.
