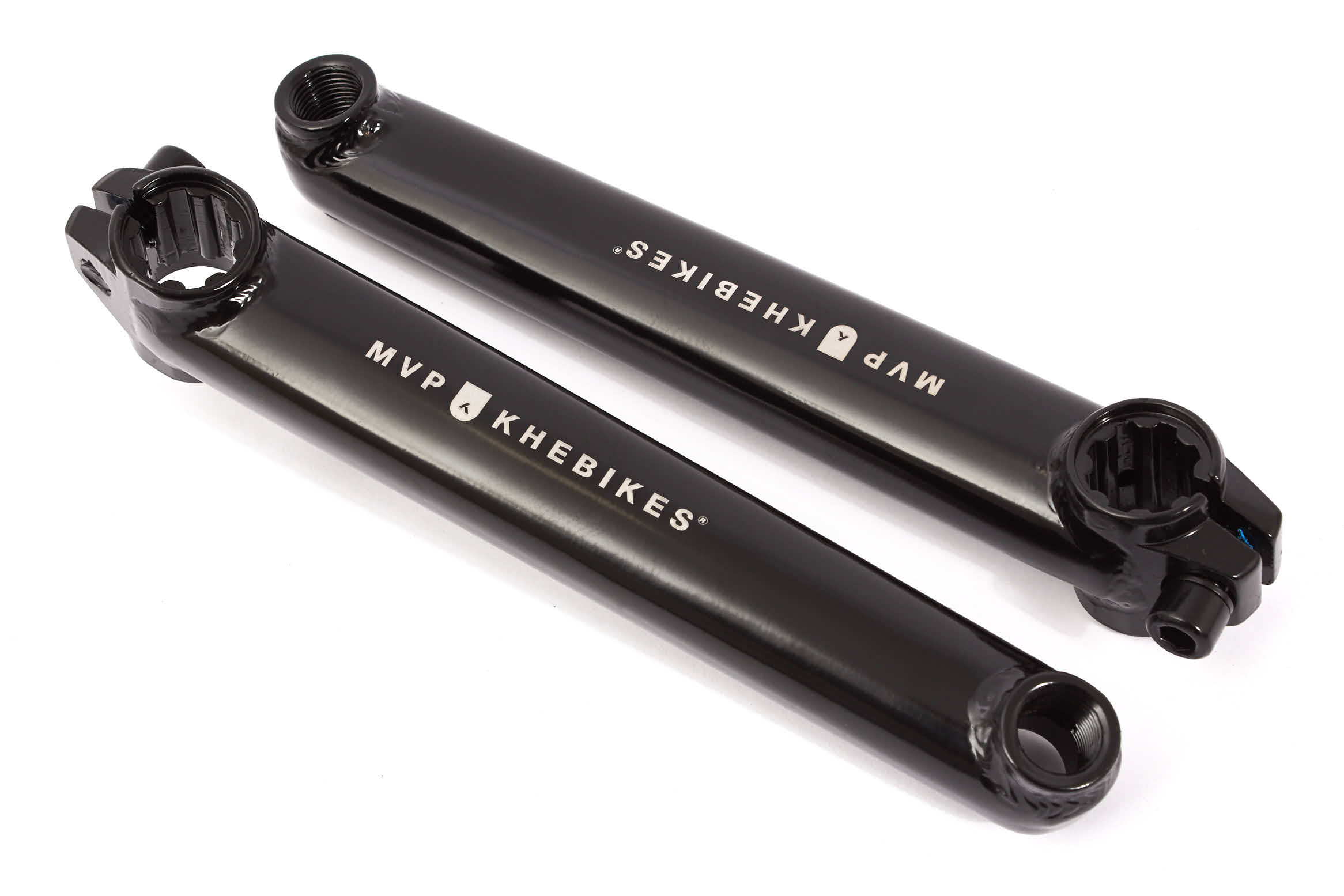

High-end welded CrMo steel crankarms from the MVP series, which are 170mm long and fit to our 8 teeth 19mm axle.
- KHE MVP crankarms
- Delivery: 2 crankarms

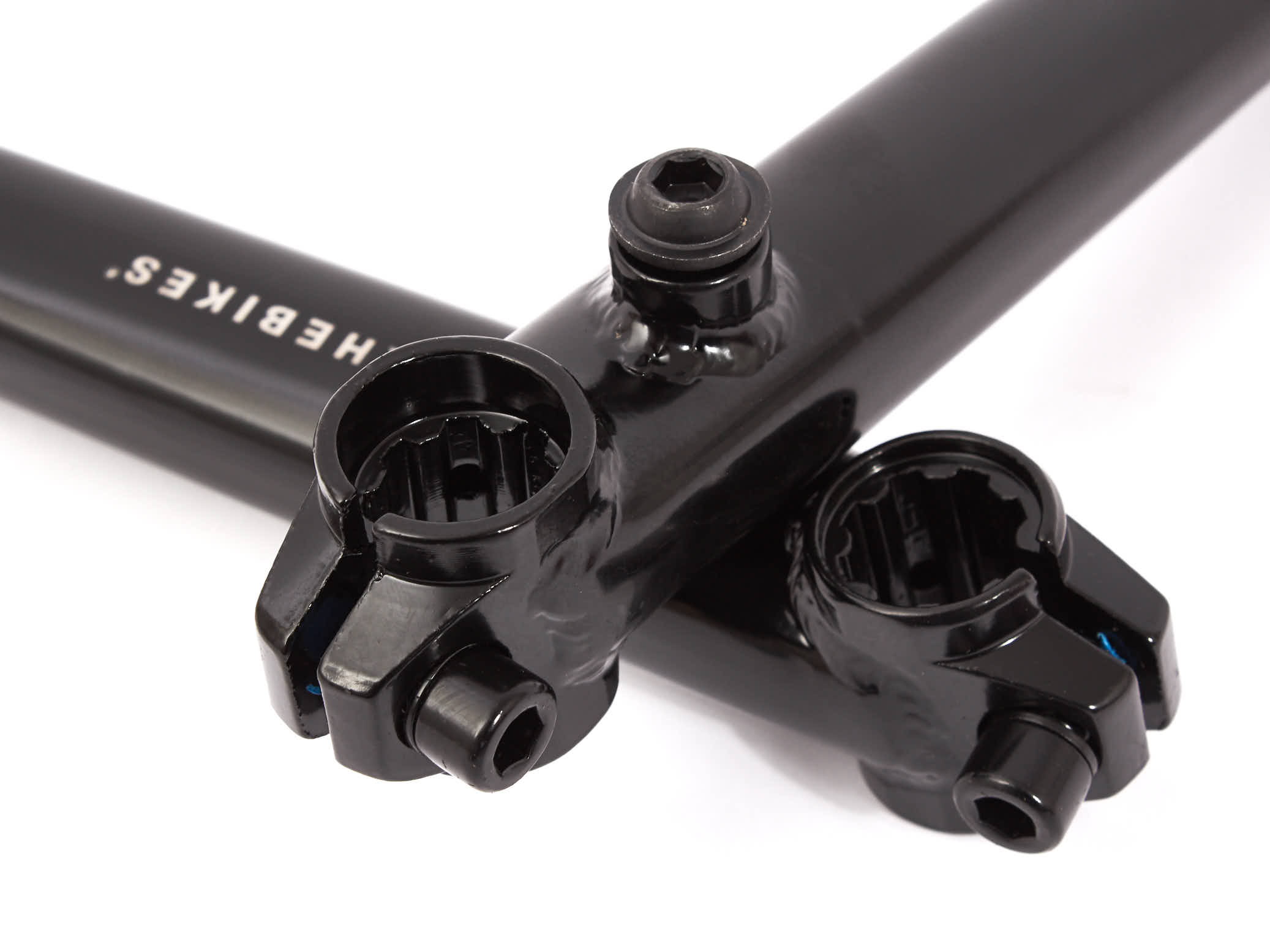

- For 19mm axles, 8T
- For 9/16" pedals
| Axle diameter: | 0.75 " / 19mm |
|---|---|
| Colour: | Black |
| Length: | 6.69" / 170mm |
| Material: | 4130 CrMo |
| Size: | for 9/16" pedals |
| Teeth: | 8T |
| Weight: | 1.47 lbs / 665g |
Ensure Compatibility:
These crank arms are exclusively designed for use on BMX bikes.
Only use them on bicycles compatible with a three-piece BMX crankset.
Installation: Thoroughly clean the bottom bracket shell and insert the bearings with a bit of grease. Insert the crank axle through the bearings, attach the chainring using the provided bolts, and tighten them evenly. Finally, remove excess grease, check the crank for free movement, and test the functionality with a short ride.
Care and Maintenance:
Regularly clean the crankset and grease the bearings as needed. Check bolts and bearings for tightness and wear.
Replace When Worn: Replace the crank immediately if it shows signs of wear, uneven usage, cracks, or damage.
