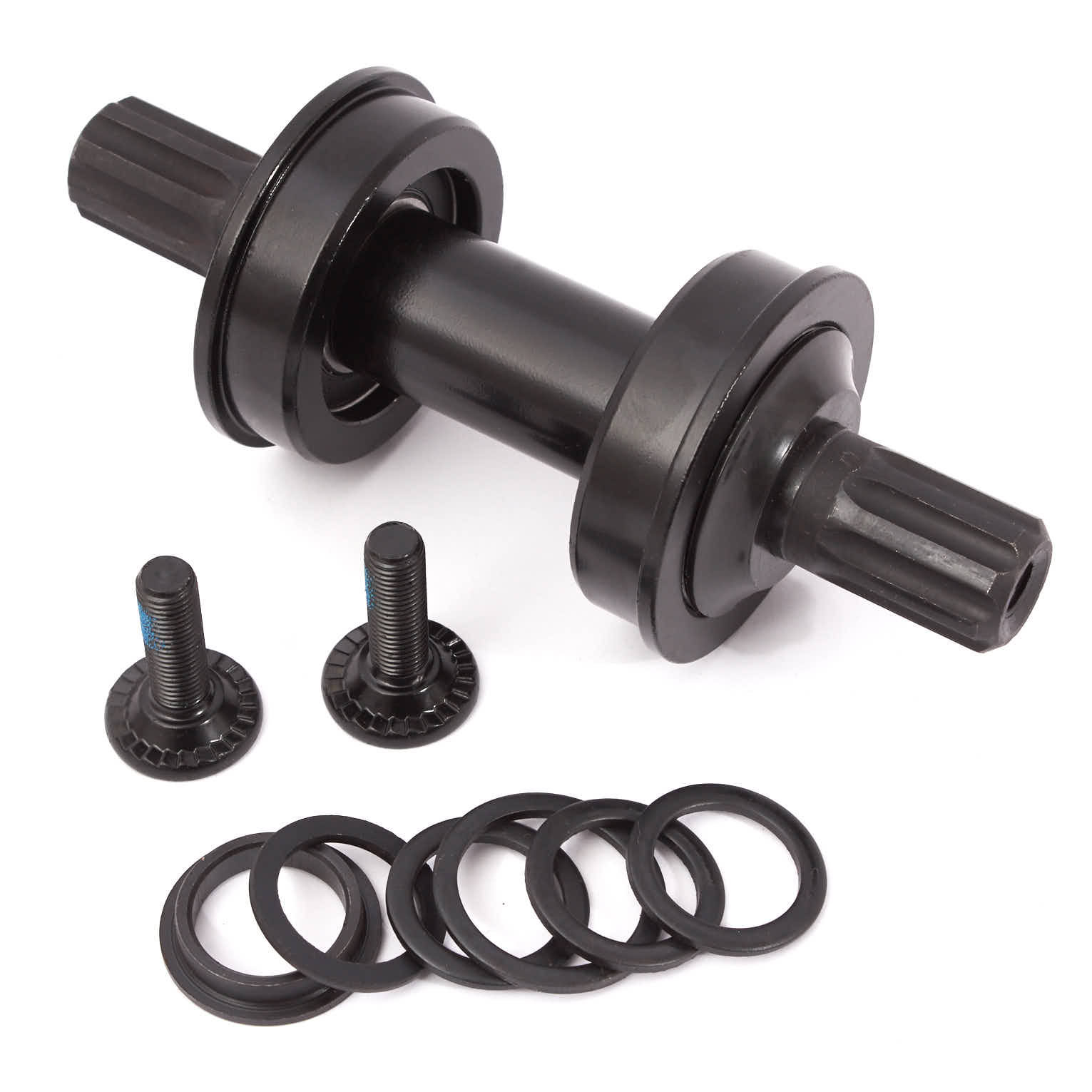

High-quality KHE bottom bracket set with a strong 19mm (0.75") 8T CrMo axle and smooth-running US BB industrial bearings.

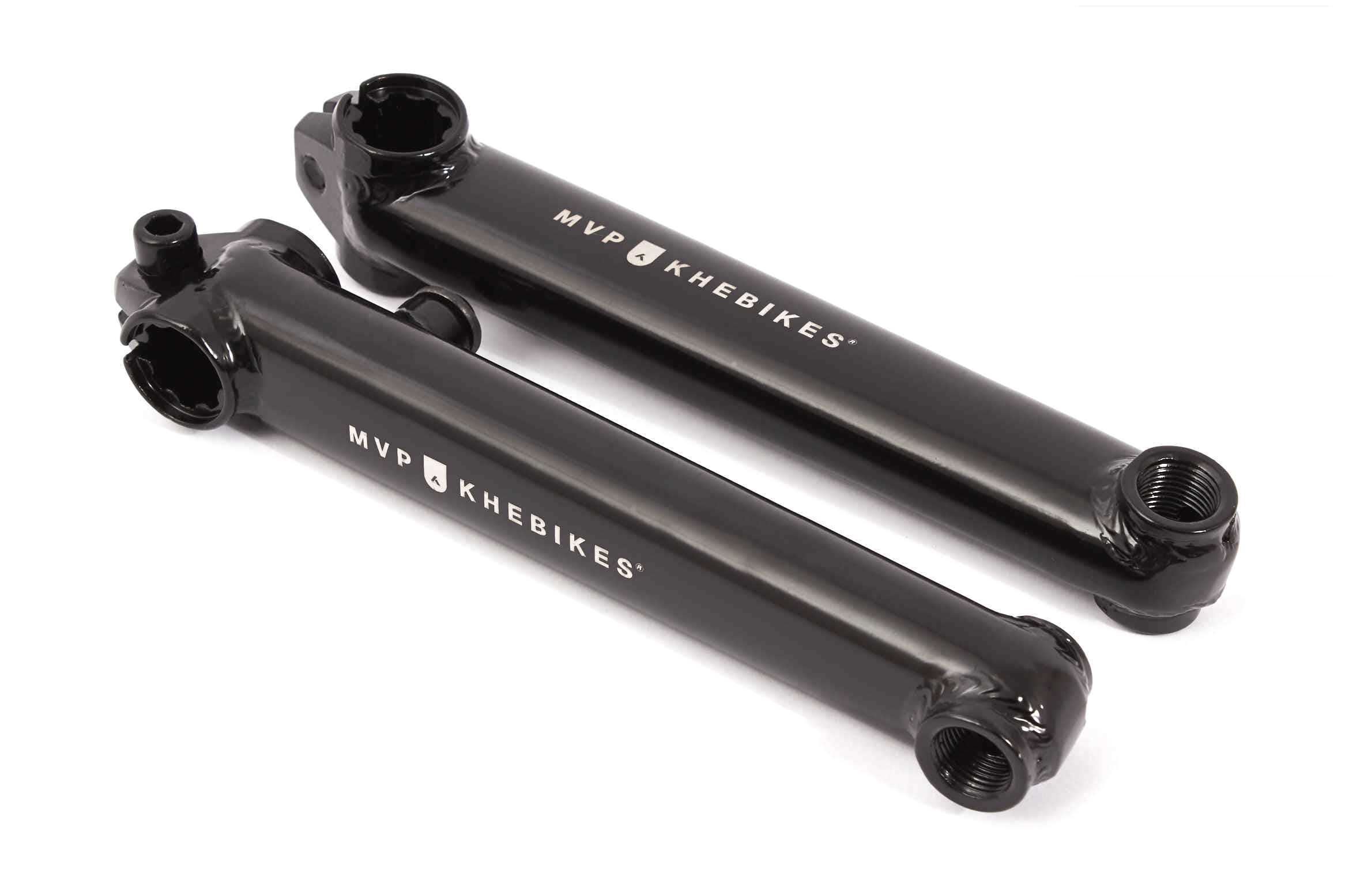

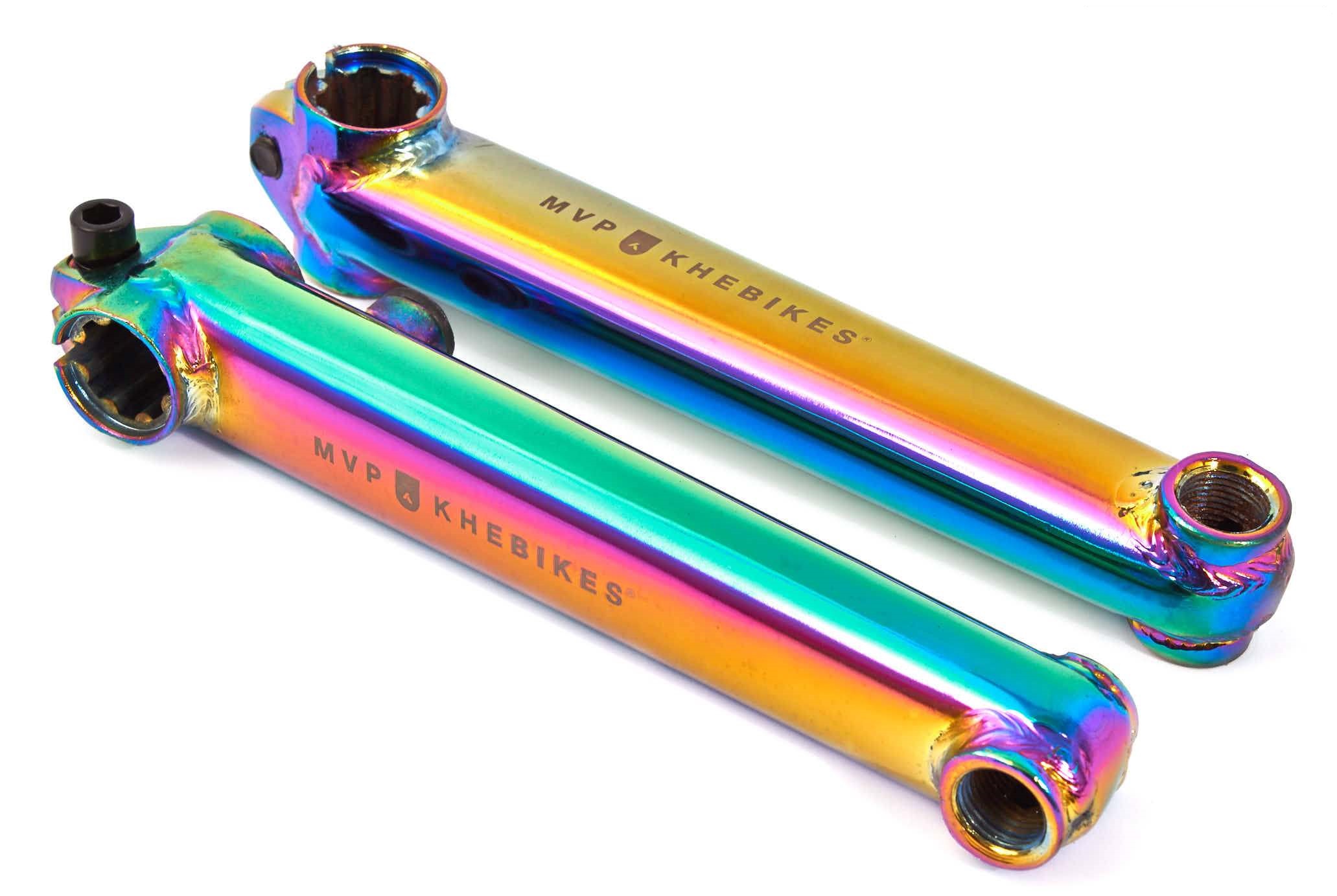

Matching 8T crank arms in black or oil slick are available in our shop.
At a glance:
- Brand: KHE
- 8 Teeth (8T)

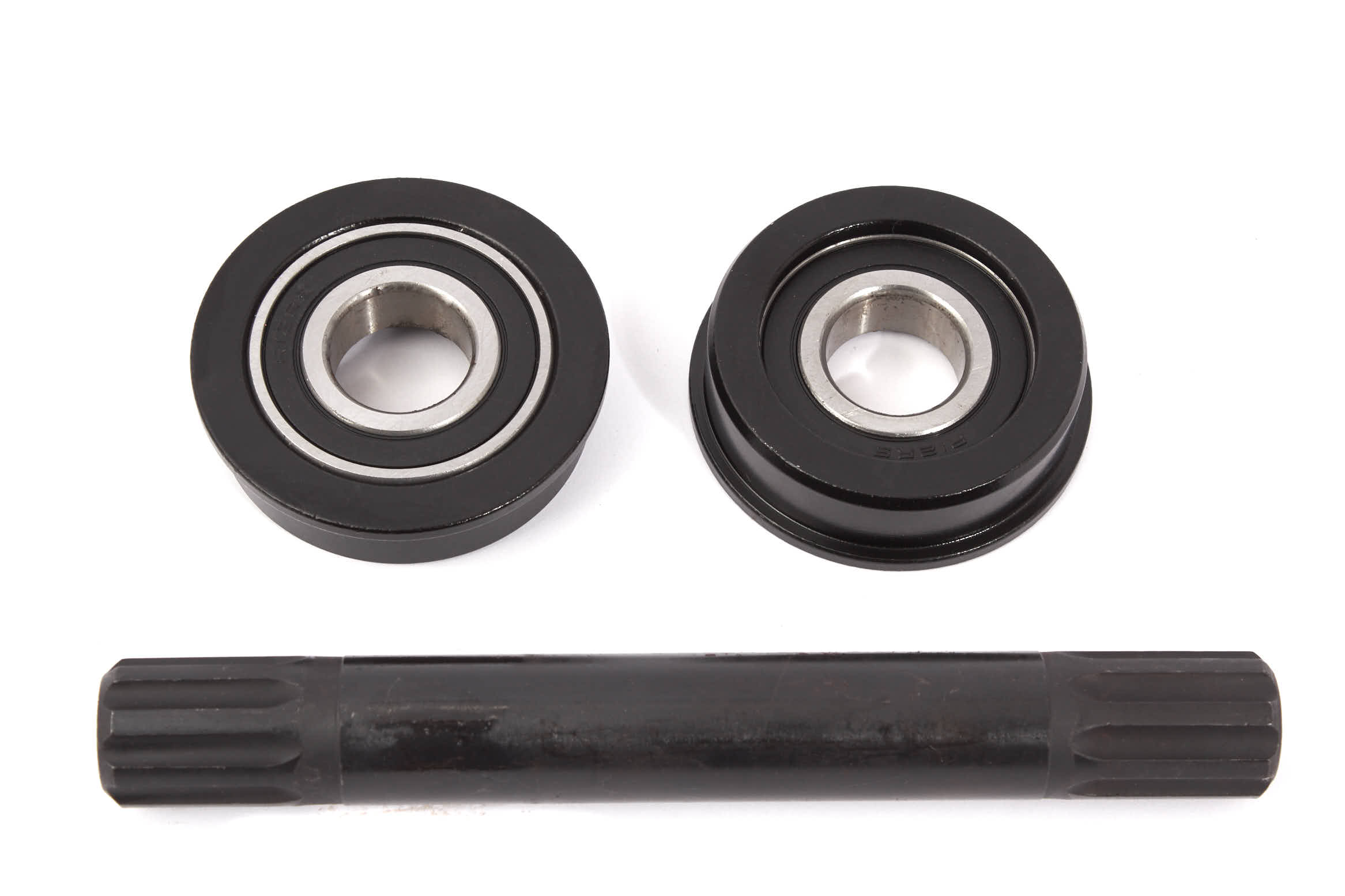

- 19mm (0.75") 4130 CrMo axle, incl. adapter for Ø 24mm (0.94") chainrings
- Aluminium shells: 51.6mm (2.03") (frame size)
- Axle length: 150mm (5.9")
- Bearings: Industrial / deep groove ball bearings

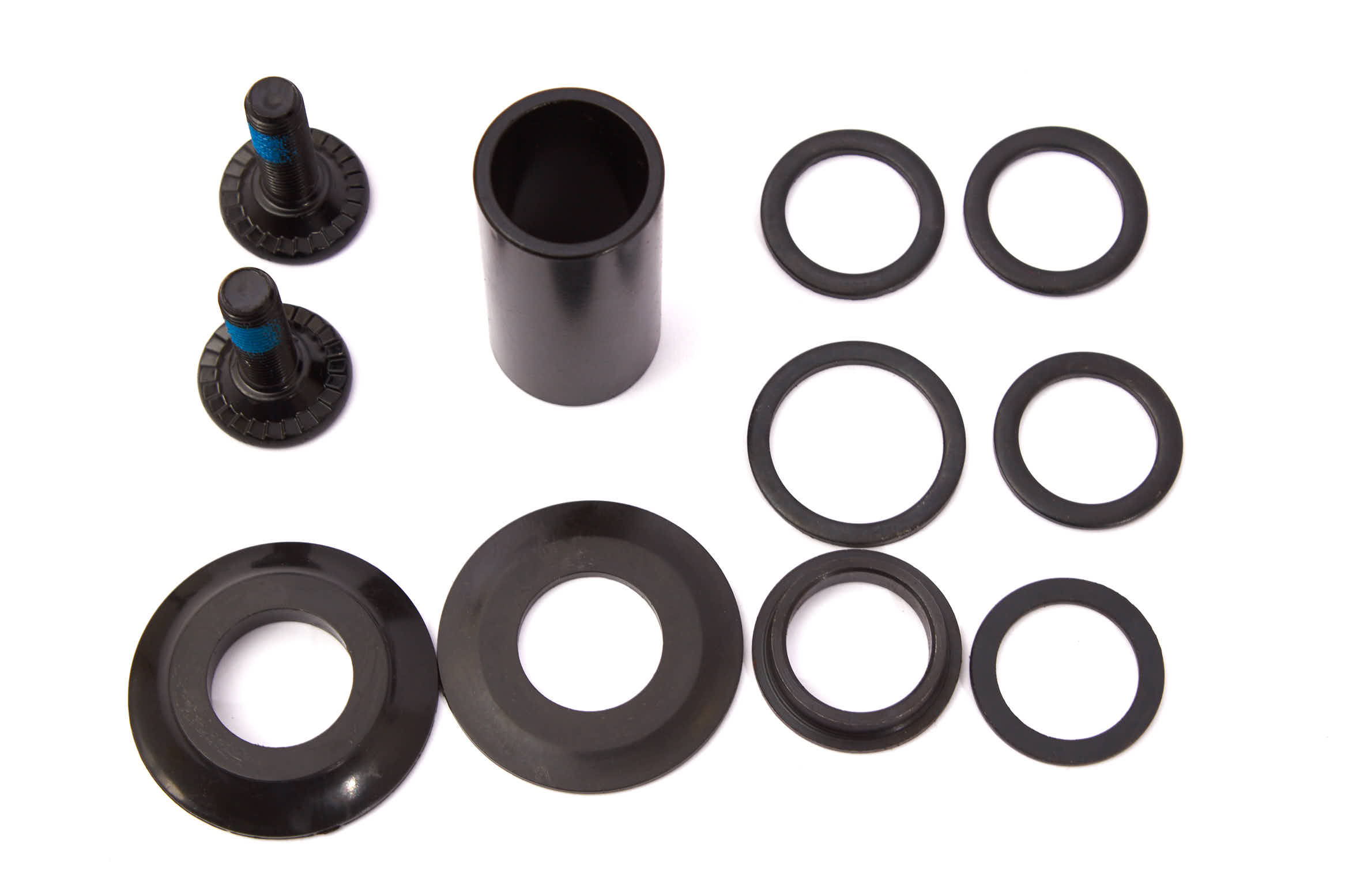

- Including spacers
- Total weight: only 564g (1.24 lbs)!
- For frame shell width of 68mm (2.68")
- Bearing shells made of 7005 aluminium
- Colour: black
- Top product from KHE!
| Bottom bracket: | US-BB; S/B |
|---|---|
| Material: | 4130 CrMo |
| Colour: | Black |
| Weight: | 1.24 lbs / 564g |
| Axis length: | 0.75" / 19mm |
| Length: | 5.91" / 150mm |
| Teeth: | 8T |
Ensure Compatibility:
This bottom bracket set is exclusively intended for use on BMX bicycles.
Only use it on bicycles compatible with a three-piece BMX crank.
Installation: Clean the bottom bracket shell and lightly grease the bearings. Carefully insert the bottom bracket into the shell, ensuring it is correctly seated. Tighten the bottom bracket evenly and check its function with a short test ride.
Care and Maintenance:
Regularly grease the bearings to ensure smooth operation.
Inspect periodically for rust and damage.
Replacement in Case of Wear: Replace the bottom bracket immediately if wear, uneven abrasion, cracks, or damage are detected.
