$89.95*
% $136.71* (34.2% saved)Available, delivery time: 5-10 business days **

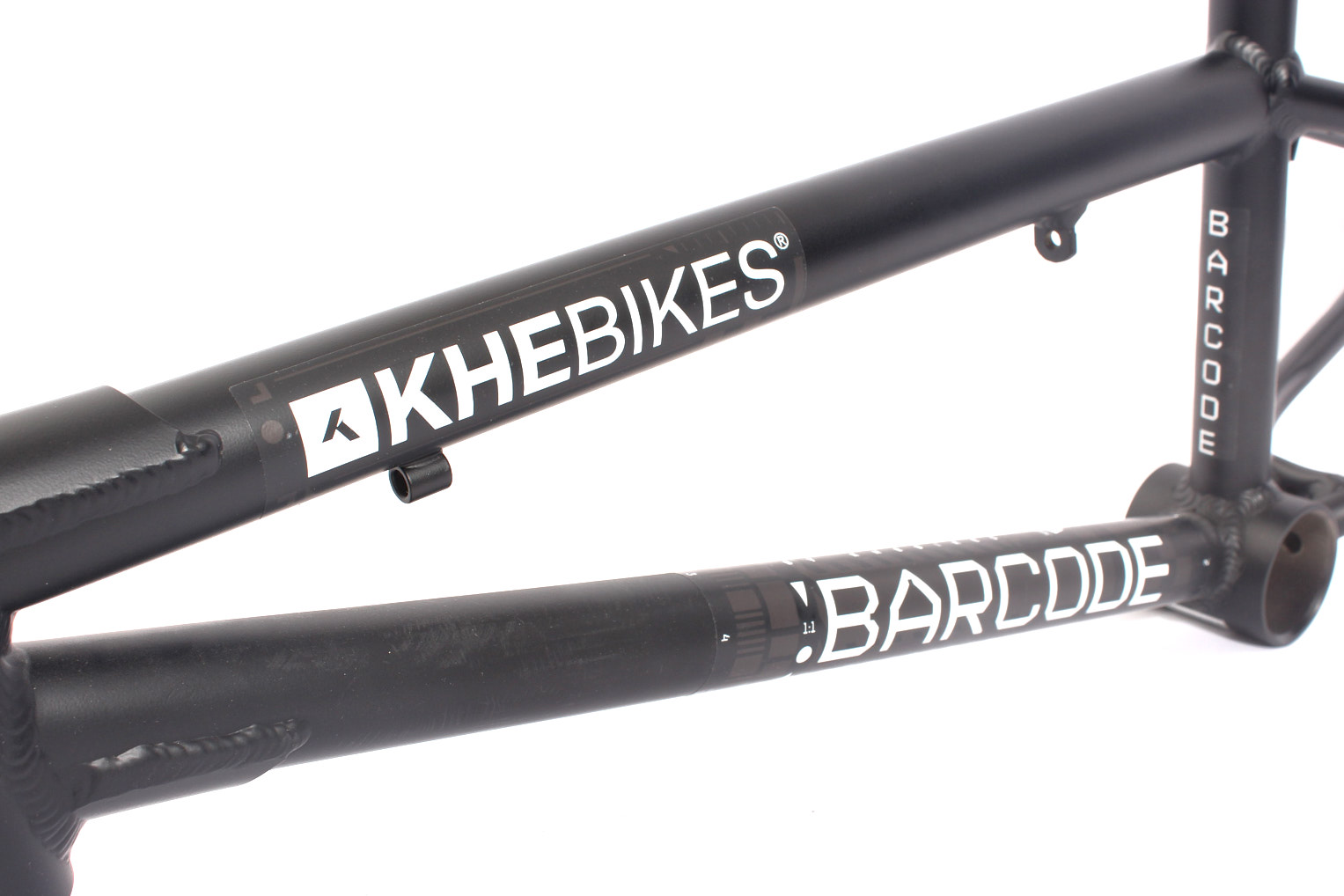

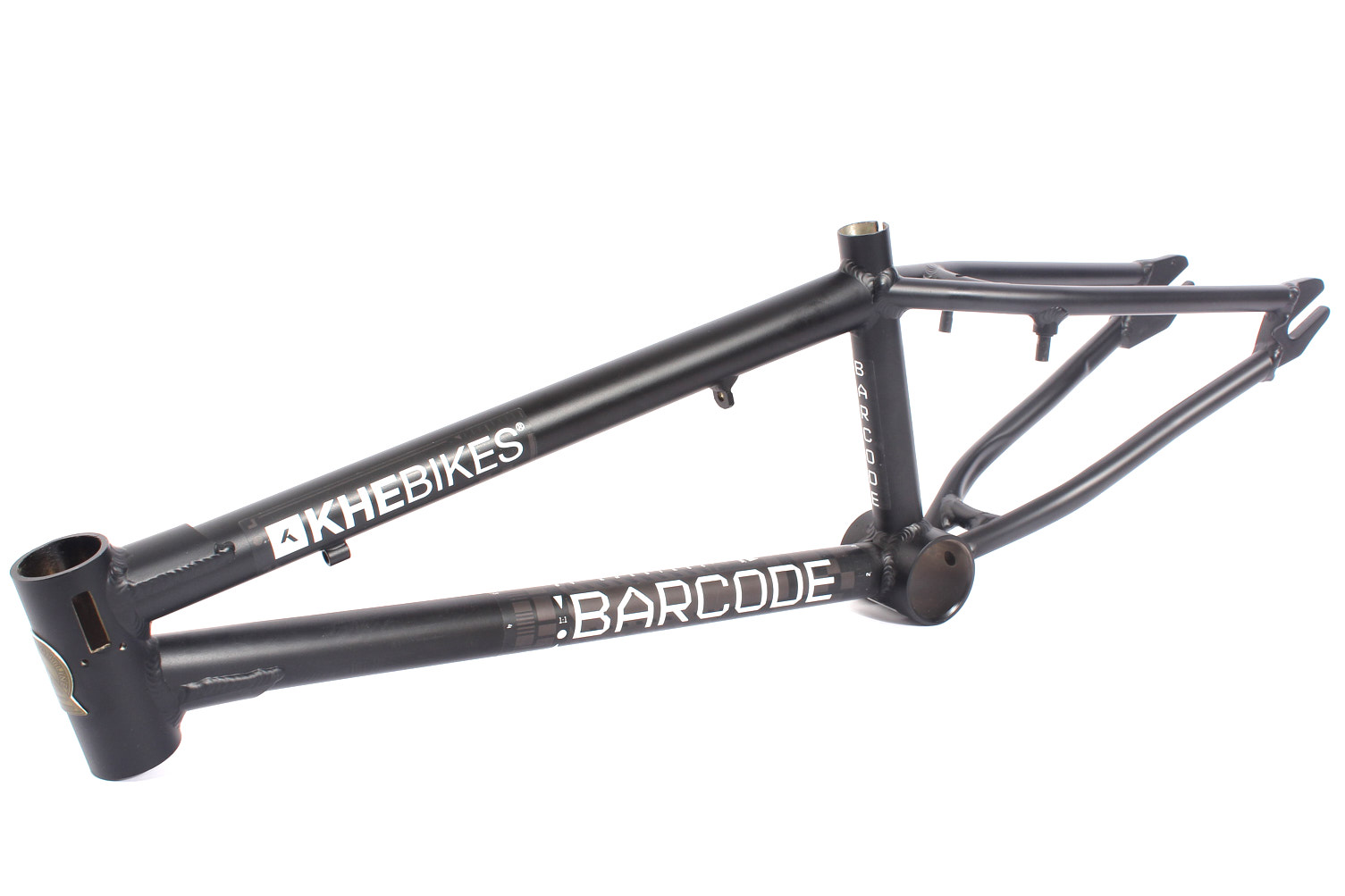

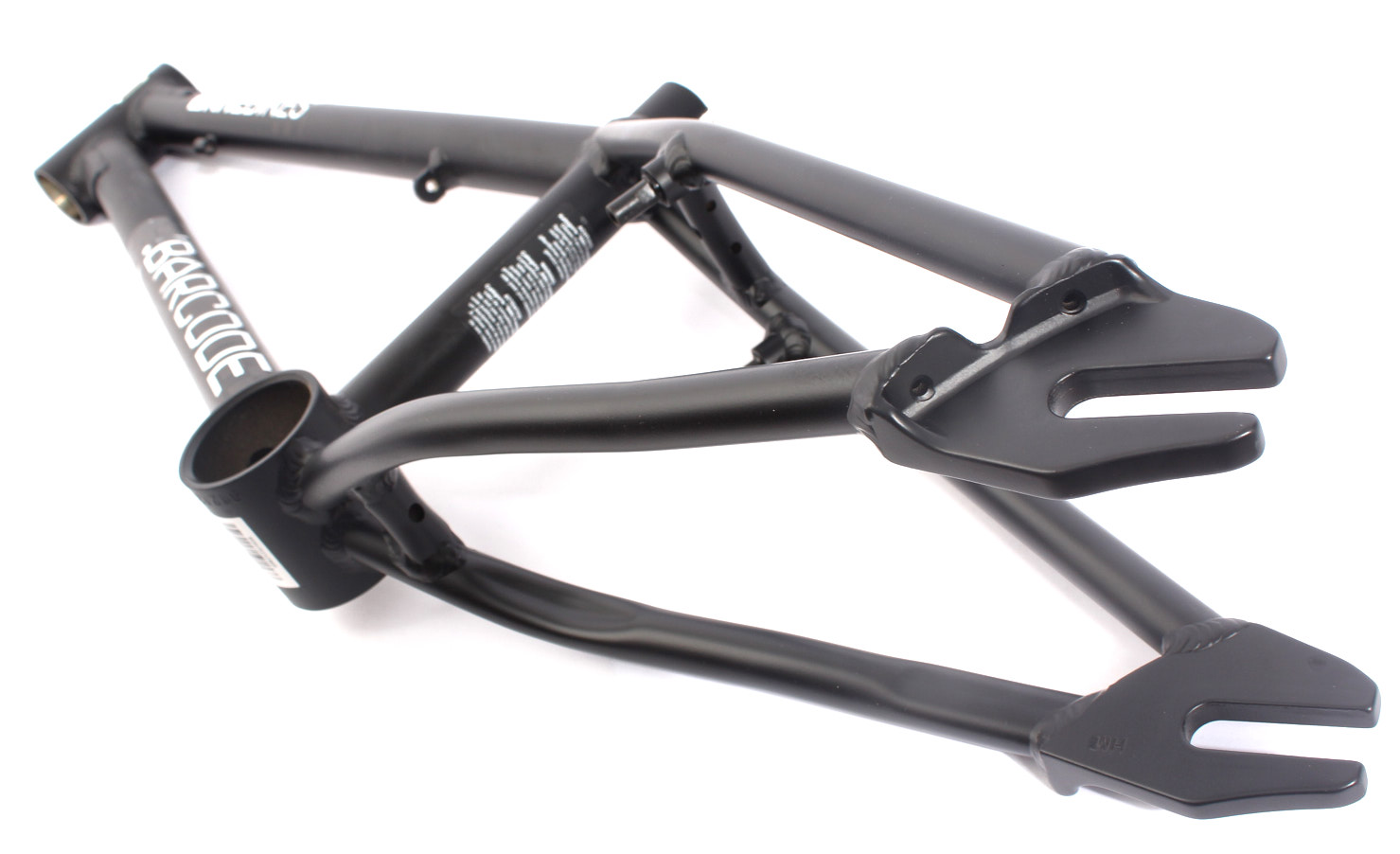

KHE BARCODE Aluminium Frame

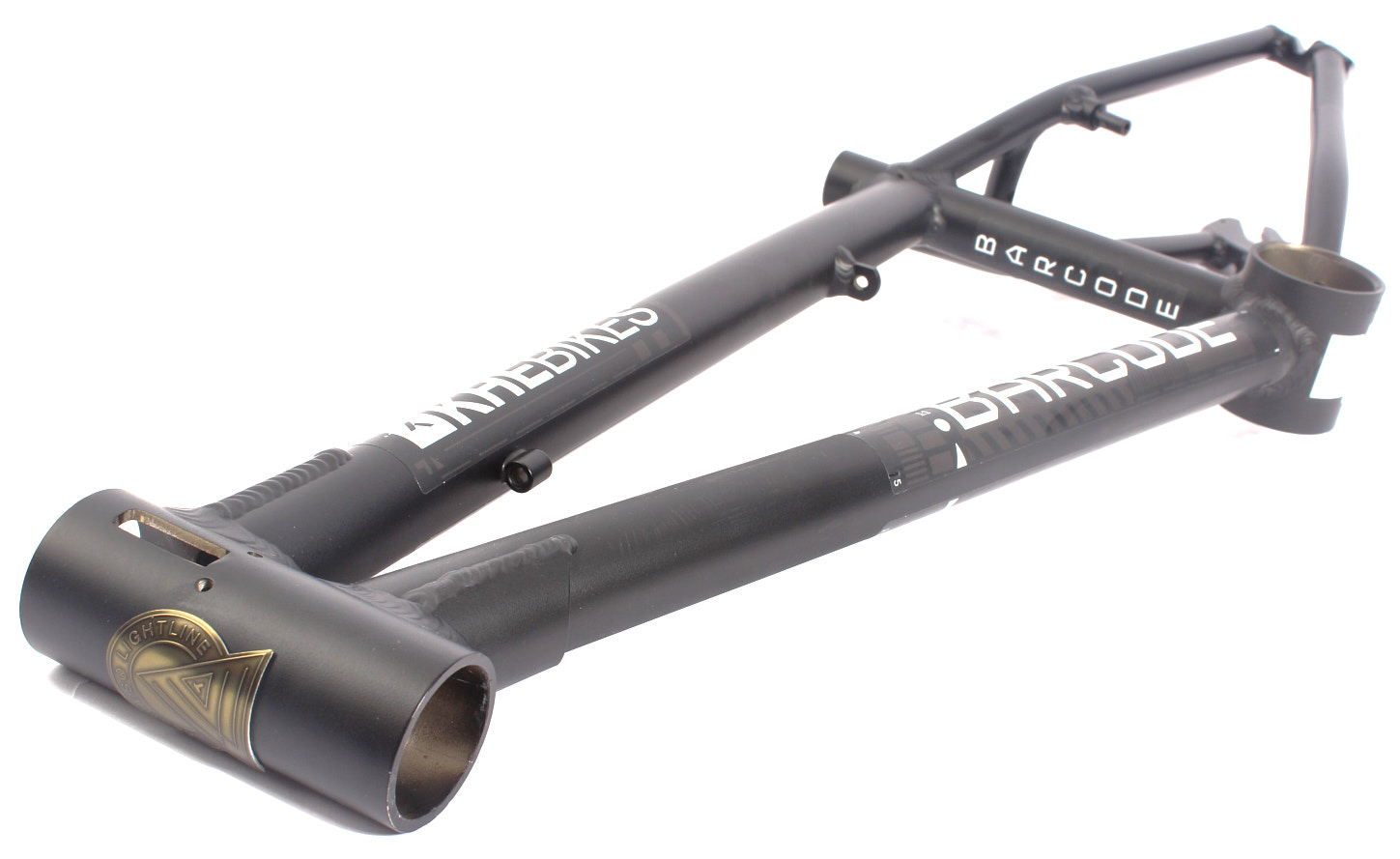

The original Barcode frame weighs only 1,390g (≈ 3.06 lbs), making it extremely lightweight! If you're looking to build a super light BMX, this is the perfect choice. Ideal for pump track, park or BMX racing. It is also AFFIX ready, so an Affix rotor can be installed.
Specifications at a glance:
- Brand: KHE
- Colour: Matt Black
- Material: 7005 aluminium
- Top tube length: 495mm (19.5")
- Rear centre (RC): 346mm
- Seat tube angle (ST): 71 degrees
- Head tube angle (HT): 75 degrees

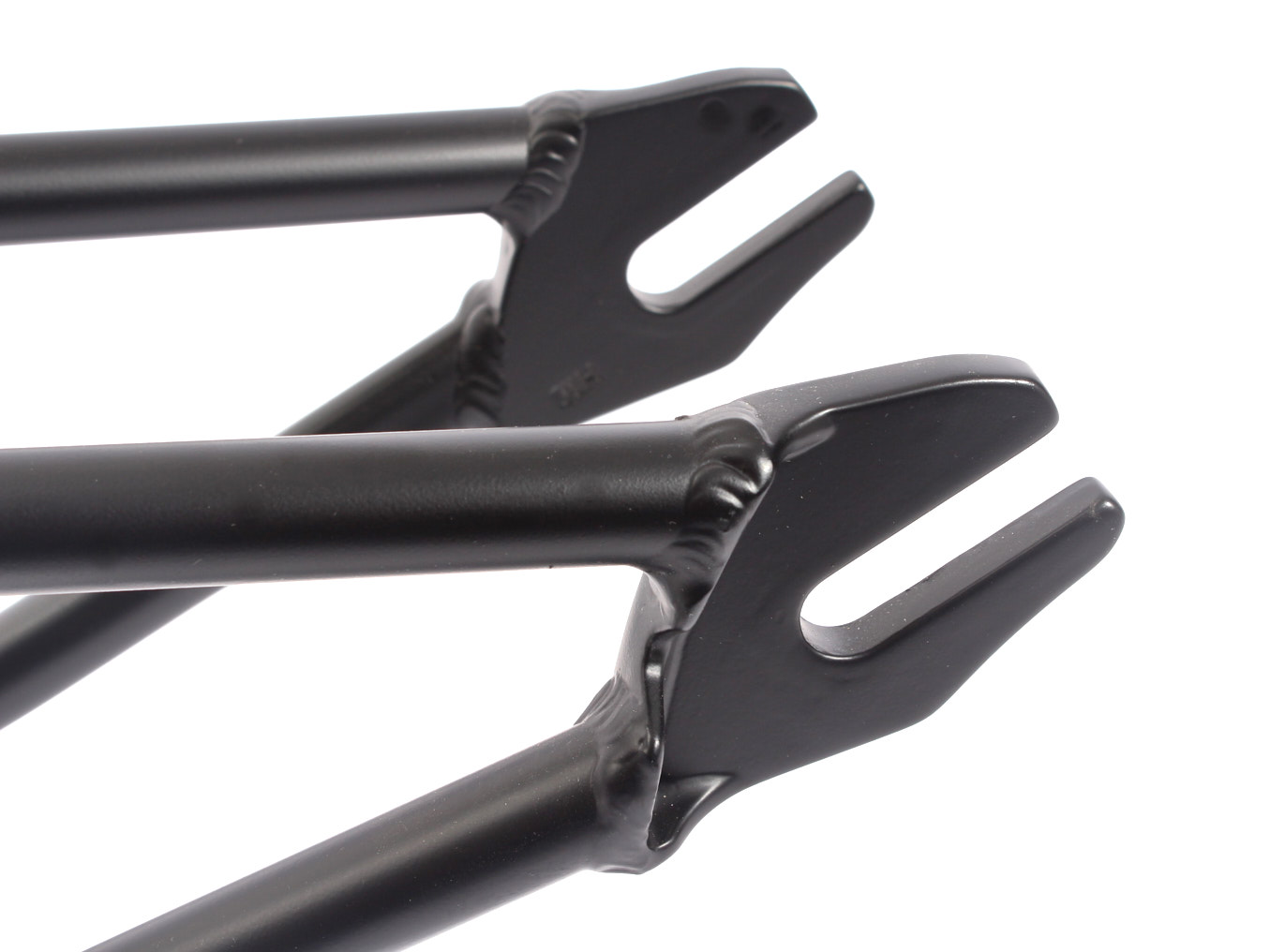

- Dropouts: 14mm (also suitable for 3/8" / 10mm axles with adapter Art. B-003, not included)
- Weight: only 1,390g ≈ 3.06 lbs
- Bottom bracket: US BB
- Headset: Affix Art. M390209 (not included)
| Bottom bracket: | US-BB Loose Ball |
|---|---|
| Material: | 7005 Aluminum |
| Tire size: | 20 inch |
| Colour: | Black |
| Weight: | 3.06 lbs / 1390g, 4.66 oz / 132 g |
| Dropouts: | 0.55" / 14mm |
| Width: | 10.83" / 27,5 cm |
| Rear stay length (RC): | 13.62" / 346mm |
| Height: | 11.02" / 28cm |
| Length: | 19.49" / 495mm |
| Seat tube angle (ST) : | 71° |
| Head tube angle (HT): | 75° |
Product Safety Instructions for BMX Frame KHE BARCODE 20 Inch Aluminum:
Appropriate Use: This aluminum frame is ideal for light tricks, moderate jumps, and technical freestyle riding on the street and in the park.
Suitable Frame Size: The frame is suitable for riders with a height of 140 cm to 170 cm and a maximum body weight of 70 kg.
Fork Compatibility: Use only 20-inch forks that are compatible with this BMX frame.
Regular Inspection: Regularly check the welds and connections for cracks or weaknesses, especially in high-stress areas such as the head tube and bottom bracket. Perform safety checks on the entire frame and replace it immediately if any visible damage or cracks are found.
Avoid Contact with Chemicals: Contact with aggressive cleaning agents or salts can damage the aluminum frame's surface. Use only mild, frame-safe cleaning agents and rinse the frame thoroughly if it has come into contact with salty water (e.g., in winter).
